2025 Diamond C 35'(30'+5') Heavy Duty Flatbed Equipment Trailer - S1302822

Loading Style - Max Ramps

Length/Width - 35' x 102" MR

GVWR - 25,900 lb

Dove - 60" Dovetail with 2" x 2" x 1/8" Angle Cleats (Max Ramps)

Axles - 2 - 12,000 lb Heavy Duty, Oil Bath

Brakes - Electric-Over-Hydraulic Disc Brakes

Suspension - Hutch Heavy Duty Adjustable Suspension

Spread Axle - Add Spread Axle

Spread Axle - 60" Spread Axle

Pull Type - 12" Engineered Gooseneck

Frame - 16" Engineered Beam 2.0

Jack - 2 - 20,000 lb Hydraulic Jacks

Paint Type - DM Difference Maker Coating System

Paint Color - Arctic White

Floor - 2" Treated Lumber

Cross-Members - 3" I-Beam on 12" Centers w/ Formed Gussets

Coupler - 2-5/16" Ball - 30,000 lb Square Load Leveler

Storage - Diamond Plate Neck Box w/ Gas Shock Assisted Lid

Storage - Neck Storage Box in Winch Tray

Deck on the Neck - None

Winch - Winch Tray

Battery/Charger - Solar Charging System, 7 watt

Lace Rail - 6" Channel Lace Rail

Lights - All LED Lights

Lights - Extra 3/4" Clearance Lights6

Lights - Flashing Caution LED Light on Rear

Stake Pockets - 2" x 3/8" Rub Rail w/ Stake Pockets & Pipe Spools

Slide Track & Ratchets - Full Length Slide Track (passenger side)

Steps - Front Retractable & Mid-Turn

Steps - Extra Retractable Steps (pair)

Sway Control - Standard on 30 - 44' model

Wiring - Sealed Wiring Harness

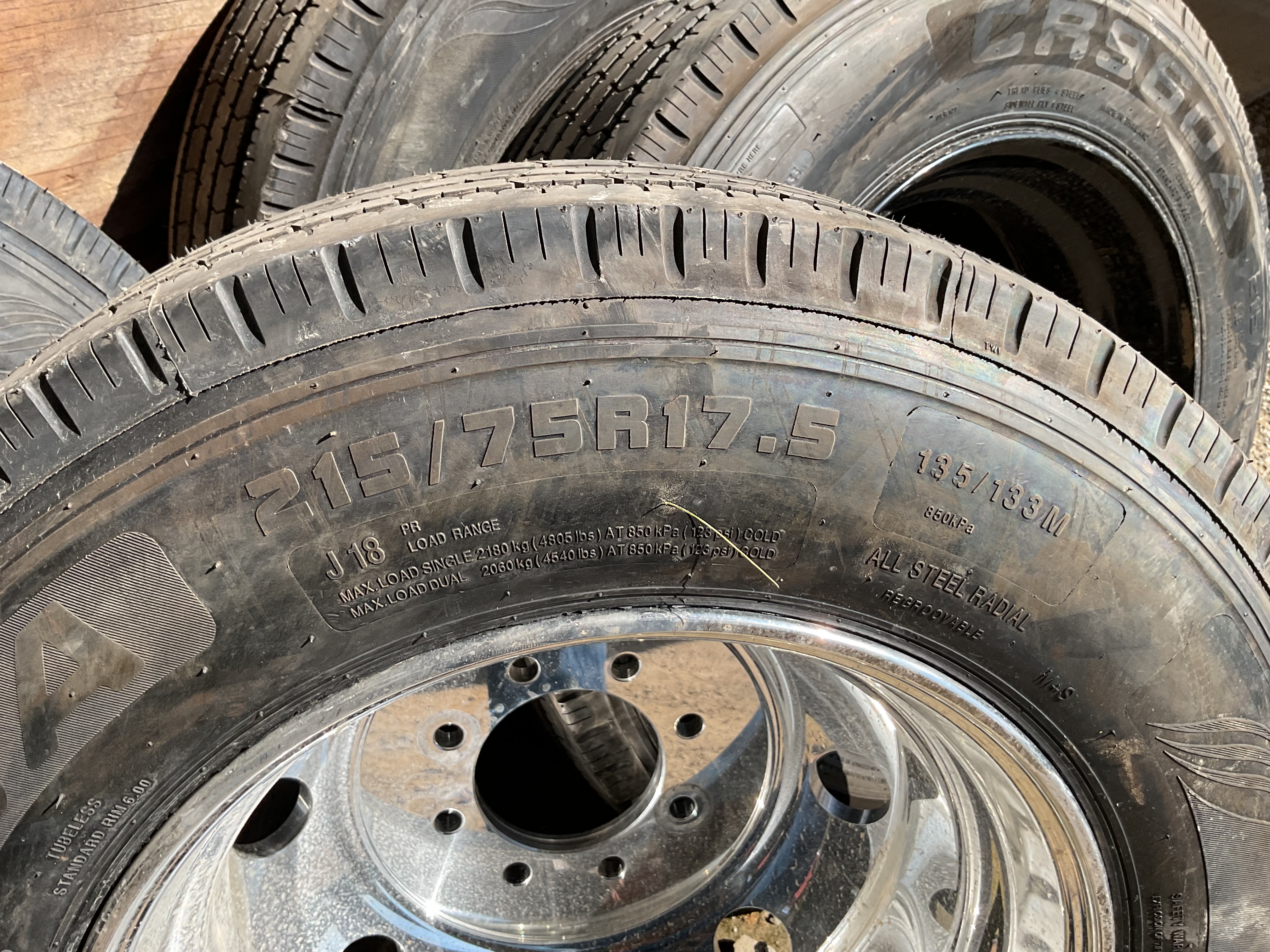

Tire Size - 215/75R17.5 18 Ply Radial, Dually

Wheel Color - Aluminum Outer Wheels

Spare Mount - Under-Frame Spare Mount

Spare Tire - Add Spare Tire For $455.00
