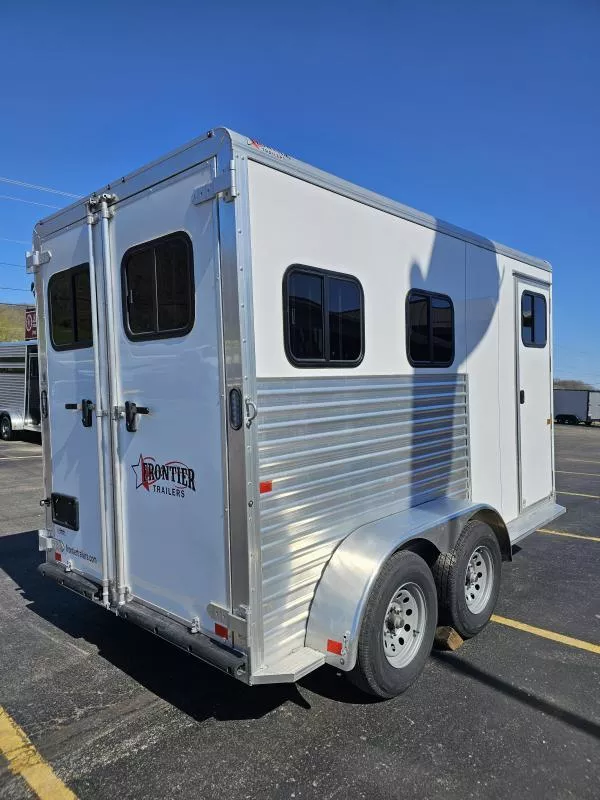

2025  Frontier Trailers  2 Horse (RUMBER FLOOR) Slant Load Horse Trailer  - SD023631

Box Length: 13'

Box Width: 80"

Interior Height: 84"

Stall Width: 40-1/2"

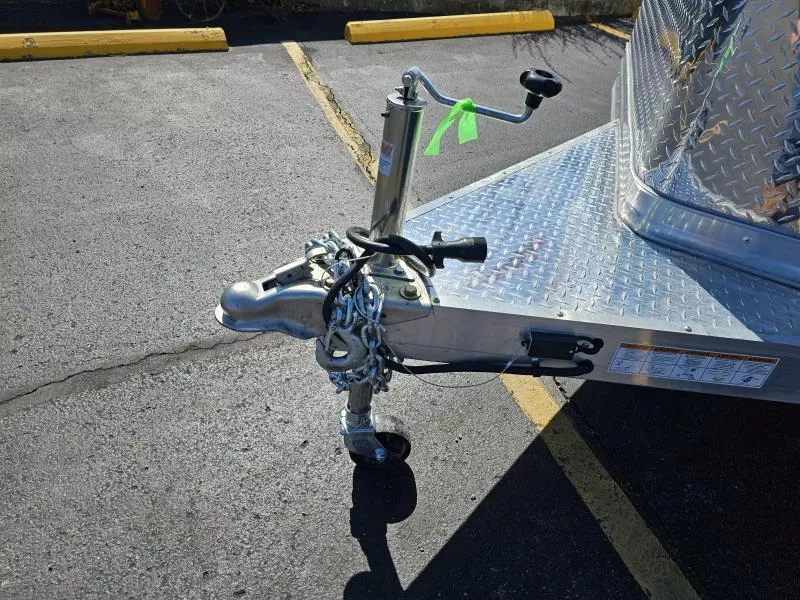

Bumper Pull, V-Nose, 24" Stone Guard

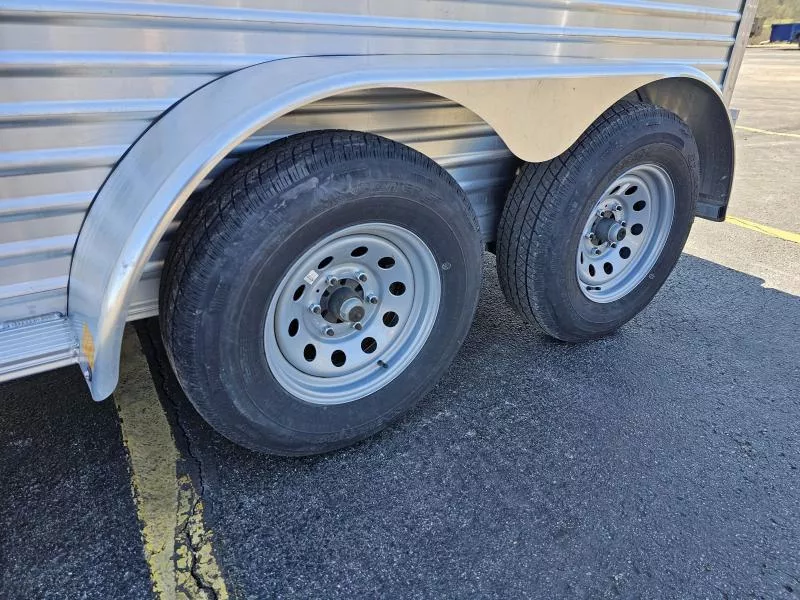

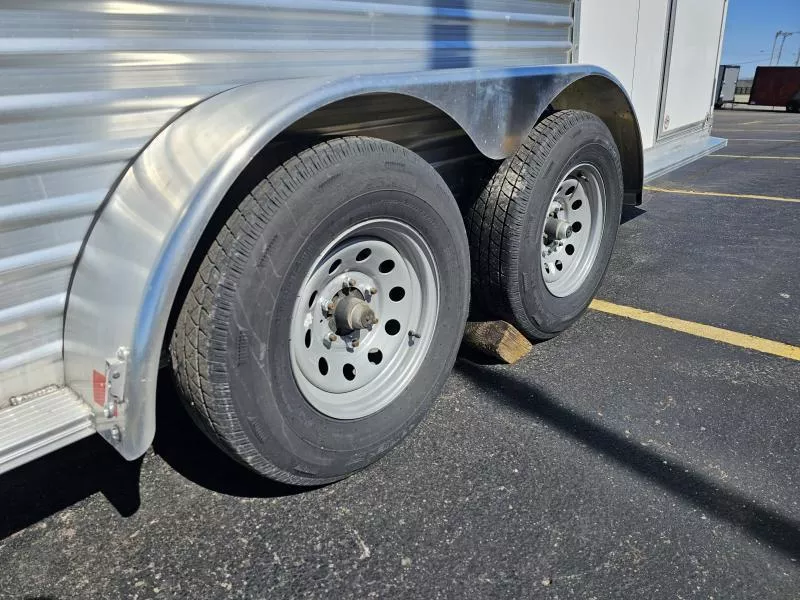

Axles: 2-3500k Dexter Torsion Braked Axles

Tires: 225/75R15 Silver Mods (6-Lug)

Rumber Flooring

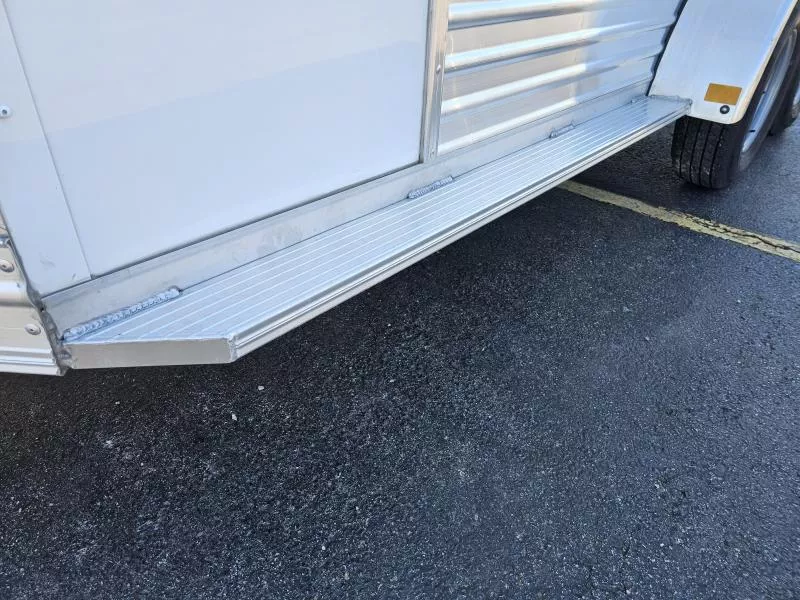

Full Length Running Boards

Heavy Duty Rear Step up Rubber Bumper

One Piece, .040 Aluminum Roof w/ Heavy Duty Radius

Roof Extrusion

Load Style: Slant Load - Step Up

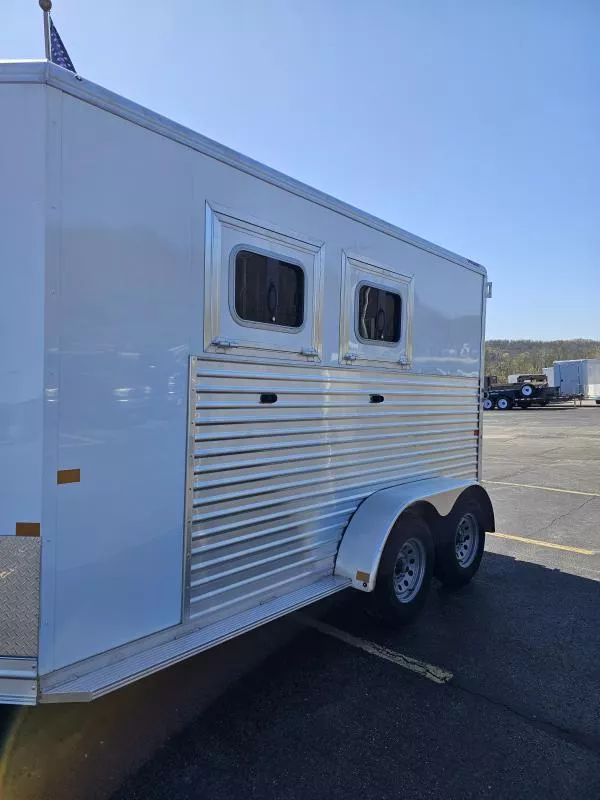

.040 Aluminum Skin: Pre-Painted Exterior Side Sheets (Top) w/48" Extruded Sides (Bottom)

"Improved" All Box Tube Aluminum Chassis

16" O/C - I-Beam Crossmembers

Exterior Light: LED

----------

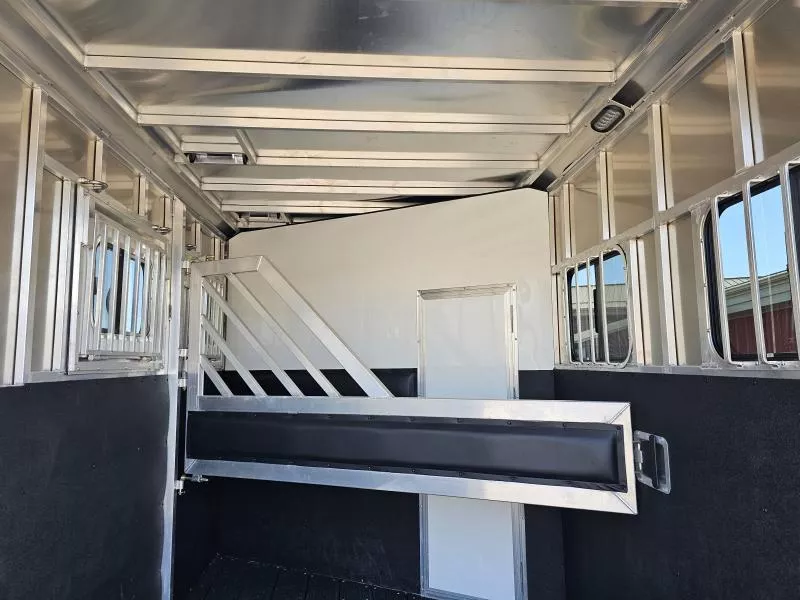

Dividers: Removable - "New" Jail Bar Head and Shoulder Divider

- w/ Pads (Custom Extrusion, New Latch System)

Feed Windows: 32" x 25" Square Drop Down Feed Windows

w/Integrated Face Bar (1 per stall)

18" x 24" Sliding Window on Rump Wall (1-per stall)

Floor Mats: 1/2" Rubber Mats

"Premium" Rubber Wall Liner w/.063 backer in Horse Area

Safety Chains: Across Rear Opening

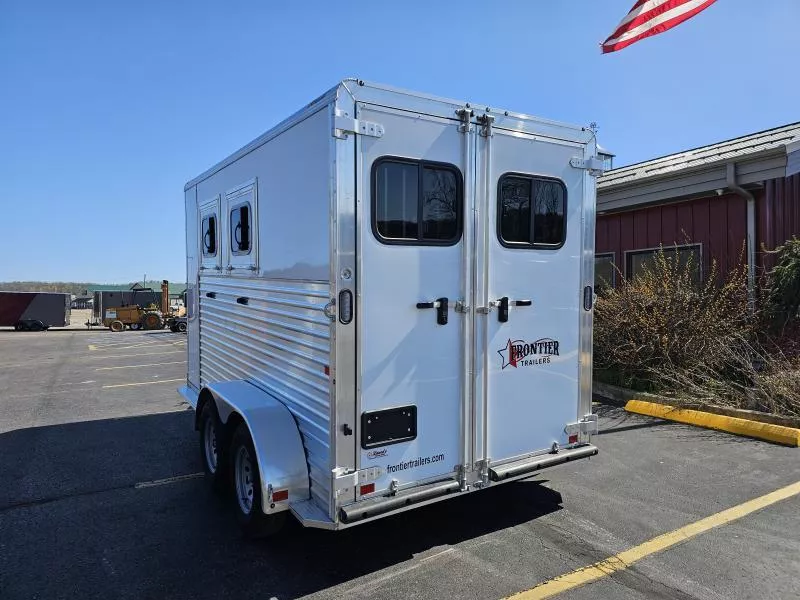

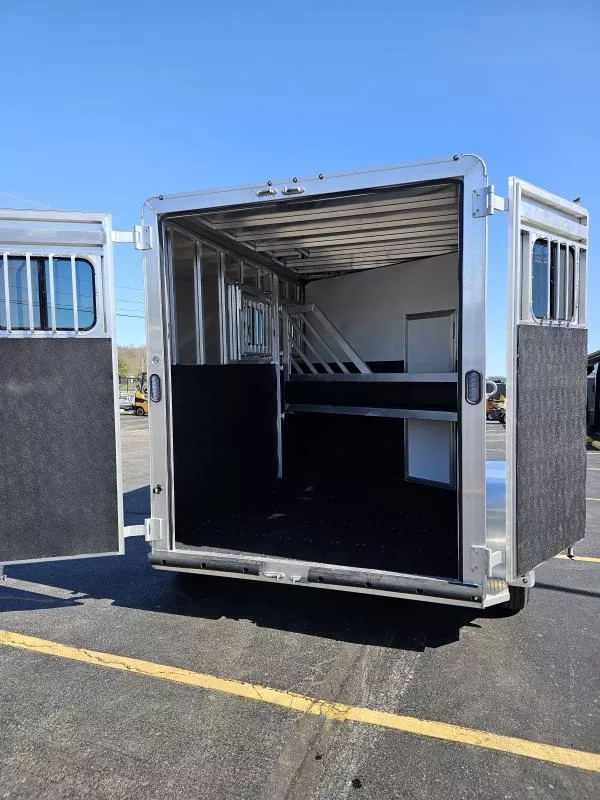

Rear Gate: 40/60 Double Rear Doors w/ (2) 18" x 24" Windows

w/ Premium Aluminum Hinges (installed with huck bolts) and Keyed Locking Hasp

Tie Rings: (2) Inside and (1) Outside per Horse

-Interior Location: On the Driver Side Wall just above the Windows

Interior Light: (1) LED Dome Light in Horse Area with Exterior Cup Switch

(1) Double Action Pop-Up Vent (per Stall)

----------

Front Tack Area:

32" x 72" Access Door w/Sliding Window, 24" Short-Wall

Floor Mats: 1/2" Rubber Mats

LED Dome Light w/ Wall Switch, Removeable Saddle Tree, Bridle Hooks,

Brush Tray
