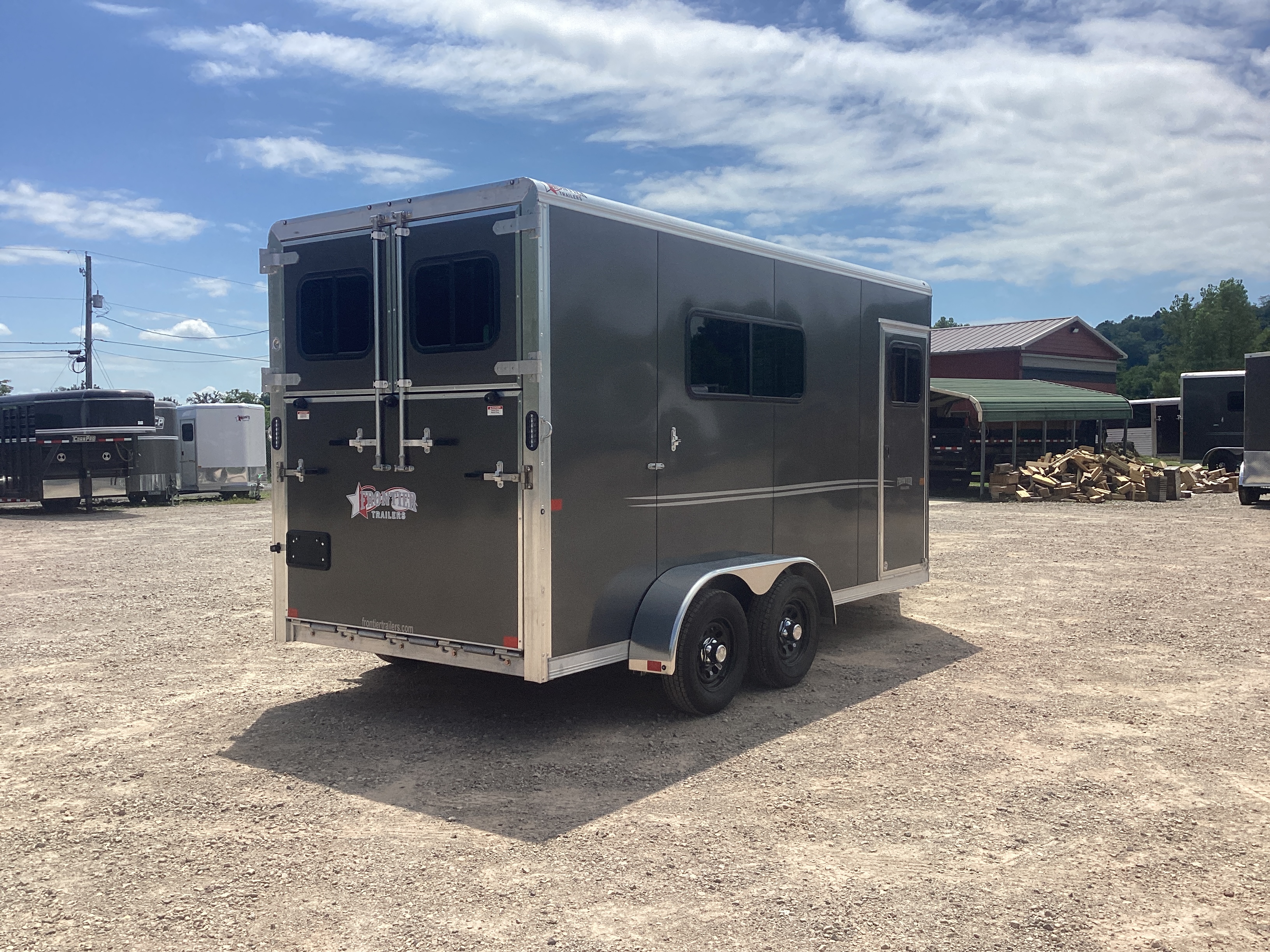

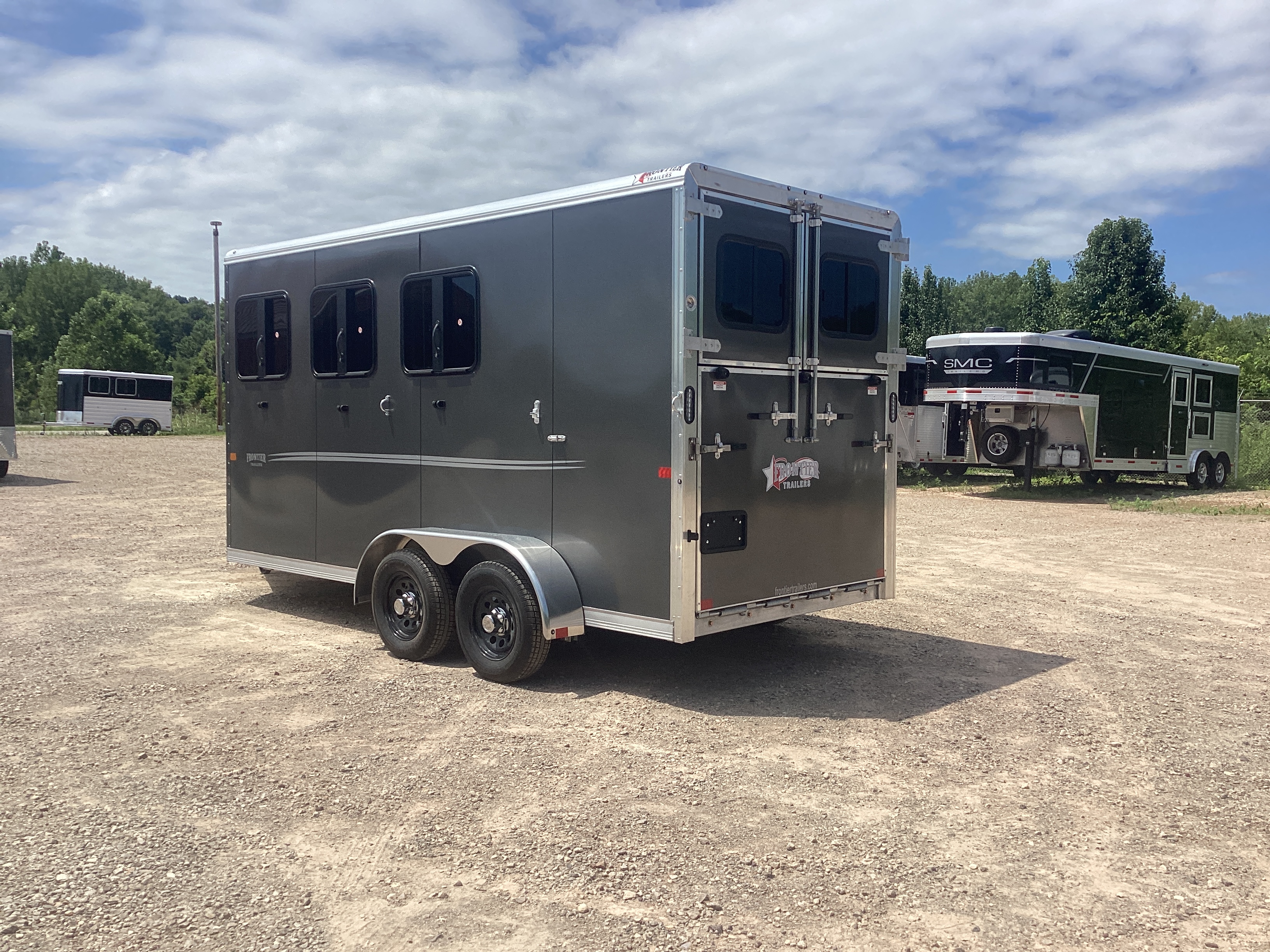

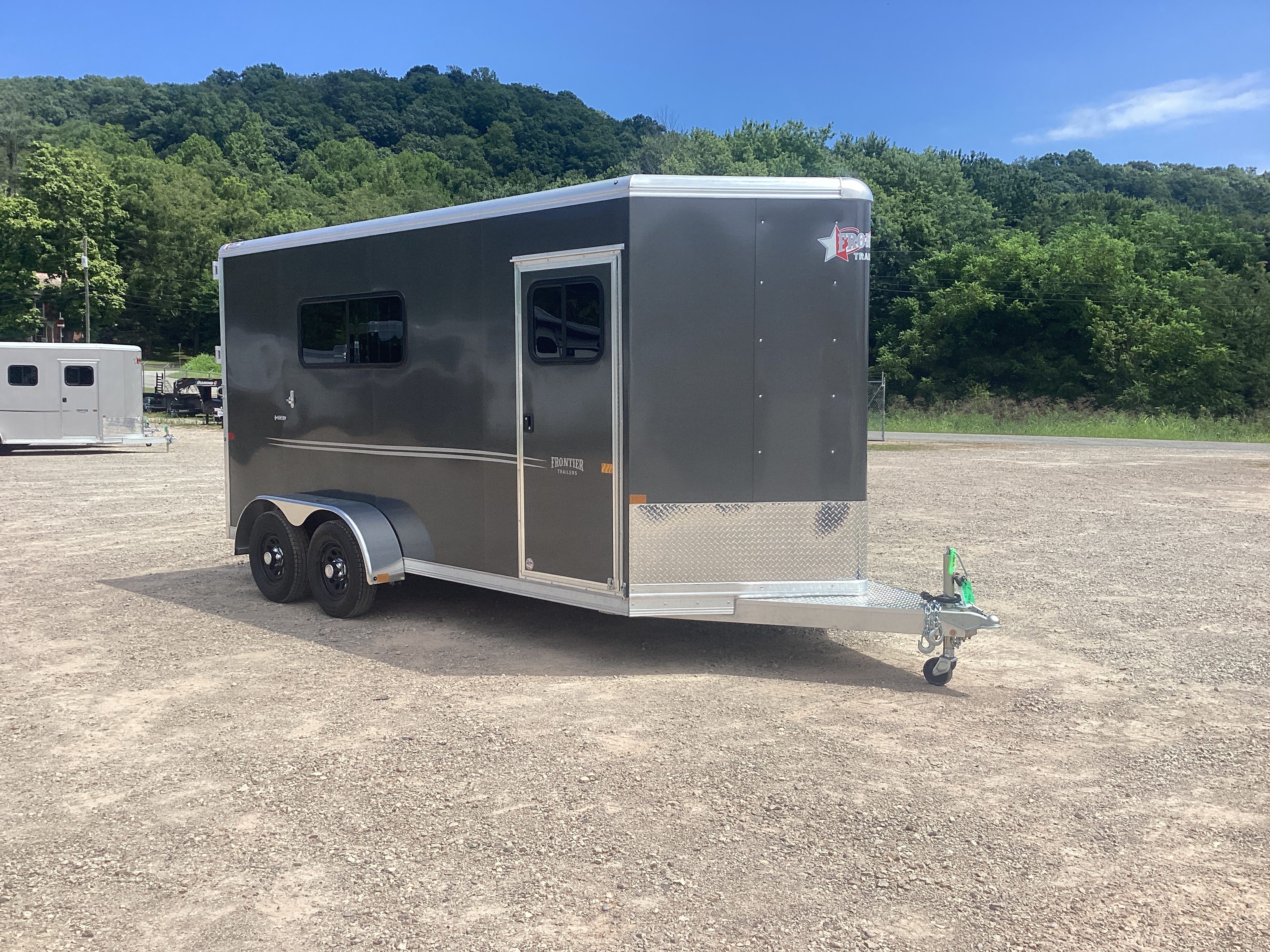

2027 Frontier Trailers 3 Horse Slant Load Extra Tall- VD041120

Box Length: 15’
Box Width: 80"
Interior Height: 90"
Bumper Pull, V-Nose w/ 24” Stone Guard
One Piece, .024 Aluminum Roof w/ Heavy Duty Radius
Roof Extrusion
Load Style: Ramp w/ Tail Curtains from Rear Doors
Stall Width: 40-1/2"
Axles: 2-3500k Dexter Leaf Spring Braked Axles

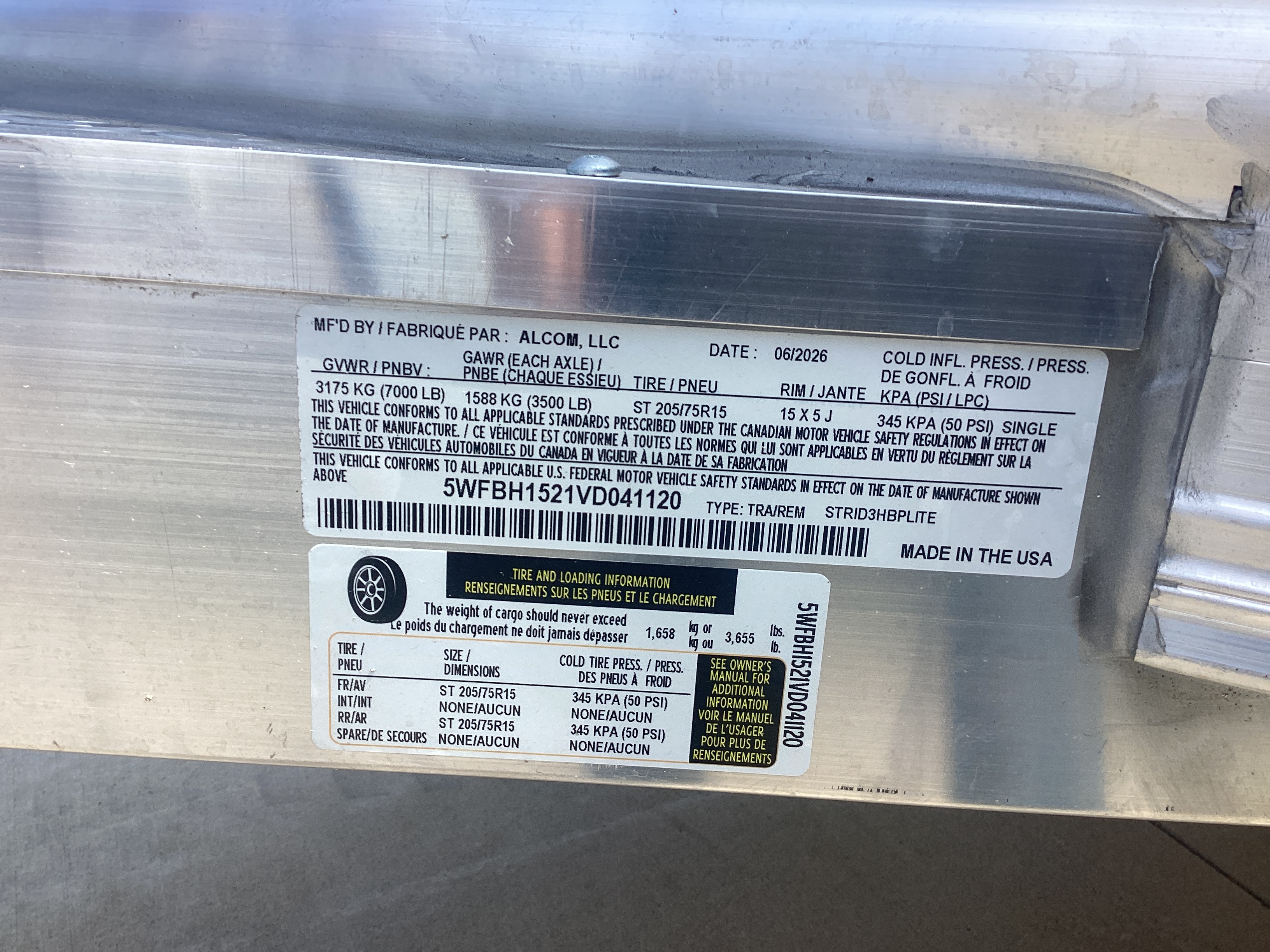

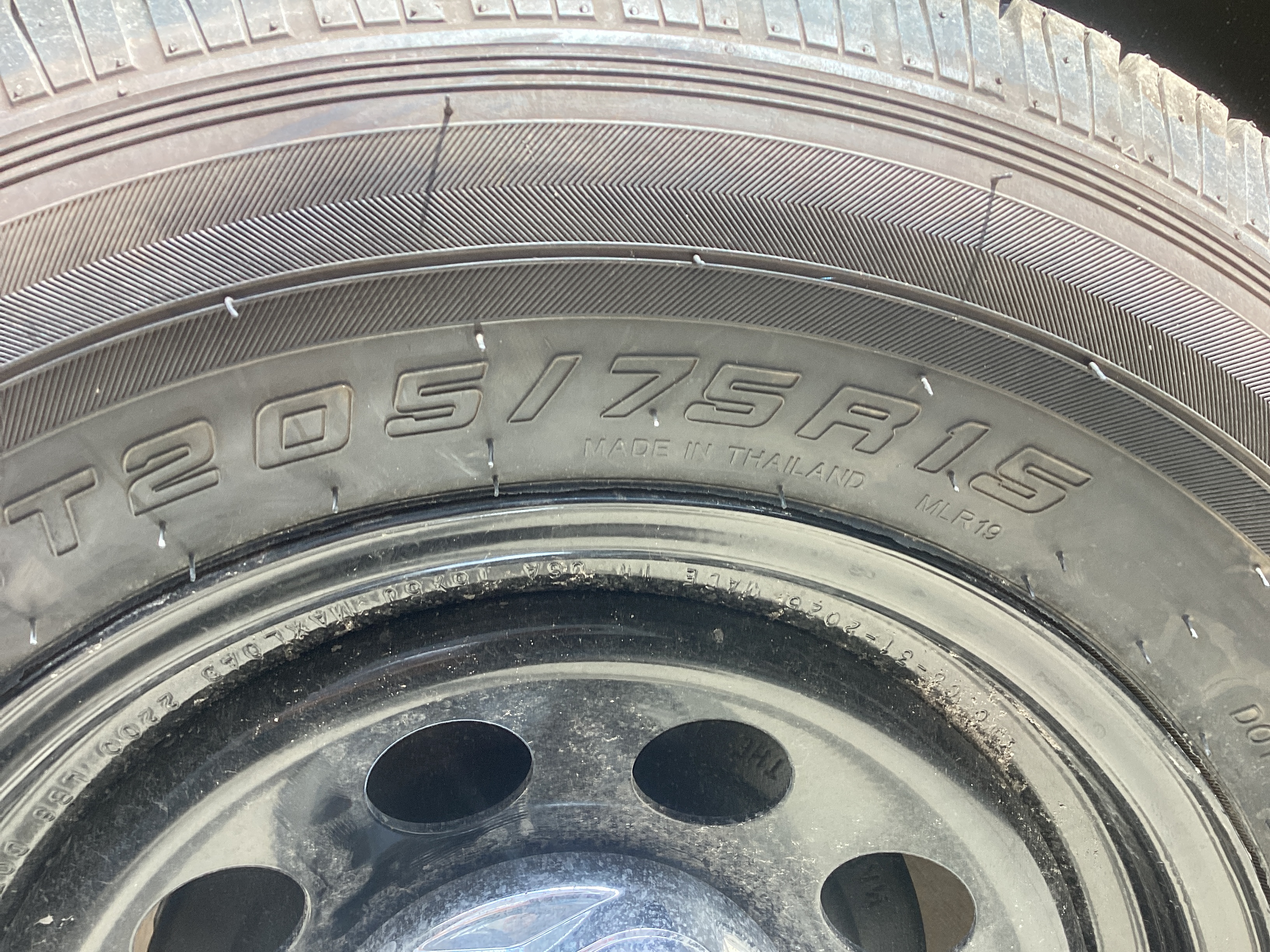

Tires: 15" Gloss Black Mod, ST205/75R15
2” x 8” Pressure Treated Decking
.040 Aluminum Skin: Pre-Painted Exterior Side Sheets
"Improved" All Box Tube Aluminum Chassis
16" O/C - I-Beam Crossmembers
Exterior Light: LED
Heavy Duty Rear Step up Rubber Bumper
----------

Dividers: Removable - "New" Jail Bar Head and Shoulder Divider
- w/ Pads (Custom Extrusion, New Latch System)
Feed Windows: 30" x 24" Radius Drop Down Feed Windows w/Integrated Face Bar (1 per stall)
53” x 19” Sliding Window on Rump Wall
Floor Mats: 1/2" Rubber Mats
Heavy Duty Wall Liner and Rear Door Liner in Horse Area
Safety Chains: Across Rear Opening
Rear Gate: 40/60 Double Rear Doors w/ (1) 18” x 24” Windows (Curbside)
w/ Premium Aluminum Hinges (installed with huck bolts)
Tie Rings: (2) Inside and (1) Outside per Horse
-Interior Location: On the Driver Side Wall just above the Windows
Interior Light: (1) LED Dome Light in Horse Area with Exterior Cup Switch

(1) Double Action Pop-Up Vent (per Stall)
----------
Front Tack Area:
Access: 32” x 72” Access Door w/Sliding Window, 0” Short-Wall
Floor Mats: 1/2" Rubber Mats
LED Dome Light, Removeable Saddle Tree, Bridle Hooks,
Brush Tray
"SWINGING" Tack Room Wall
