2026 Frontier Trailers 3H Extra-Large Horse Trailer - TW153817

Box Length: 17’

Box Width: 7'

Interior Height: 90"

Axles: 2-5000k Dexter Torsion Braked Axles

Tires: Part , 15" Gloss Black Mod, ST225/75R15

Bumper Pull, V-Nose, 24” Stone Guard

Load Style: Slant Load - Step Up

"Improved" All Box Tube Aluminum Chassis

16" O/C - I-Beam Crossmembers

One Piece, .040 Aluminum Roof w/Heavy Duty Radius

Roof Extrusion

Extruded Aluminum Decking

.040 Aluminum Skin

Custom Graphics Package

Full Length Running Boards

Heavy Duty Rear Step up Rubber Bumper

Exterior Light: LED

----------

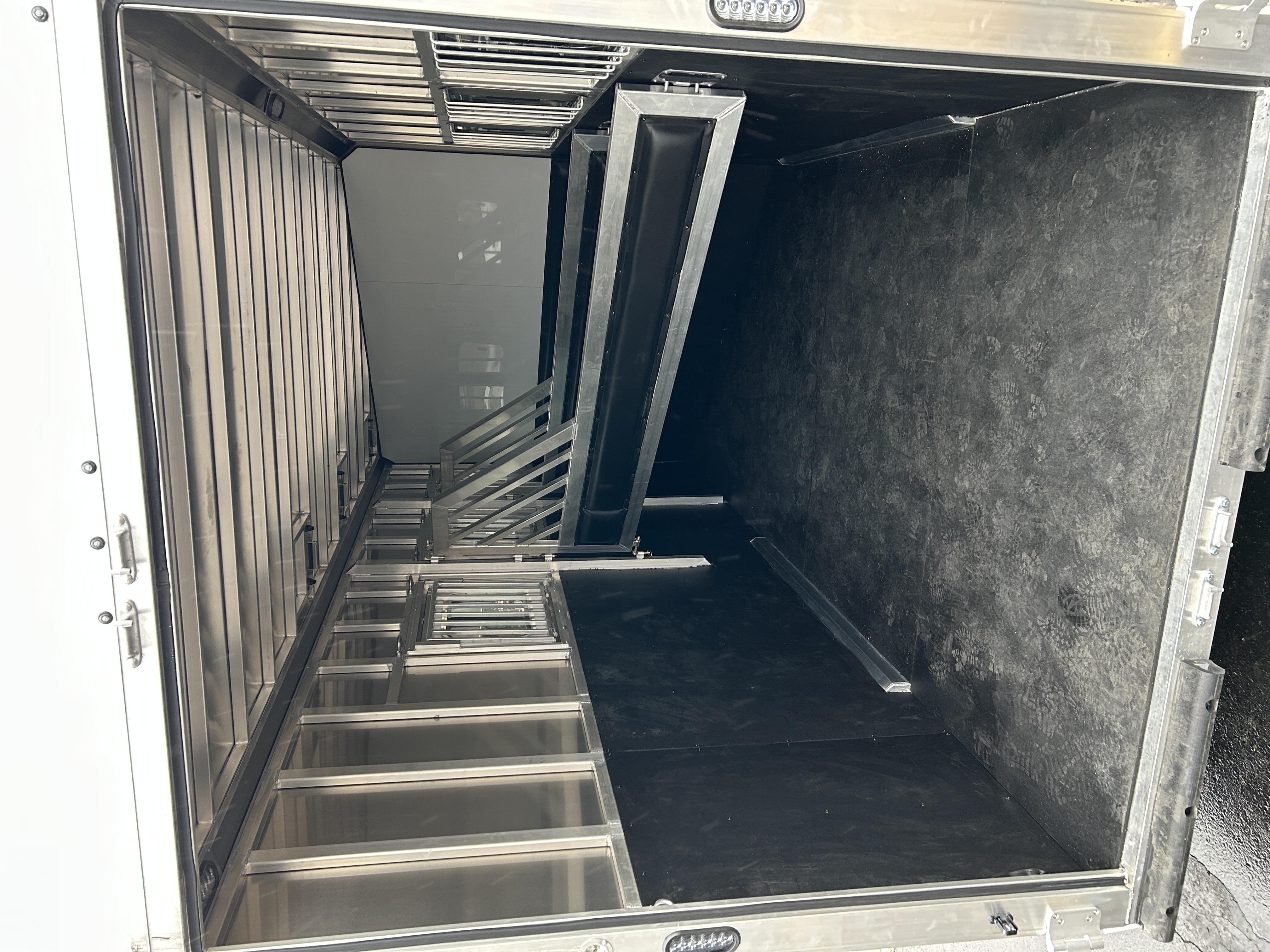

Horse Area:

Stall Width: 40-1/2"

Dividers: Removable Jail Bar Head and Shoulder Divider

- w/ Pads (Custom Extrusion, New Latch System)

Feed Windows: 32" x 25" Premium Square Drop Down Feed Windows

- w/Integrated Face Bar (1 per stall)

18” x 24” Sliding Window on Rump Wall (1-per stall)

Floor Mats: 1/2" Rubber Mats

Heavy Duty Wall Liner and Rear Door Liner in Horse Area

Safety Chains:  Across Rear Opening

Rear Gate: 40/60 Double Rear Doors w/ (2) 18” x 24” Windows

- w/ Premium Aluminum Hinges (installed with huck bolts) and Keyed Locking Hasp

Tie Rings: (2) Inside and (1) Outside (per Horse)

-Interior Location: On the Driver Side Wall just above the Windows

Interior Light: (2) LED Dome Lights with Exterior Cup Switch

(1) Double Action Pop-Up Vent (per Stall)

----------

Front Tack Area:

Access: 32” x 72” Tack Door w/Sliding Window, 0” Short-Wall

Floor Mats: 1/2" Rubber Mats

Interior Light: (1) LED Dome Light in Horse Area w/ Wall Switch

Hooks: (6) Adjustable Bridle Hooks

Brush Tray: Mounted on Tack Storage Door

Saddle Tree: Removable Saddle Tree w/ (3) Saddle Racks
