2026 Featherlite Trailers 4H Slant Horse Trailer - TC165324

Hitch Type:  Gooseneck

Load Type: Slant

Trailer Width:  7’0″

Inside Height: 7′ 0″

Horse Stalls: 4

Stall Width: 43″

Dressing Room Size: 50″

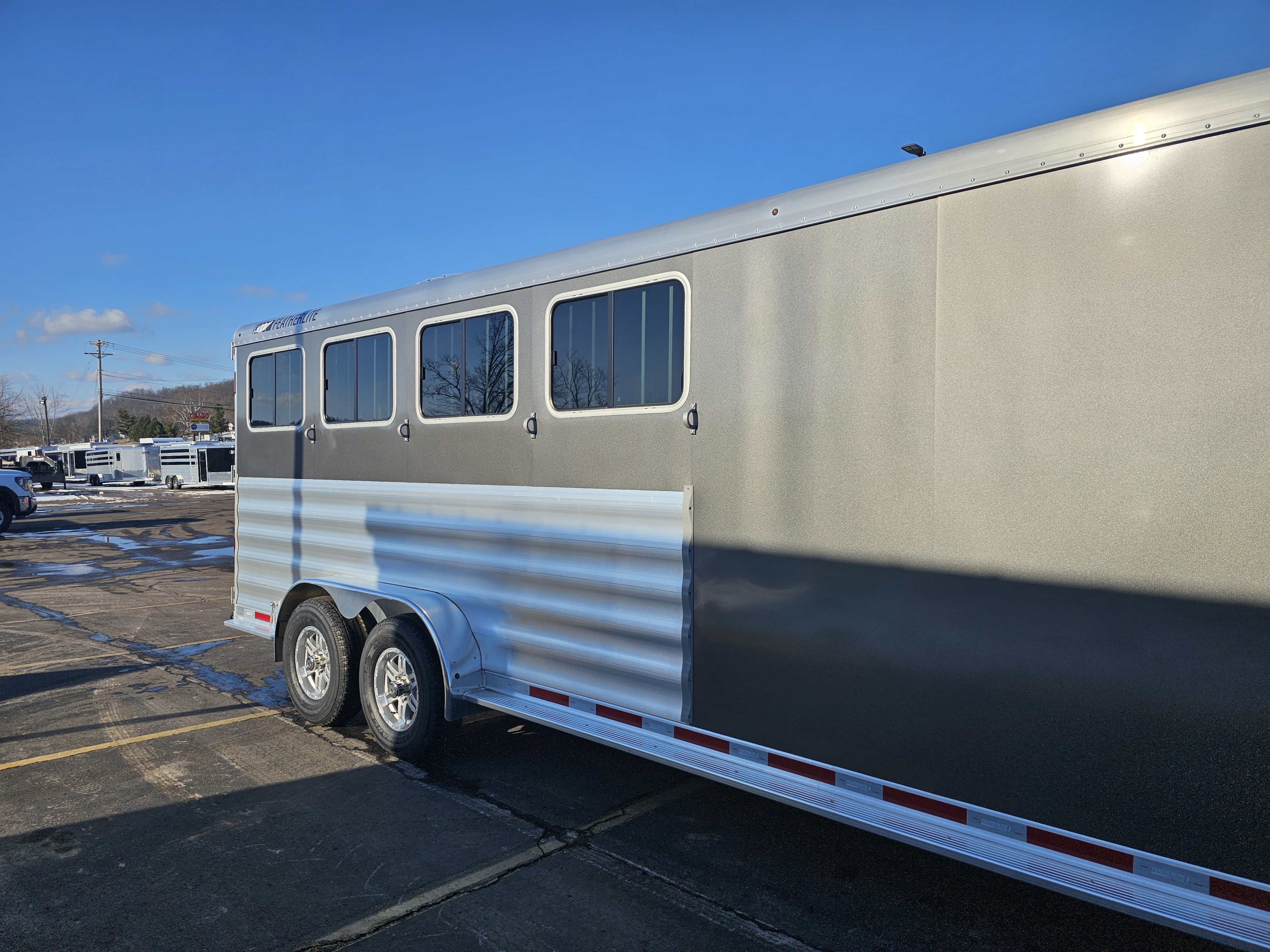

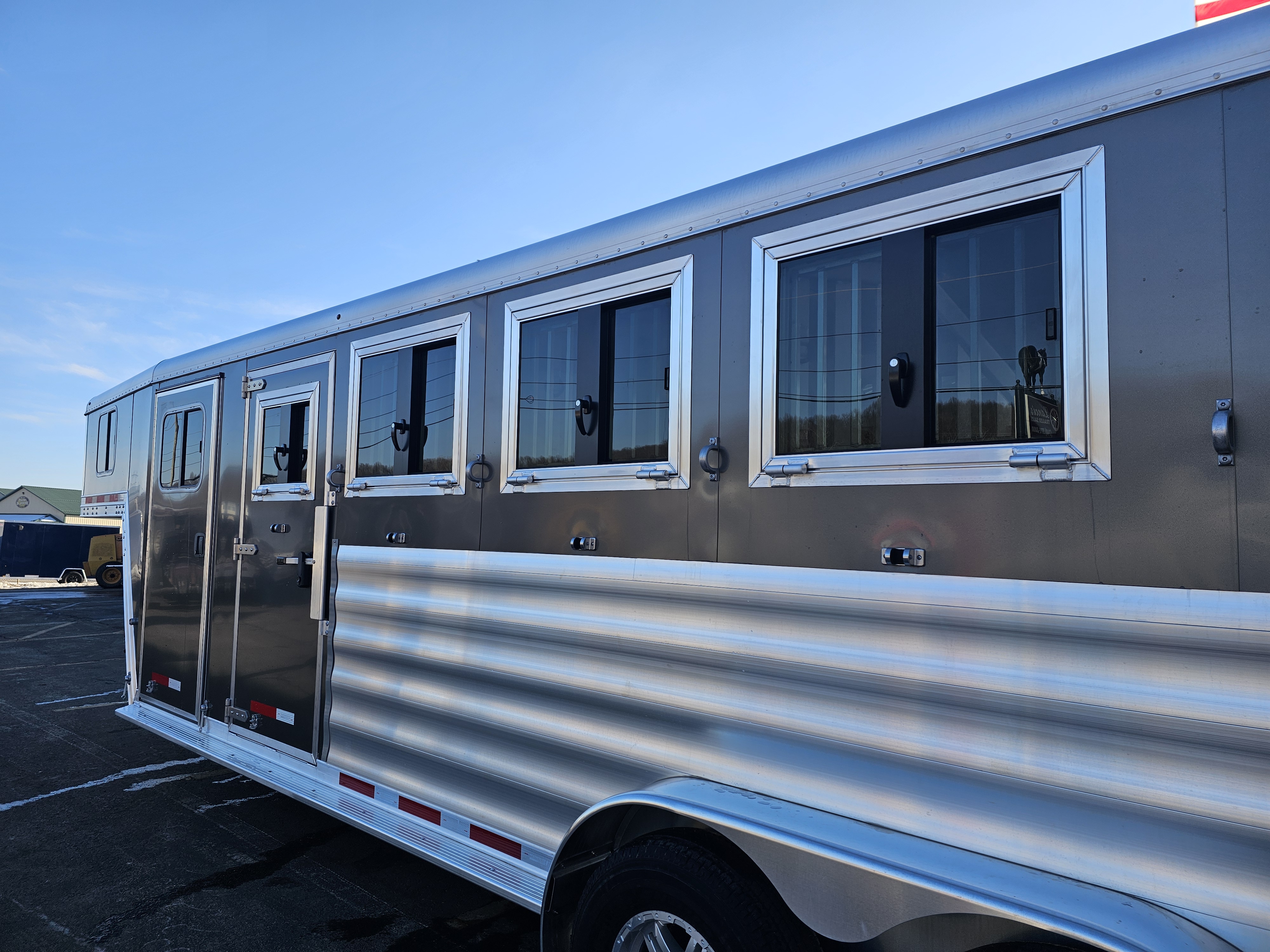

Exterior Sides:   Charcoal .040 rivetless aluminum exterior sheets with aluminum wave panels below; Trailer includes stainless steel front sheets and front corners

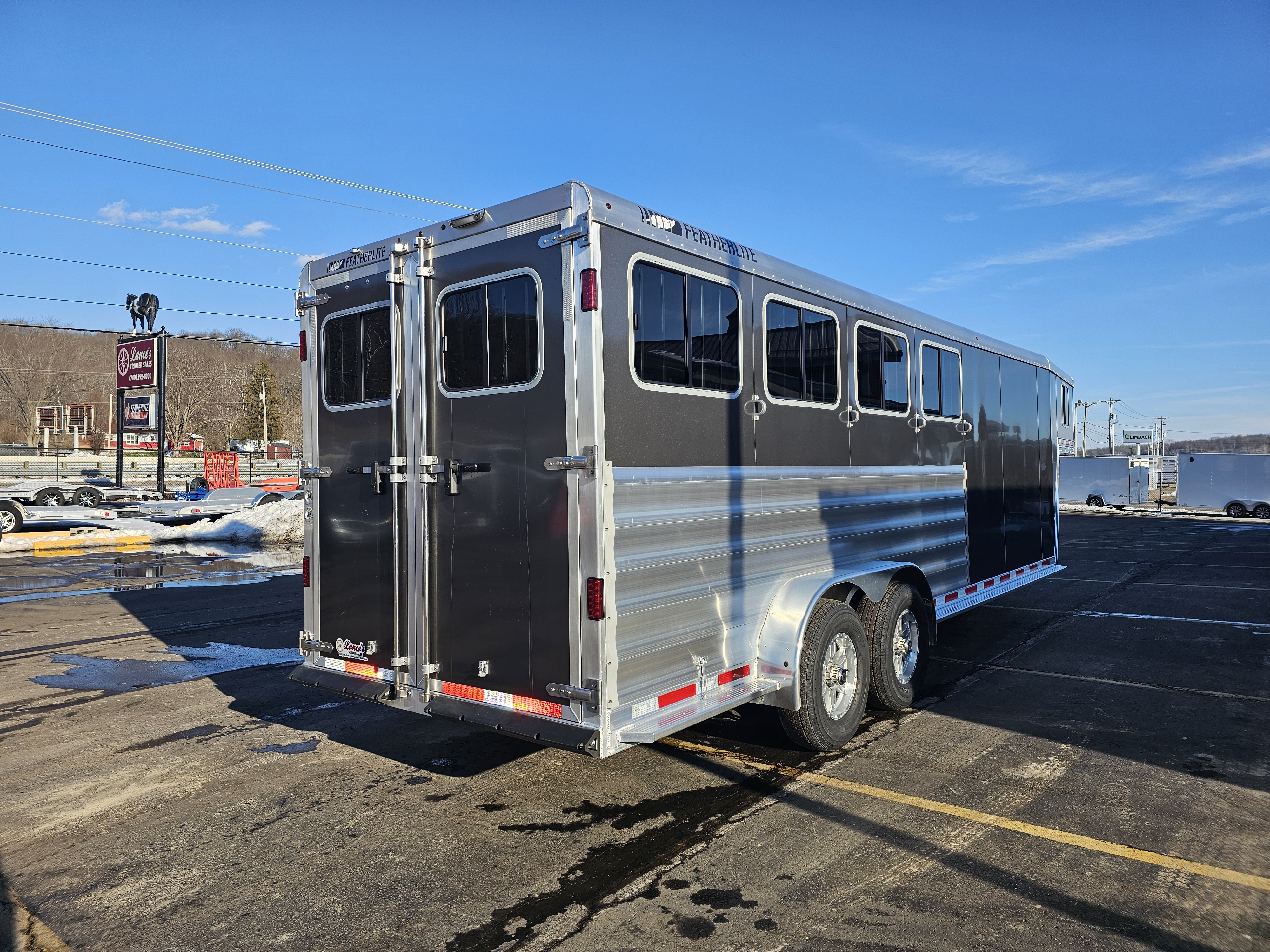

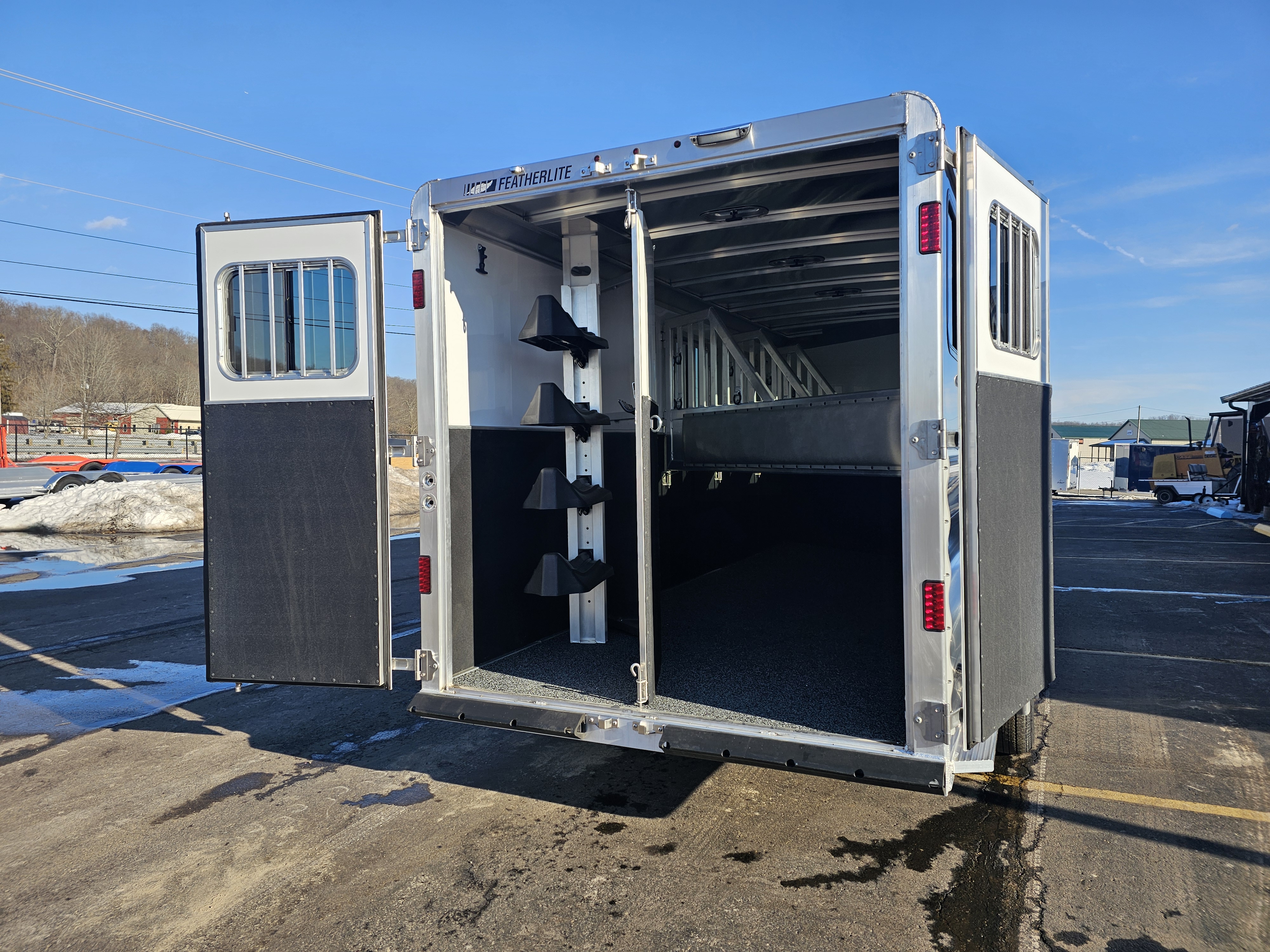

Rear Doors:  Double rear doors with windows, stainless double pipe hardware and no center post

Unload Doors:  Side unload door in front of first horse with nylon strap (not available on 2H)

Windows:  Drop down feed door with drop down bars in front of each horse; 34 1/4″ x 22″ window with bars behind each horse; Two 26″ x 19″ windows in the gooseneck

Tack Area:   Folding rear tack wall lined on horse area side with white aluminum; Includes turf behind halter hooks in rear tack

Stall Dividers:   Padded slant stall dividers with AirFlo shoulder separator and spring-loaded slam latch

Saddle Rack:  Adjustable saddle rack for each horse mounted on removable post; Extra location for post in dressing room

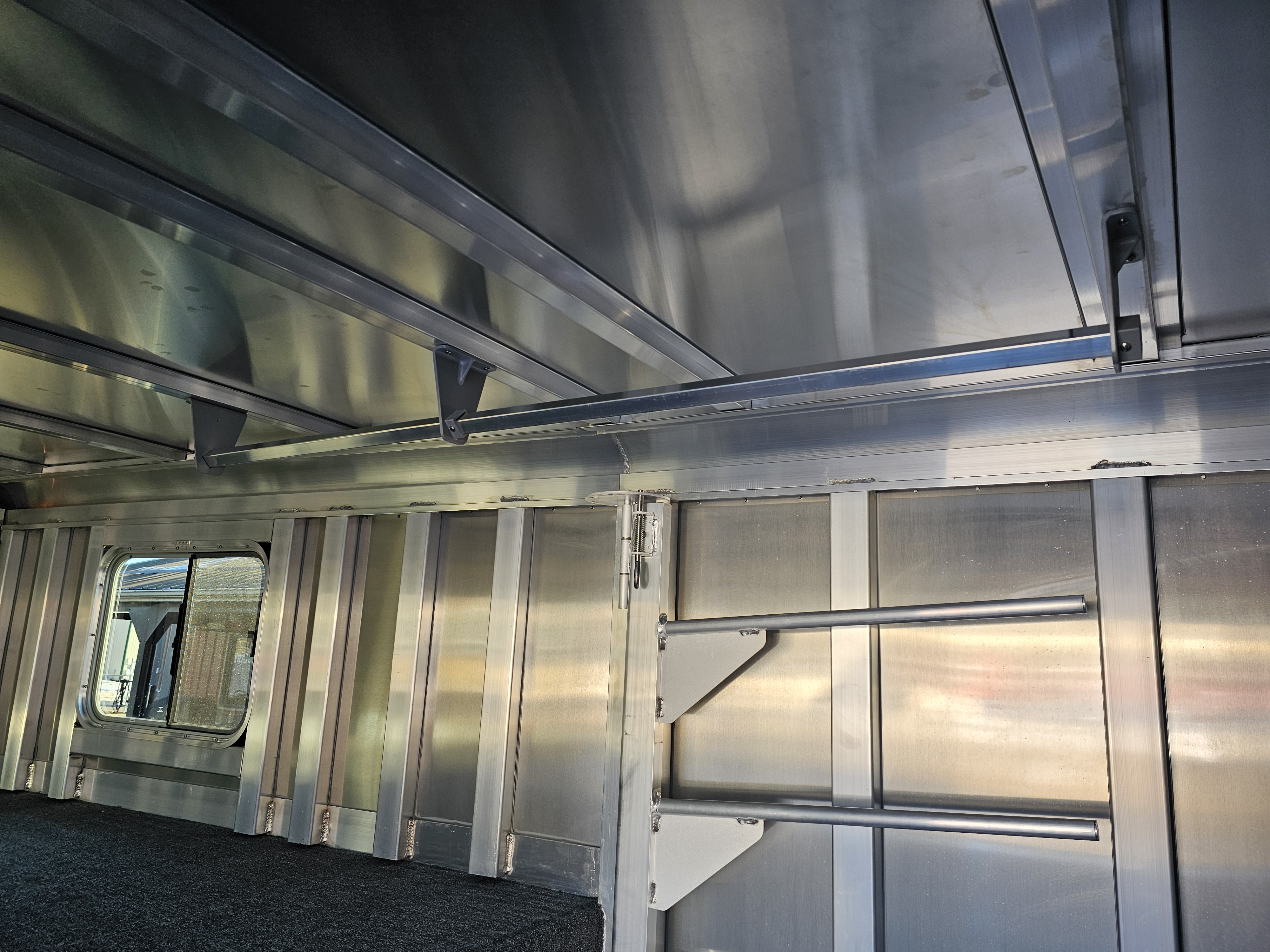

Walls:  Rubber up 44″ on the wall in front of horses; Rubber up 48″ on wall behind horses; .090 aluminum up 48″ on side walls; .040 white aluminum lining above the wall rubber

Doors:  36″ square camper door with window & deadbolt for dressing room entry

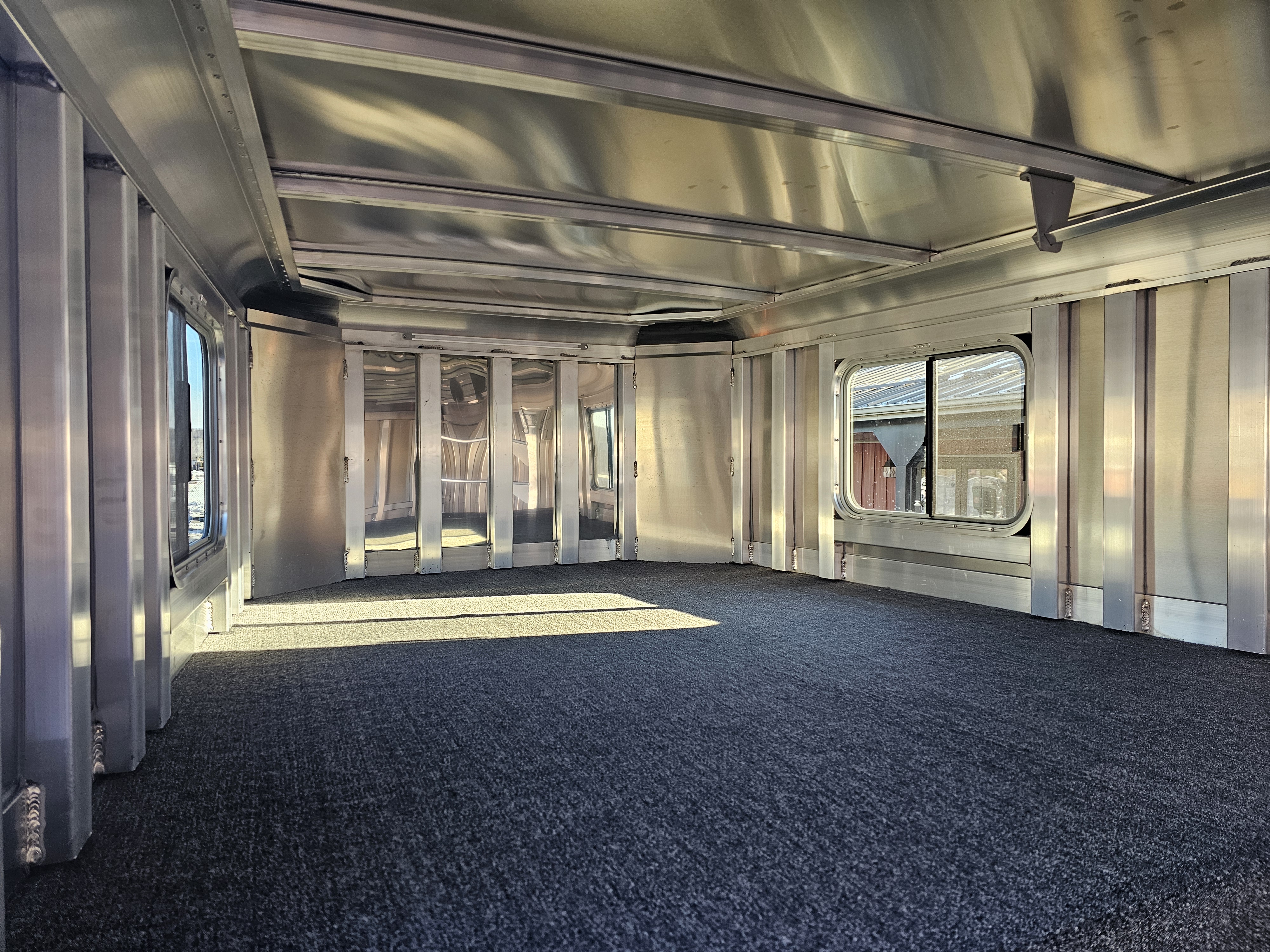

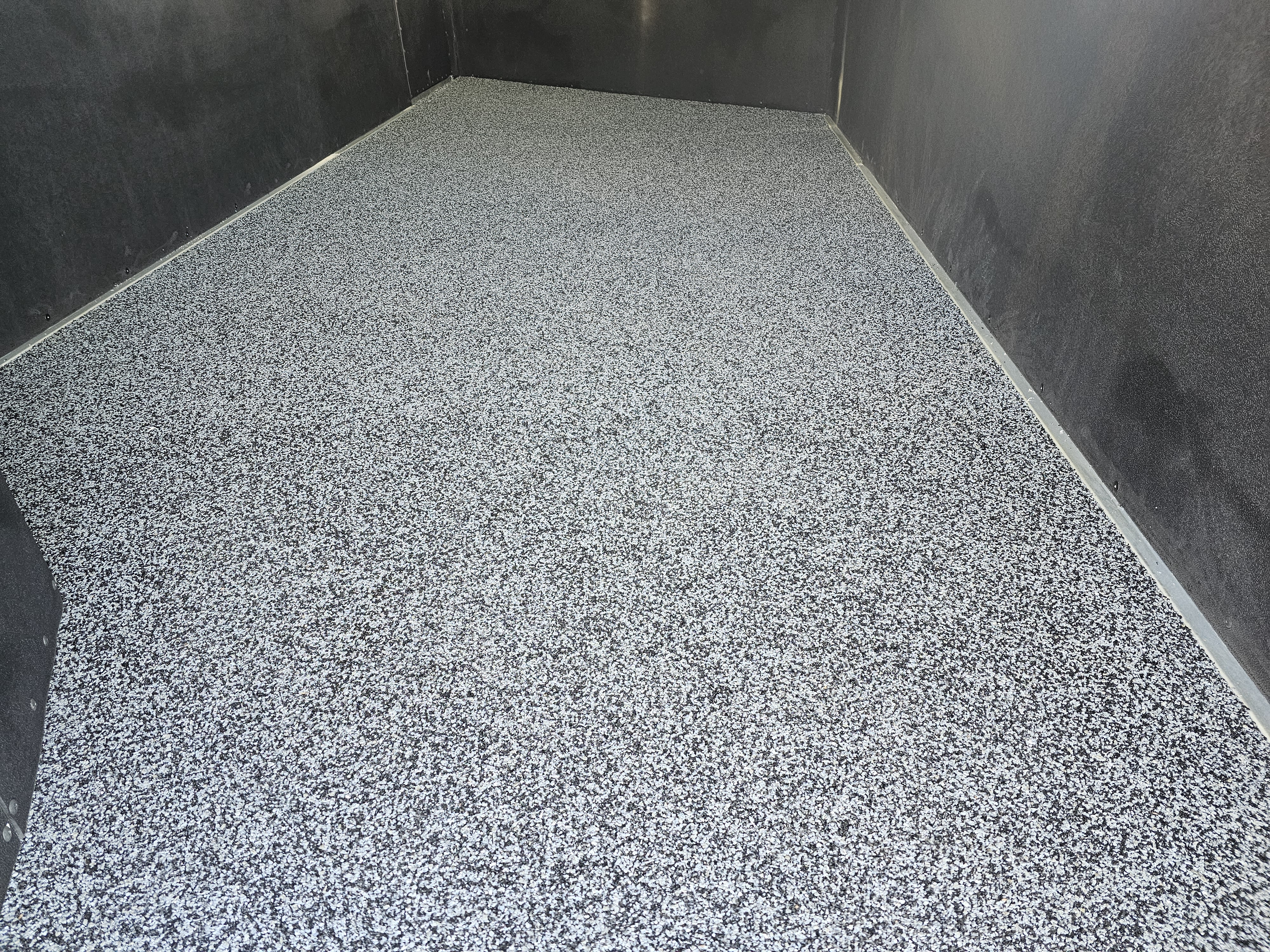

Floor/Floor Mats: Easy Care Flooring

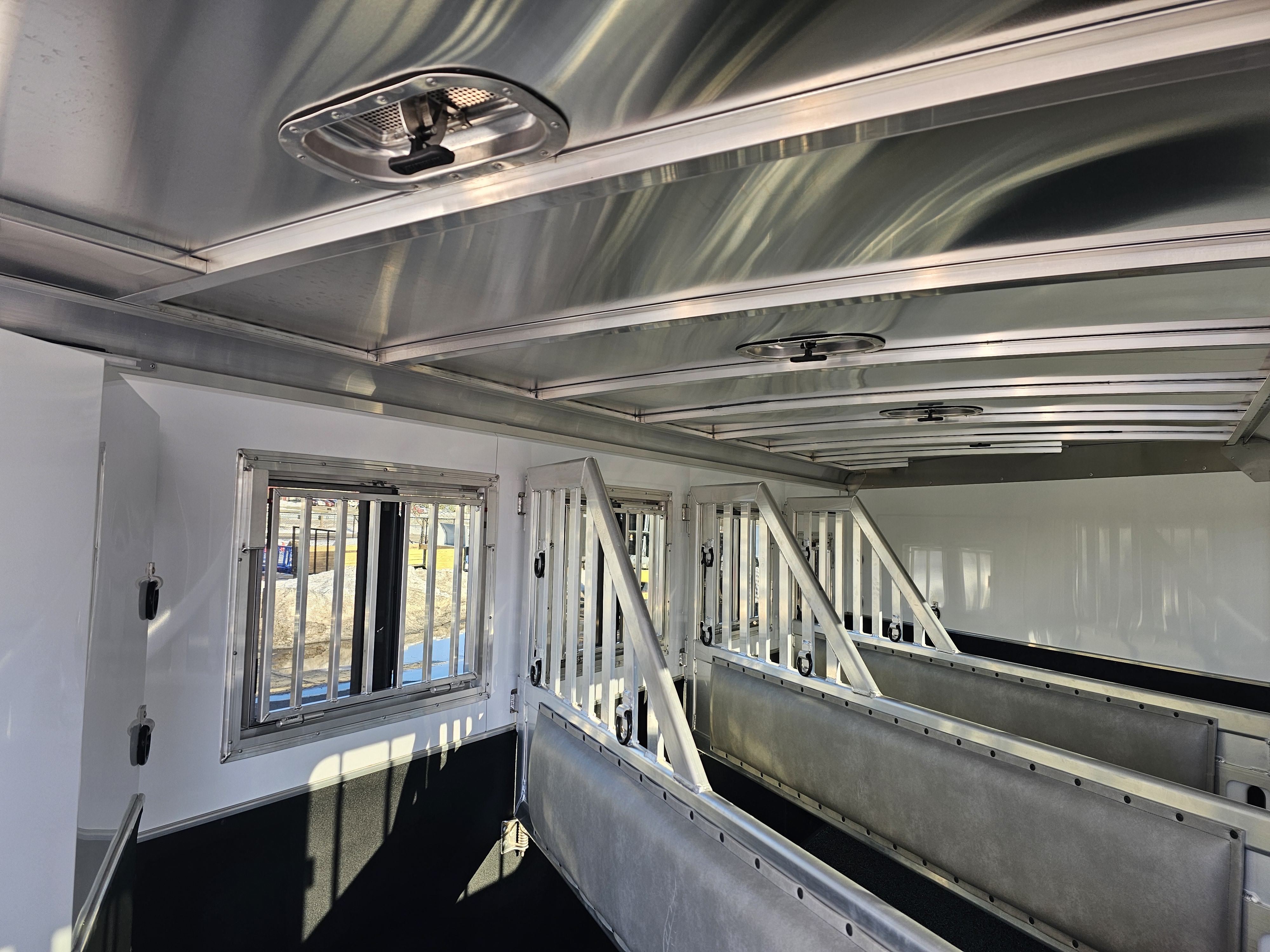

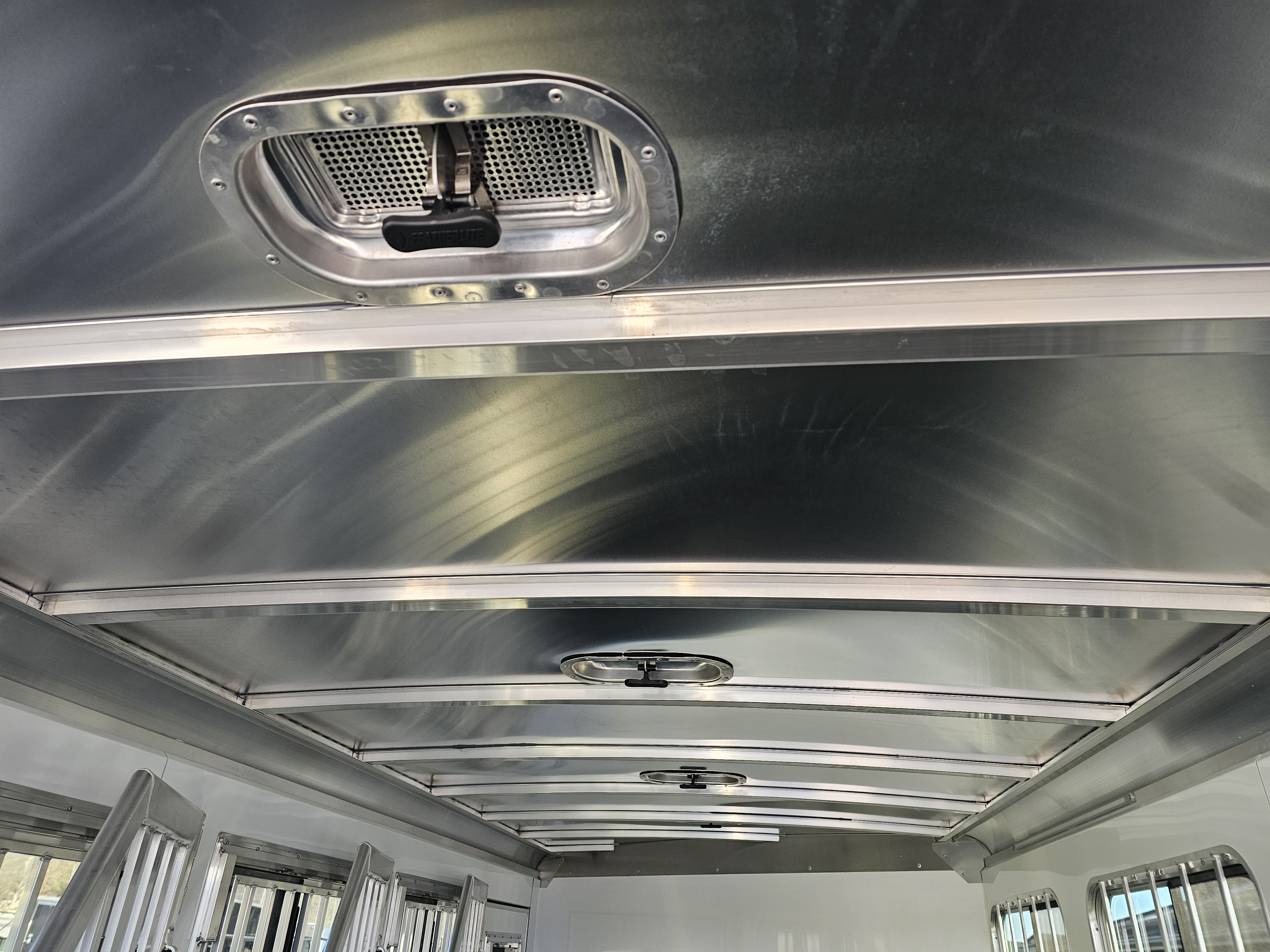

Roof Vents:  One pop-up roof vent per horse

Interior Lights:  LED light strip in horse area (one per 2 horses); LED light strip for rear tack; Two LED light strips in dressing room; Lights are 12V/20W

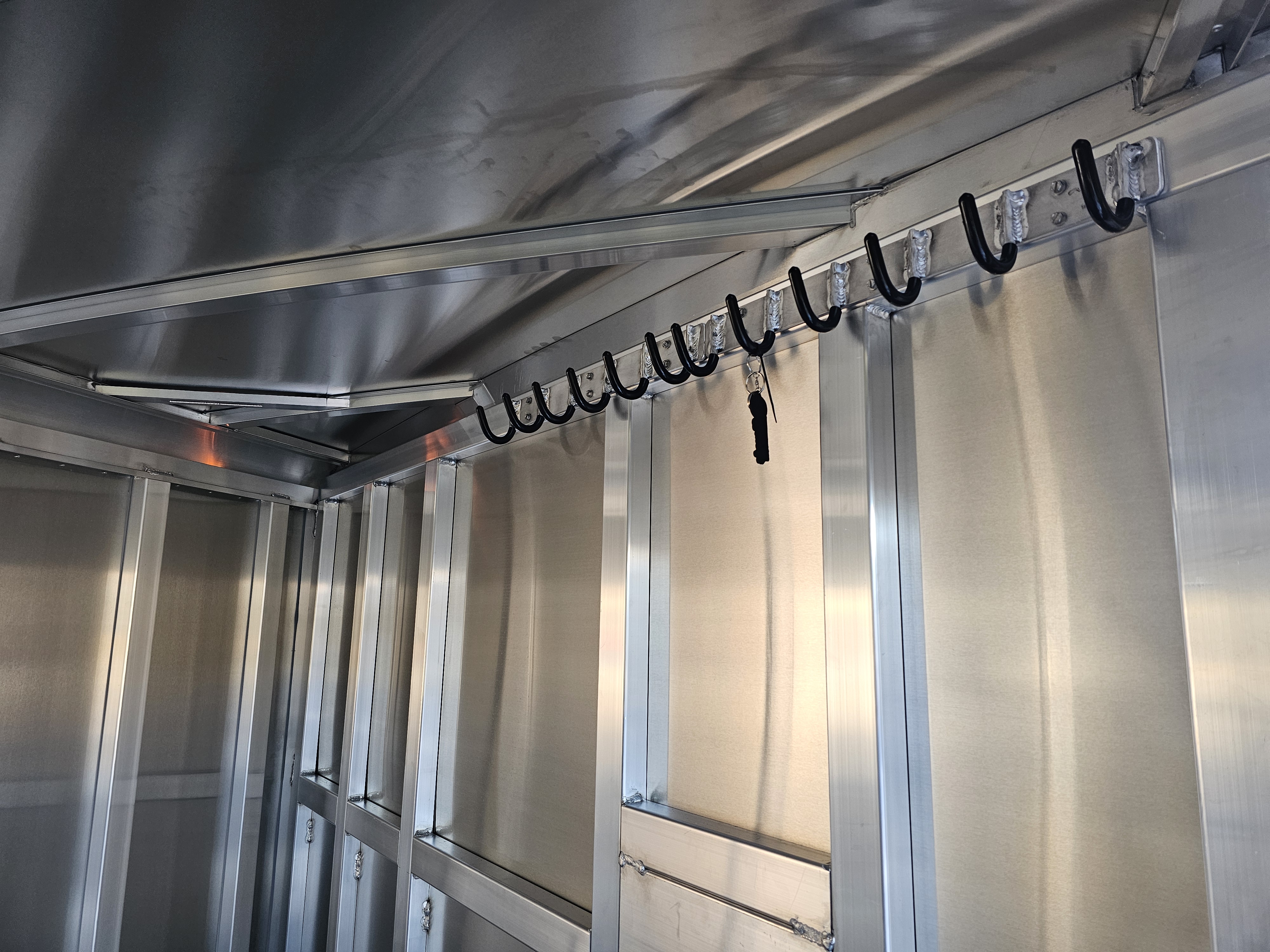

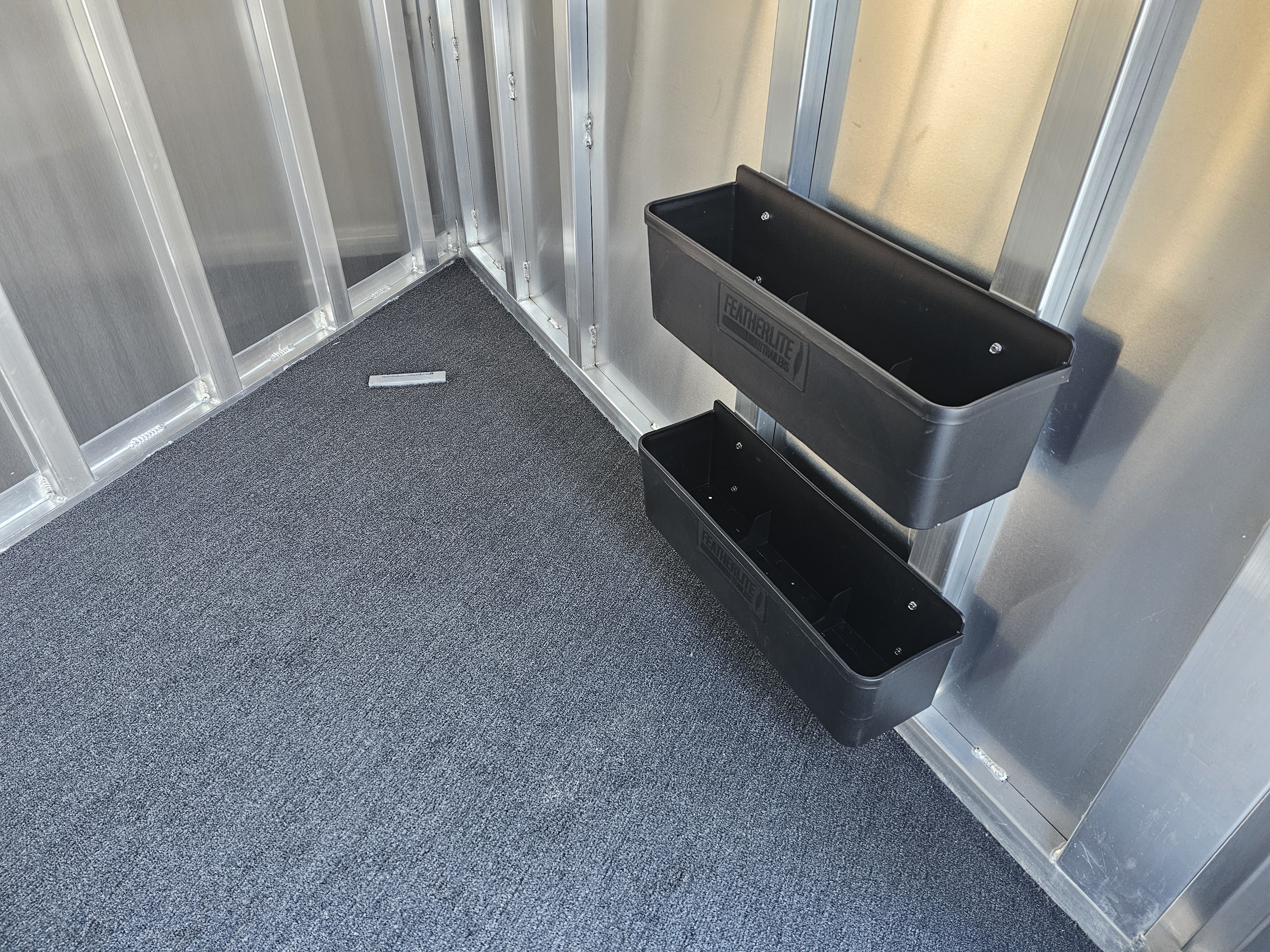

Dressing Room:  5′ long clothes rod; Turf on floor, drop wall and gooseneck floor; Brush tray; Aluminum halter hooks; Swinging blanket bar

Tie Rings: One outside tie ring per horse per side; Five inside tie rings per horse

Axles: Two rubber torsion axles with electric brakes  6000#

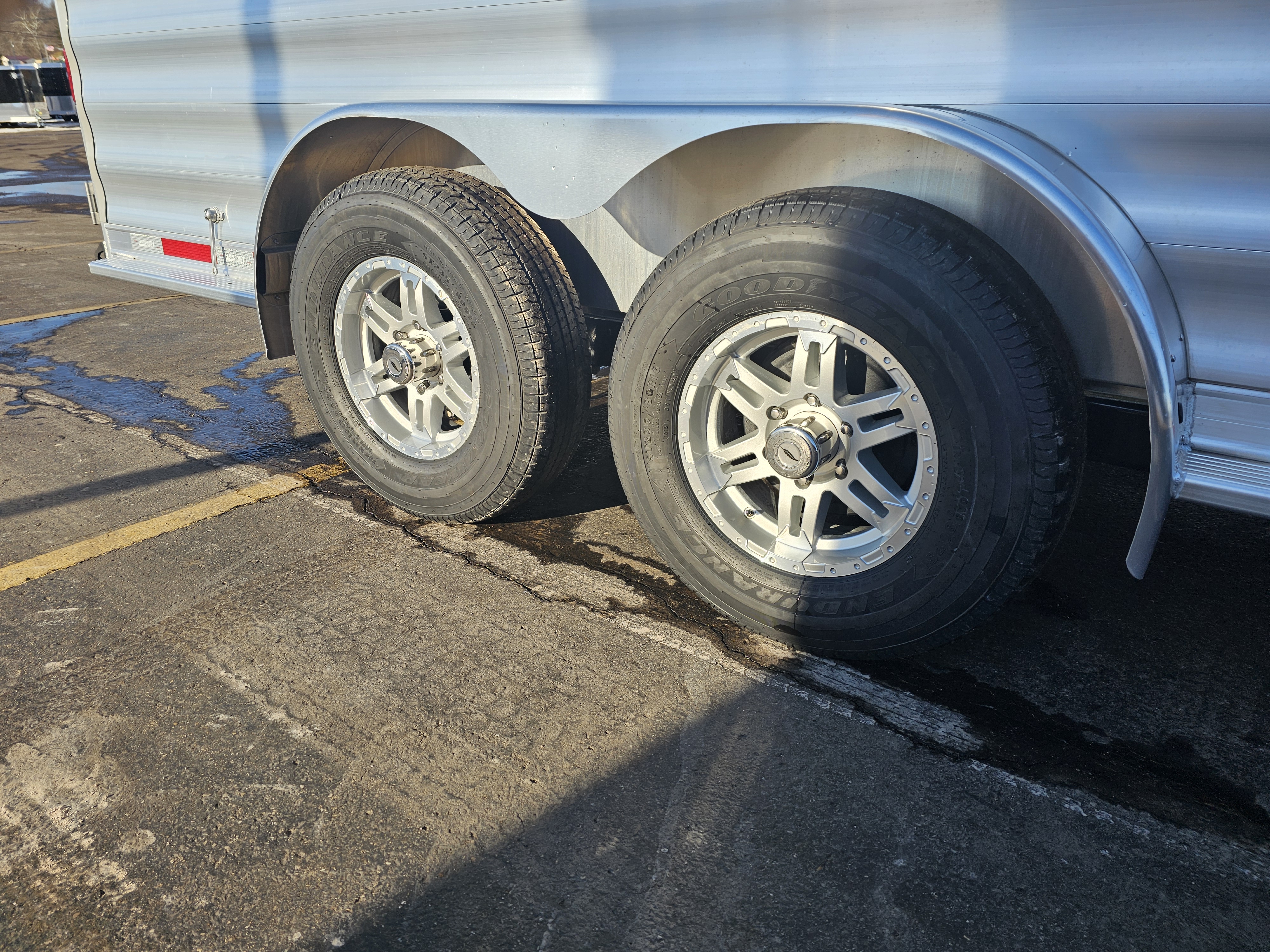

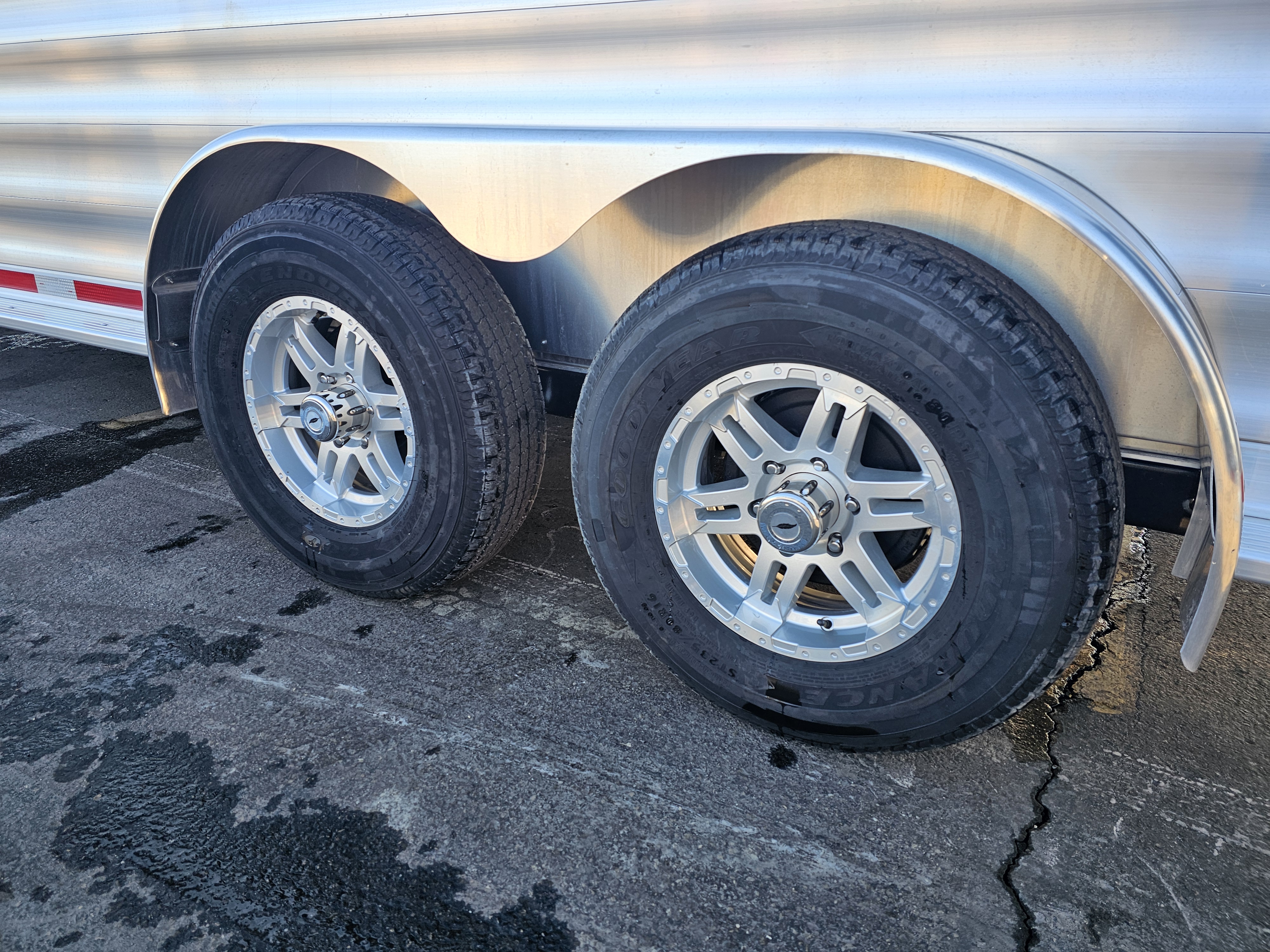

Tire/Rim:  16″ 6-hole silver aluminum wheels with Goodyear ST235/80R16 Load Range E tires

Exterior Lights: LED clearance lights and 4 wraparound LED stop/turn lights; LED load light above rear load door with switch at rear

Butt/Chest Bars: Nylon strap behind rear horse

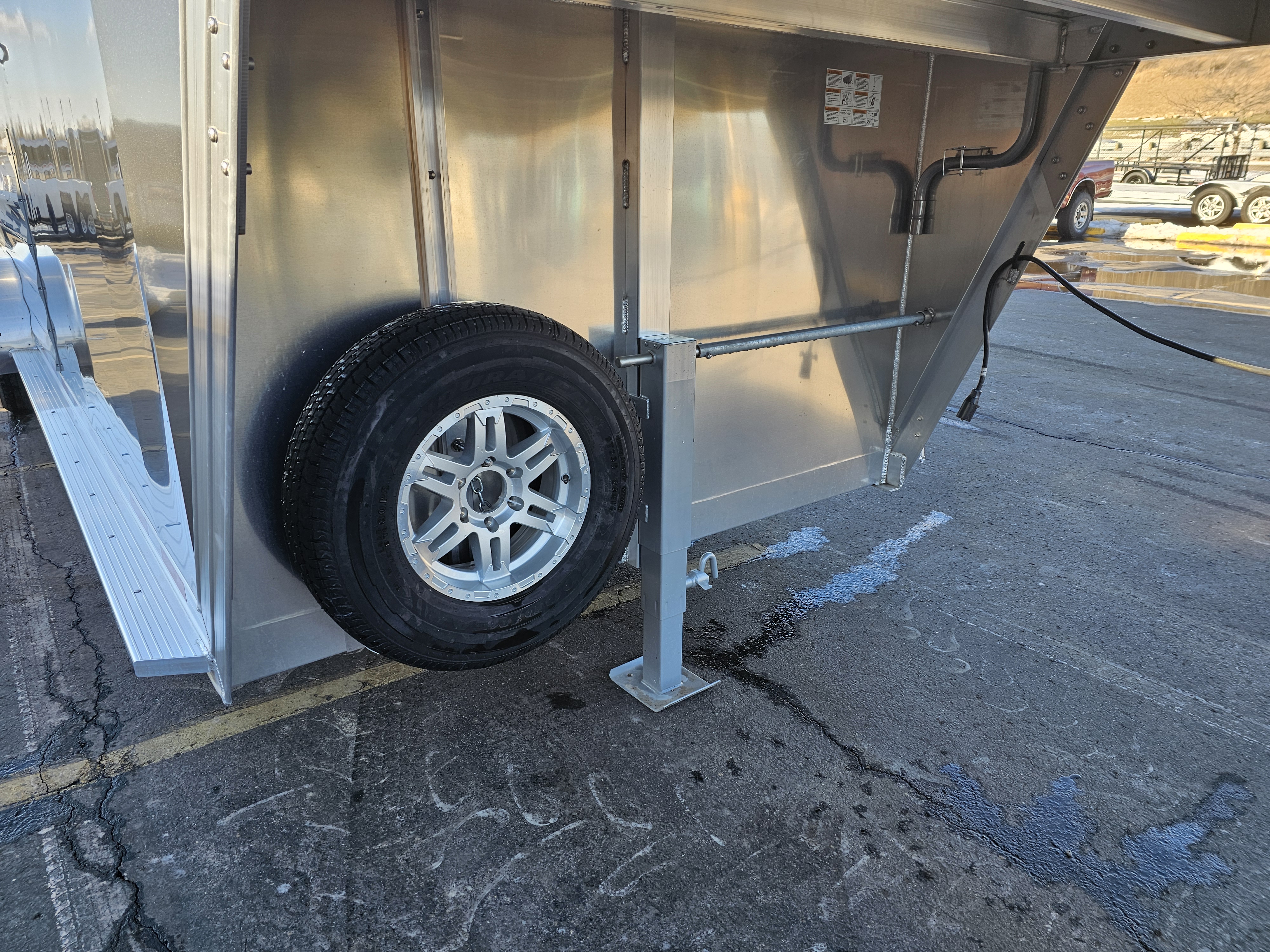

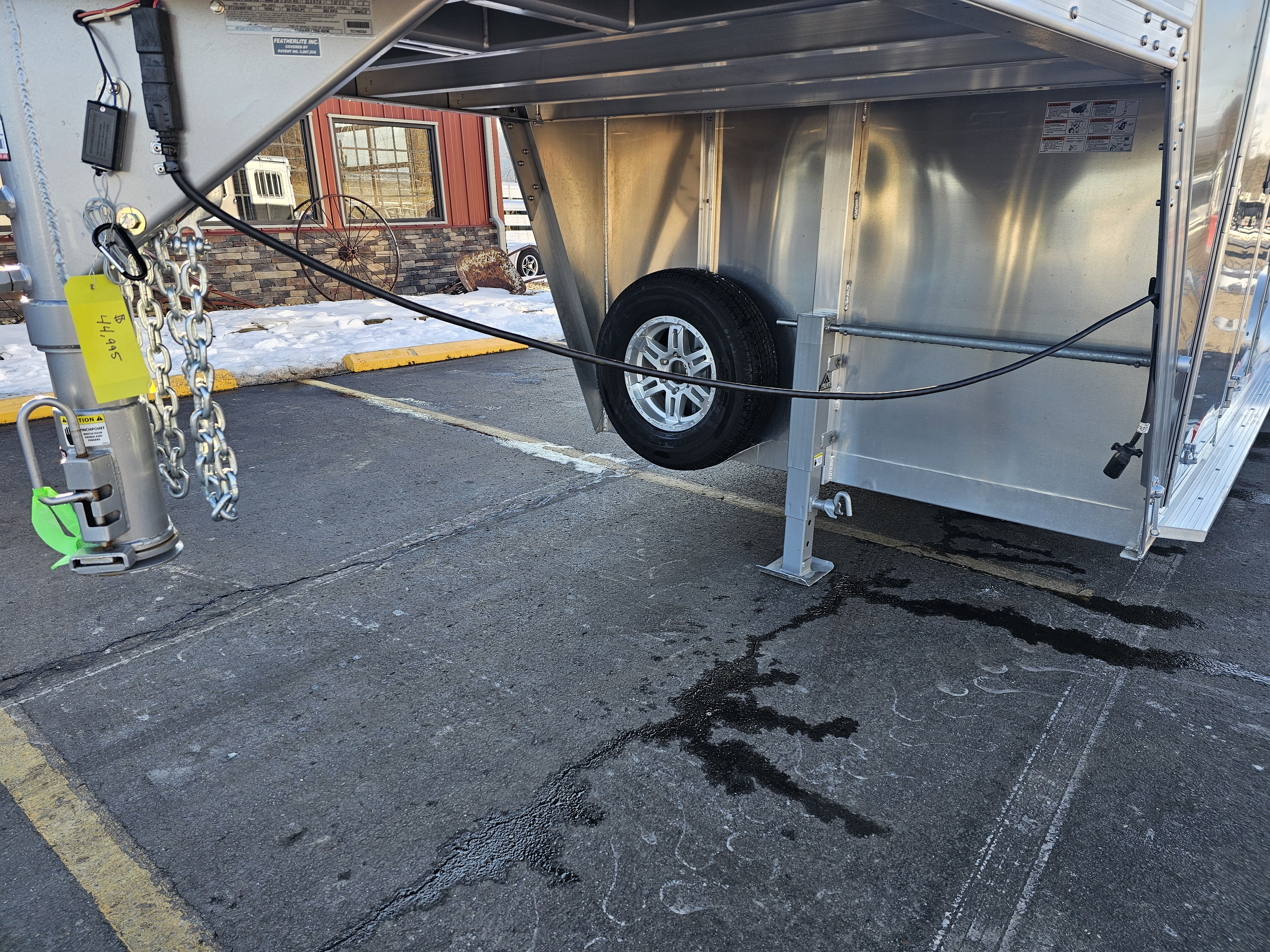

Coupler:   2 5/16″ adjustable gooseneck coupler; Single speed jack with removable crank handle

Other: 1 5/8″ side posts; Rubber dock bumper

Weight:  5,260#
