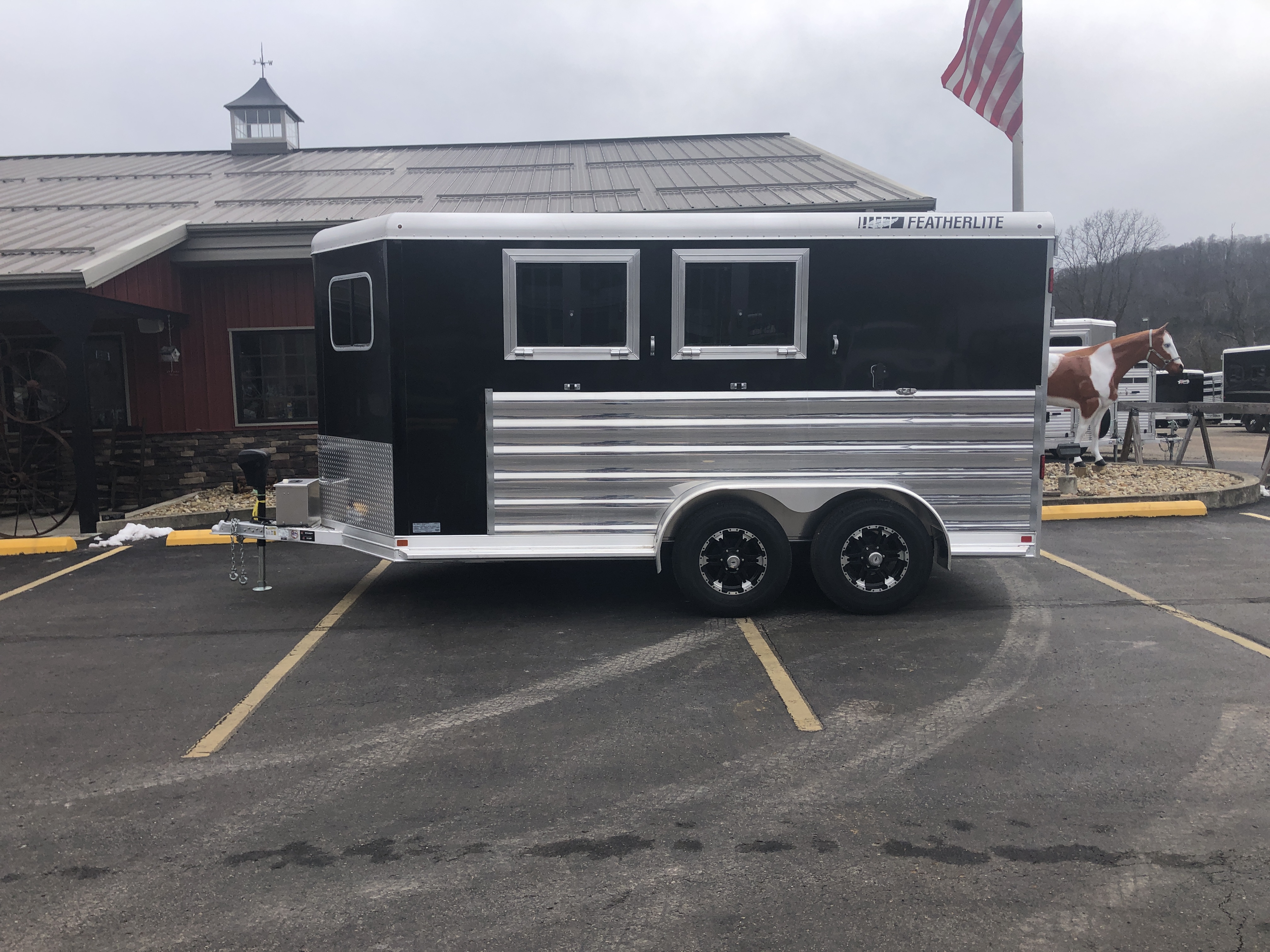

2026 Featherlite Trailers 2H Slant Load Custom Tack Horse Trailer - TC165571
Get in Touch
Dealer Notes
| Load Type | Slant |
| Trailer Width | 7′ 0″ |

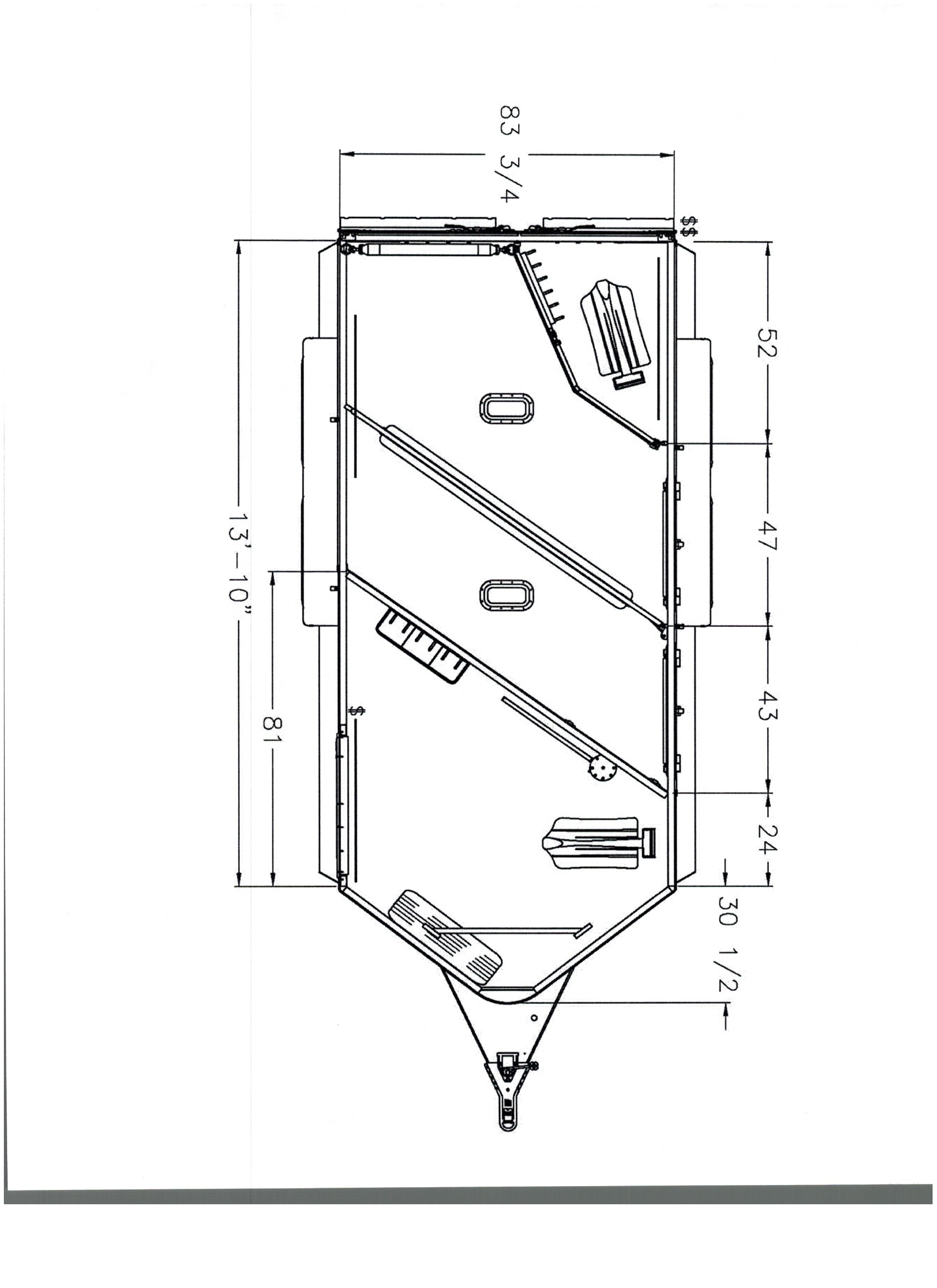

| Trailer Length | 2H =13’10” |
| Inside Height | 7′ 0″ |
| Horse Stalls | 2 |
| Stall Width | 43″ |
| Exterior Sides | Black.040 rivetless aluminum exterior sheets with aluminum wave panels below |
| Rear Doors | Dutch Doors w/Ramp |
| Windows | Square cornered drop down feed door with drop down bars in front of each horse; 34 1/4″ x 22″ window with bars behind each horse |
| Tack Area | Folding rear tack wall lined on horse area side with white aluminum; Includes turf behind halter hooks in rear tack. |
| Stall Dividers | Padded Air Flo slant stall dividers with shoulder separator & spring-loaded slam latch w/Stud Wall |
| Saddle Rack | Adjustable saddle rack for each horse mounted on removable post. Extra location for post in dressing room |
| Walls | Rubber up 44″ on wall in front of horses; Rubber up 48″ on wall behind horses; .090 aluminum up 48″ on the wall in front and behind horses; 1 5/8″ wall insulation; White .040 aluminum lining above the wall rubber |

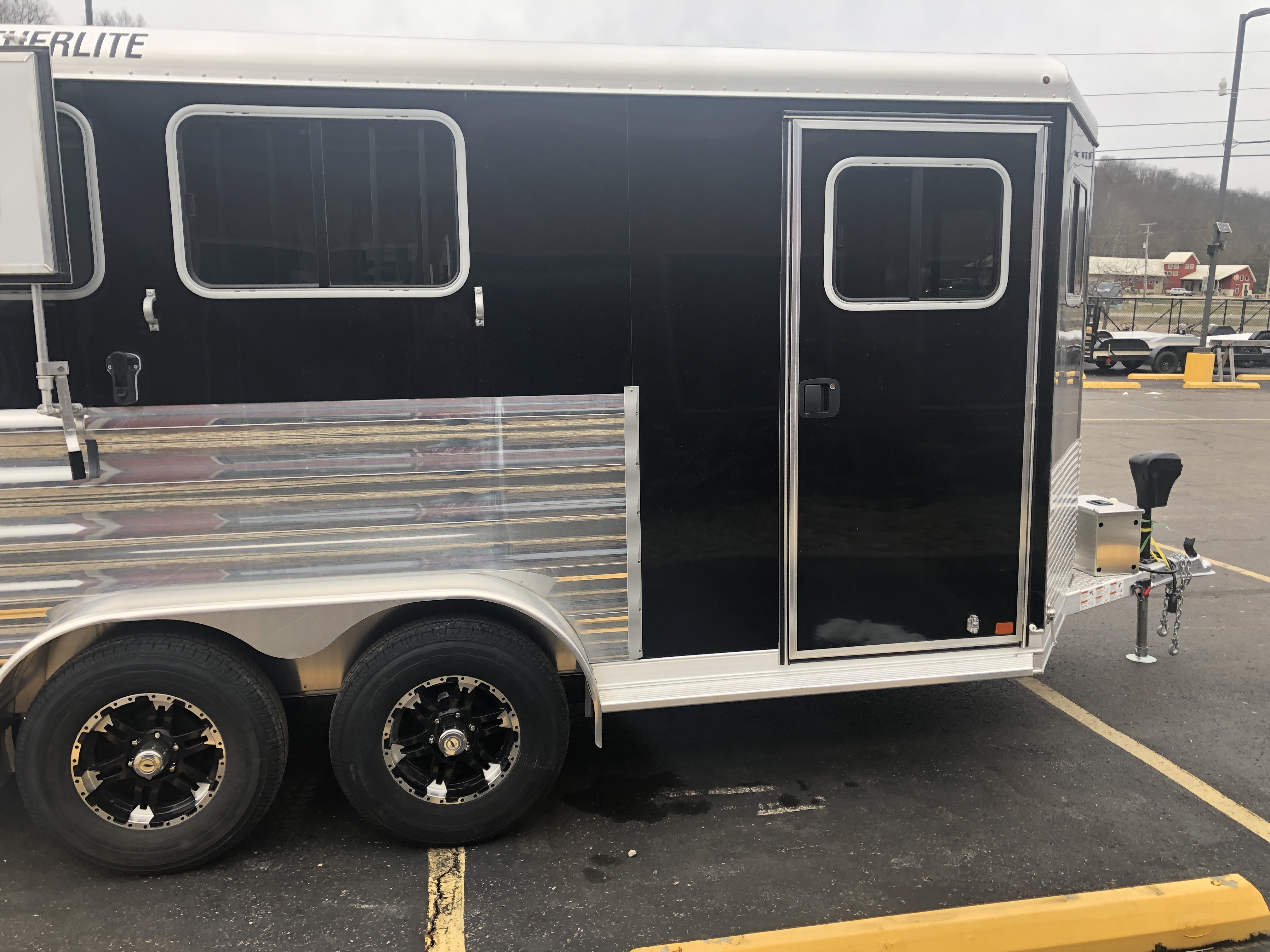

| Doors | 36″ x 74″ square camper door with window & deadbolt. Pocket screen door optional. |
| Floor/Floor Mats | Interlocking smooth extruded aluminum floor; Rubber floor mats in horse area |
| Roof Vents | One pop-up roof vent per horse |
| Interior Lights | LED light strip in horse area (one per 2 horses); LED light strip in rear tack; LED light strip in dressing room; Lights are 12V/20W |

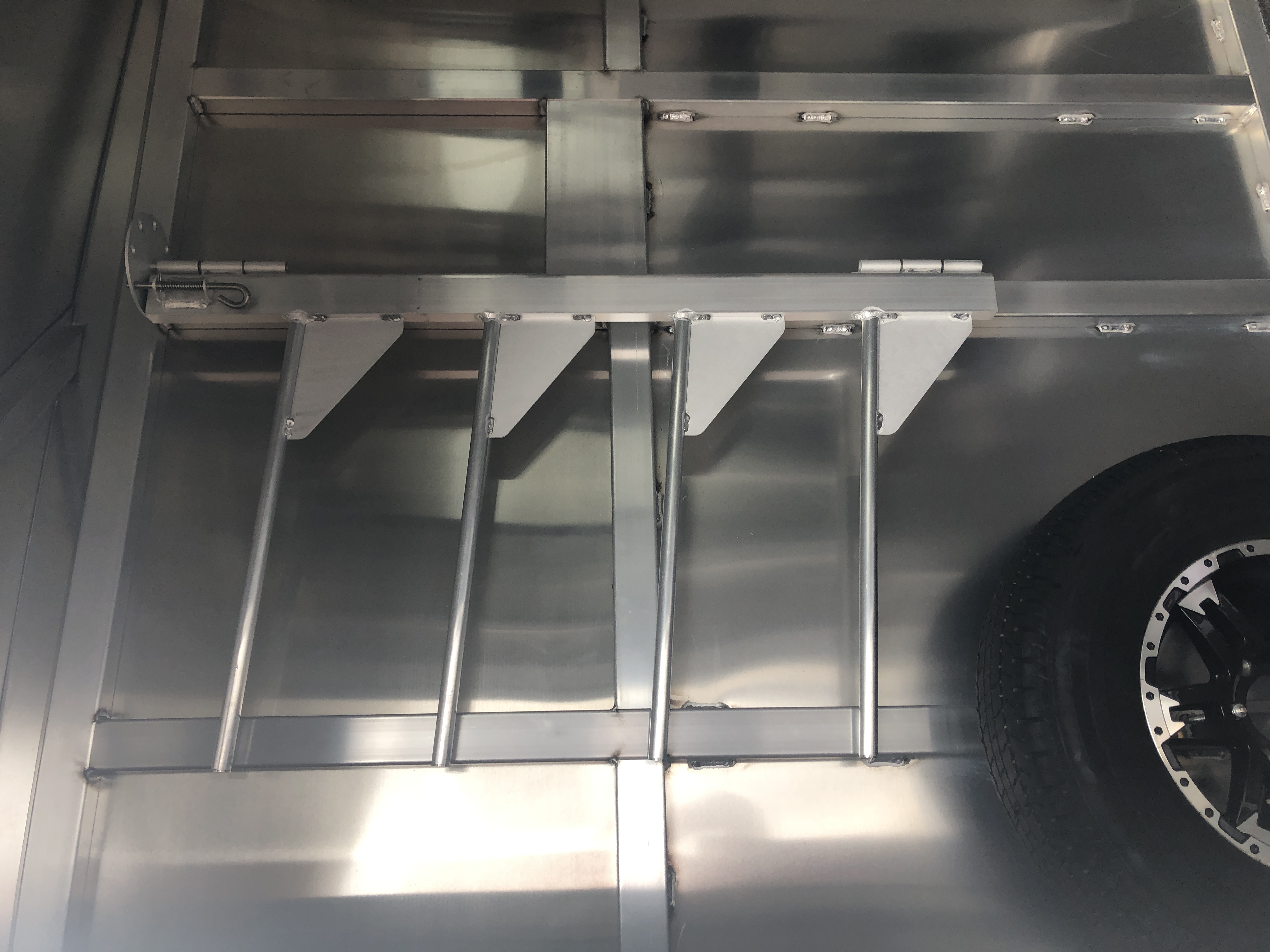

| Dressing Room | Clothes rod; Turf on floor; Brush tray; One swinging blanket bar; Aluminum halter hooks |
| Tie Rings | Five inside tie rings per horse & 1 outside tie ring per horse per side |
| Axles | Two rubber torsion axles with electric brakes / 3500# |
| Tire/Rim | 16″ 6-hole aluminum wheels with Goodyear ST235/80R16 Load Range E tires (Qty: 4); Matching spare tire and tire carrier standard |
| Exterior Lights | LED clearance lights and 4 LED stop/turn lights; LED load light above rear load door with switch at rear |
| Butt/Chest Bars | Optional; Nylon strap behind rear horse |
| Gravel Guard | Standard |
| Coupler | 2 5/16″ coupler; Crank type jack with wheel |
| Other | Rubber dock bumper; Aluminum running boards; 1 5/8″ side posts
Electric Jack. Horse Area Fans Battery Package |
Info
Industry
Trailer
Make
Featherlite Trailers
Model
2H Slant Load Custom Tack Horse Trailer
Trim
Base
Year
2026
Msrp
40253.46
Price
31995.00
Stock Number
TC165571
Category
Horse
Subcategory
Bumper
Condition
New
Dry Weight
2260
Color
Black
Hitch Type
Bumper Pull
Axles
2

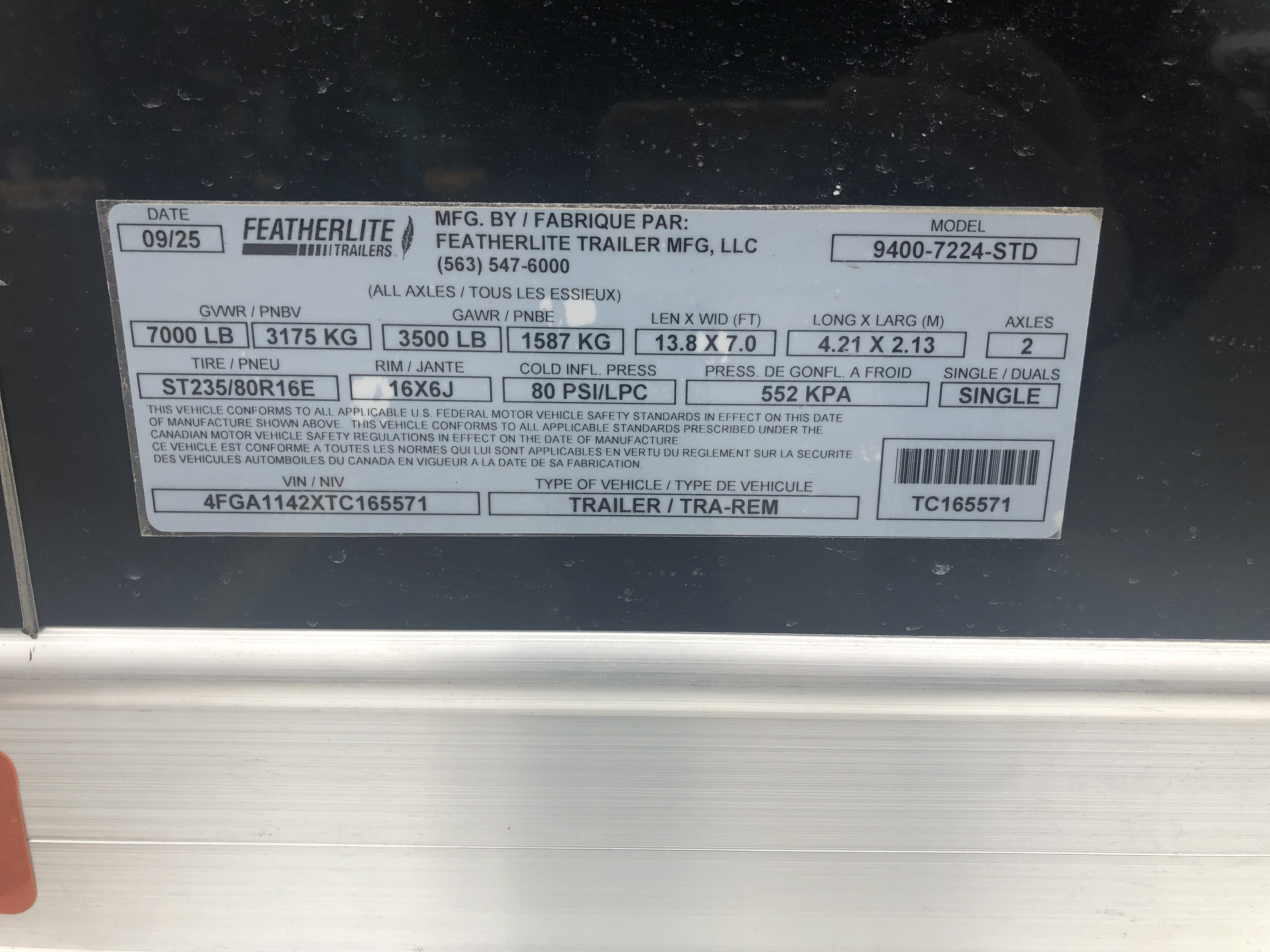

Gvwr
7000
