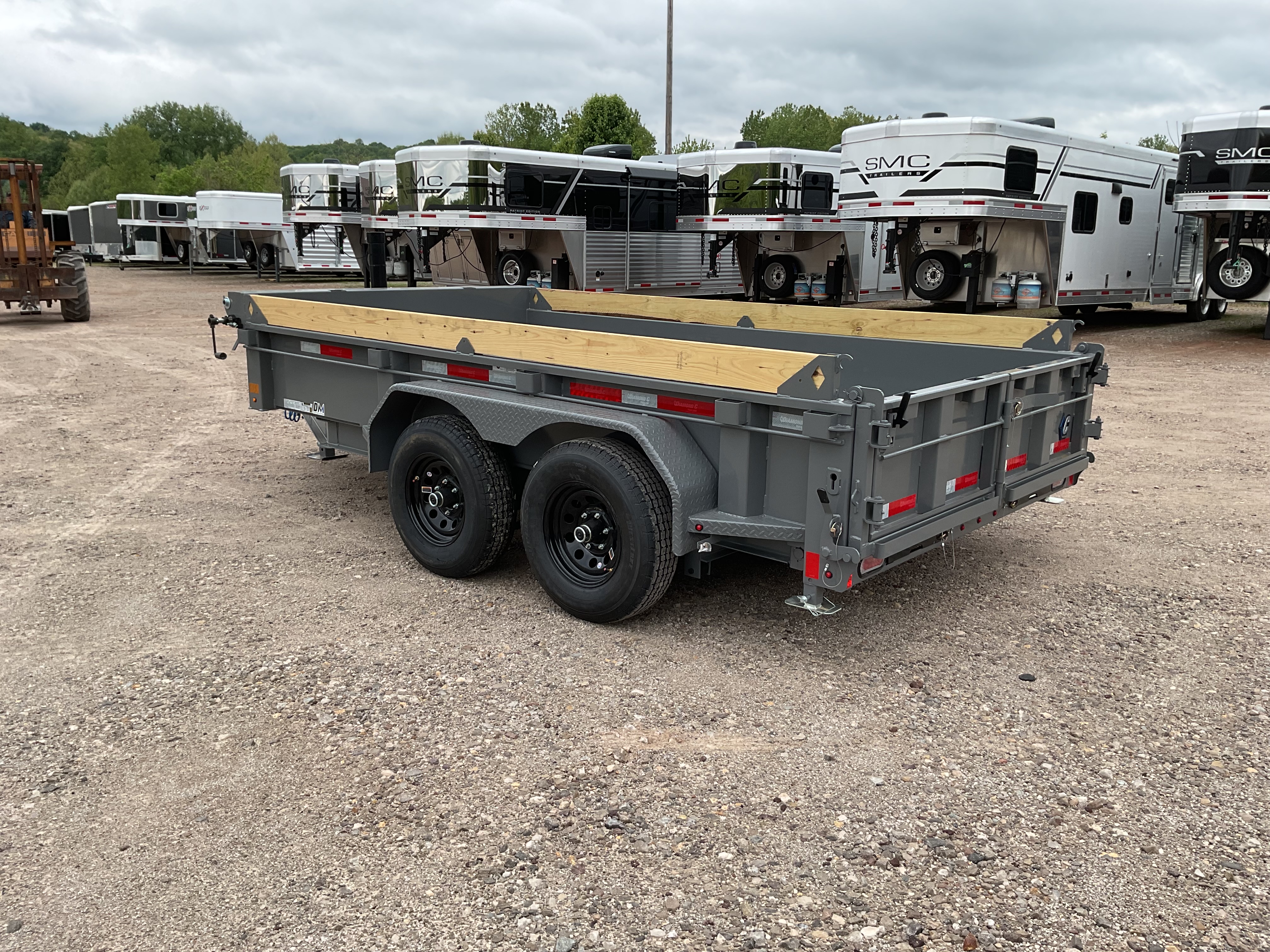

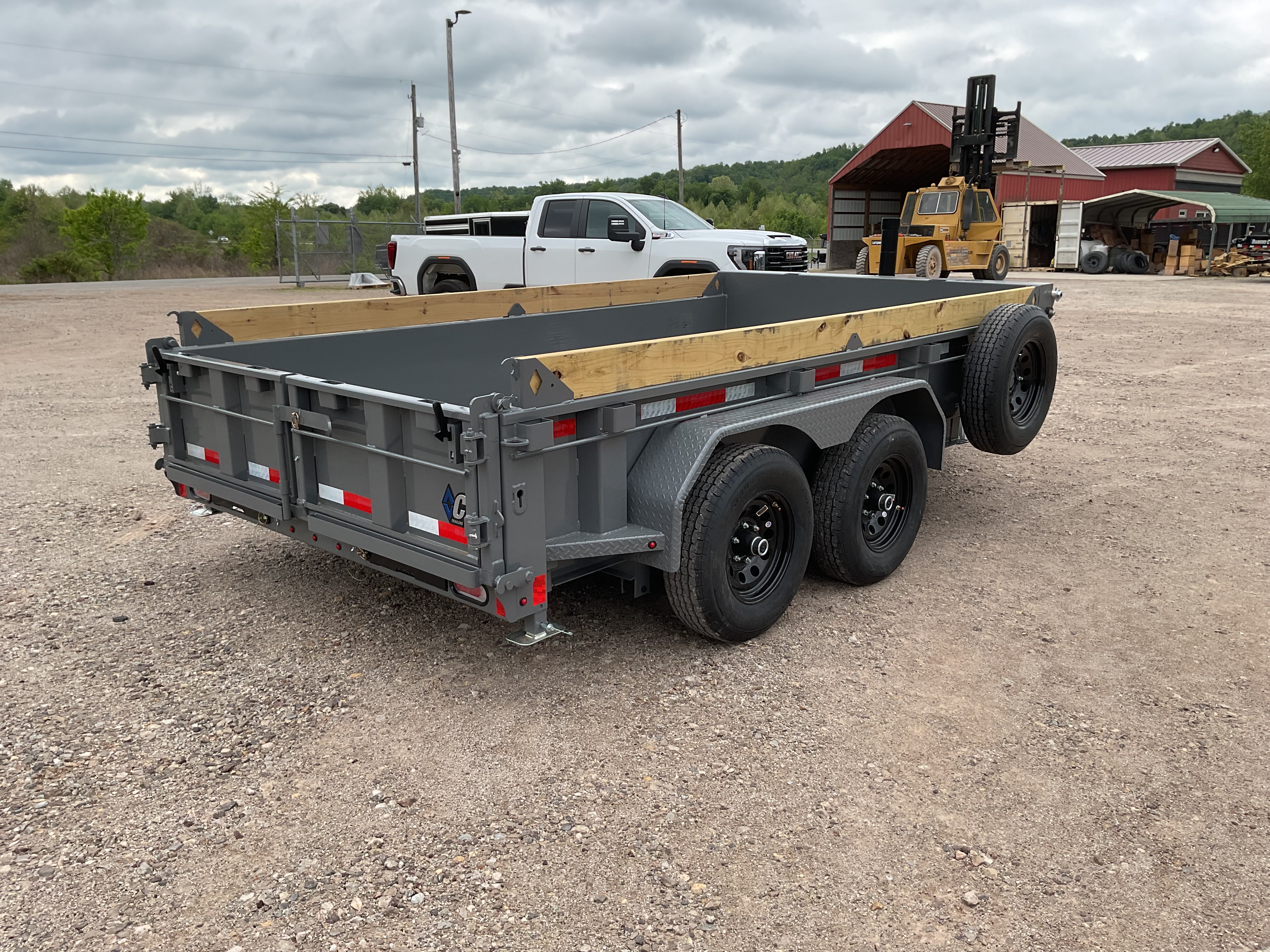

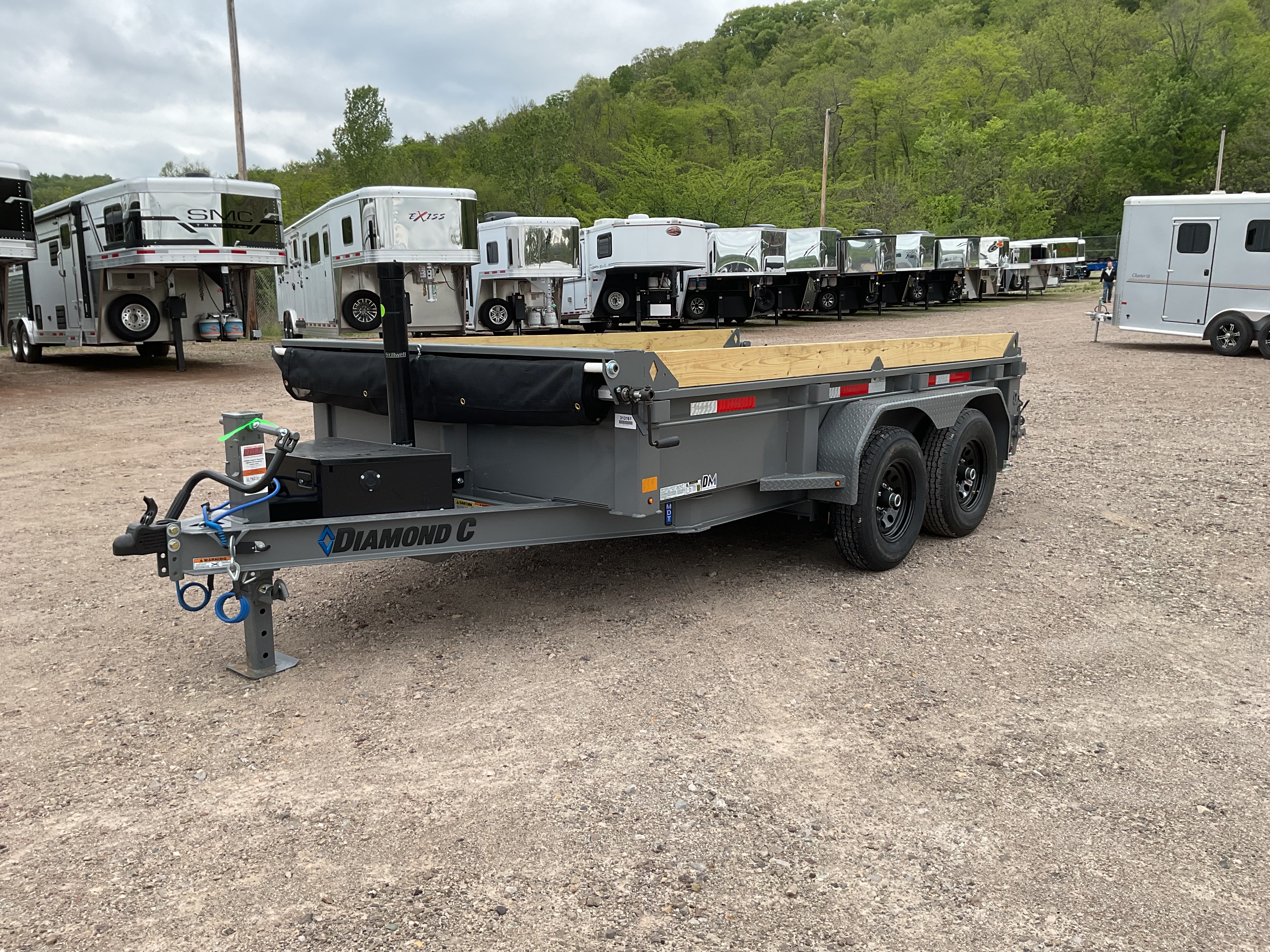

2026 Diamond C 12' Low Pro Dump Trailer 12' x 77"- T1313161

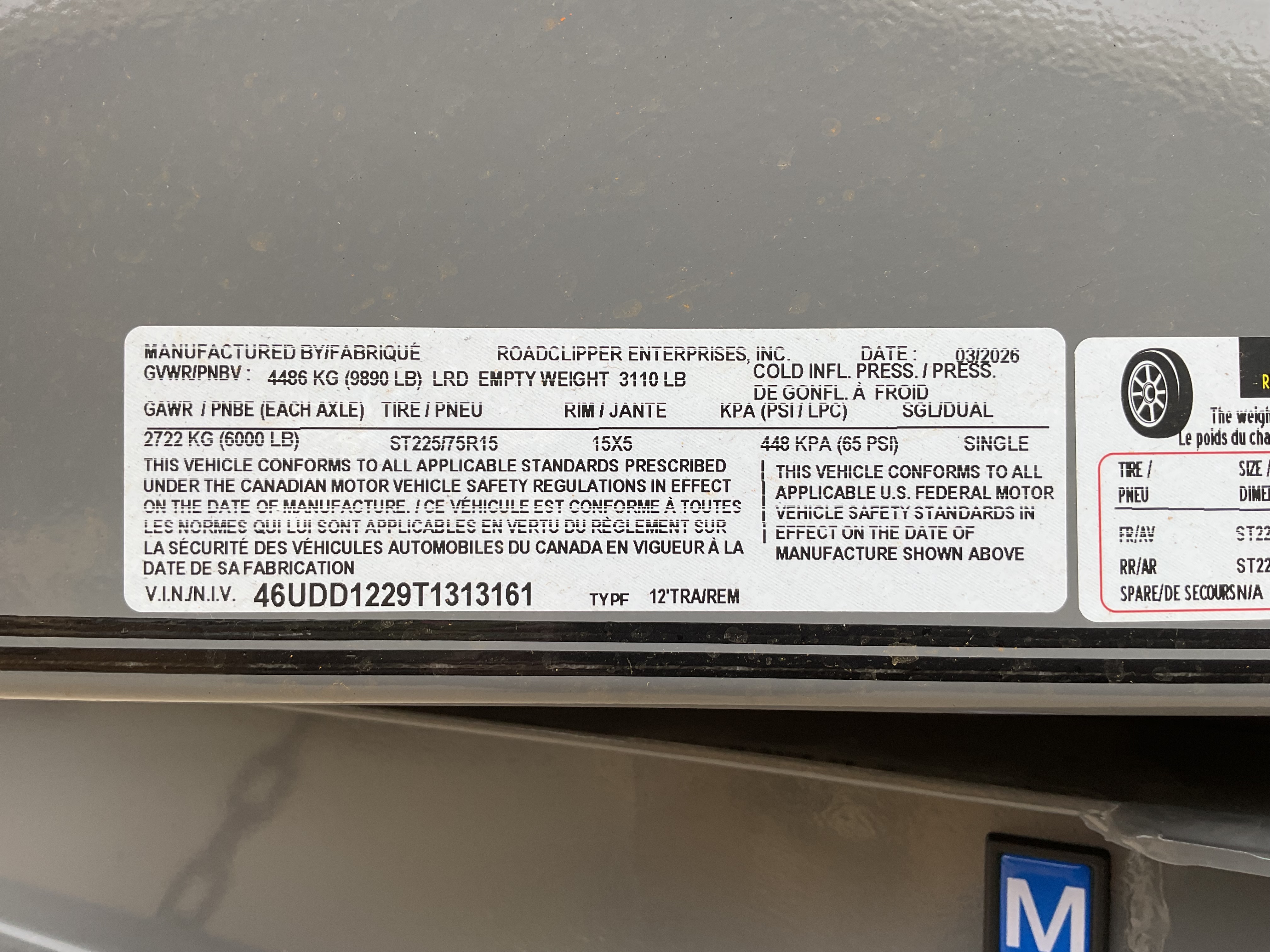

GVWR - 206 Package (9,890 lb GVWR)
Length/Width - 12' x 77"
Axles - 2 - 6K Super Lube, Electric Brake, Drop
Suspension - 5-Leaf Slipper Springs
Pull Type - Bumper Pull
Dump Main Frame - 6" I-Beam
Dump Body Frame - 3" x 2" Rectangle Tube
Body Thickness - 12 ga Body, Sides Integral with Floor
Sides - 18" Tall Sides (12 ga)
Side Extensions - Board Brackets w/ Raised Front
Hoist - 3 Stage Telescopic Cylinder
Ramps - 60" Rear Slide-In Ramps (2" Square Tube)
Ramps - Rear Stabilizer Drop Legs
Gate - 3-Way Gate (with Hold Back System)
Paint Type - DM Difference Maker Coating System
Paint Color - Cement Gray
Cross-Members - 3" I-Beam on 16" Centers
Coupler - 2-5/16" - 21,000 lb Demco EZ-Latch, Adjustable Channel
Jack - 12K Jack Upgrade
Hydraulic Power - Power Up, Gravity Down
Bed Control - Corded Remote, 14'
Battery/Charger - Group 27 Series Battery w/110V 5amp Charger
Fenders - 14 ga Teardrop, Diamond Plate
Lights - All LED Lights
Stake Pockets - Stake Pockets on each Upright
Tie Downs - 4 - 1/2" D-Rings
Tarp - 18' Heavy Duty, Black Mesh Tarp
Tire Size - 225/75R15 10 Ply Radial
Wheel Color - Black
Spare Mount - Spare Mount
Spare Tire - Add Matching Spare Tire For $175
