2025  Diamond C  Tri-Axel 16' (24K) Dump Trailer  16' x 82" - S1298411

Length/Width - 16' x 82" - 307 pkg

Axles - 3 - 7,000 lb Super Lube

Axles - Straight Axles (+4" ground clearance)

Brakes - Electric Drum

Suspension - Slipper Roller

Pull Type - Bumper Pull

Dump Main Frame - Engineered Beam Frame

Dump Body Frame - 5" x 2" x 3/16" Rectangle Tube

Body Thickness - 10 ga Body, Sides Integral with Floor

Sides - 24" Tall Sides (10 ga)

Side Extensions - Board Brackets w/ Raised Front

Hoist - 3 Stage Telescopic Cylinder standard

Ramps - HD 72" Rear Slide-In Ramps (3x2" Rectangle Tube)

Ramps - Rear Stabilizer Drop Legs

Gate - 3-Way Gate (with Hold Back System)

Paint Type - DM Difference Maker Coating System

Paint Color - Cement Gray

Cross-Members - 3" I-Beam on 12" Centers

Fenders - 14 ga Teardrop, Diamond Plate

Coupler - 2-5/16" - 25,000 lb Demco EZ-Latch, Flat-Mount

Jack - 12K Simol 2-Speed Drop-Leg Jack

Storage - HD V-Tongue Lid

Hydraulic Power - Power Up, Gravity Down (with High Flow KTI Pump)

Bed Control - Corded Remote, 14'

Bed Control - Wireless Bluetooth Bed Control Remote

Battery/Charger - Group 27 Series Battery w/110V 5amp Charger

Battery/Charger - Solar Charging System, 7 watt

Steps - 24" Side Step

Fork Holder - Modify My Step into a Fork Holder/Step Combo

Lights - All LED Lights

Stake Pockets - Stake Pockets on each Upright

Tie Downs - 4 - 5/8" D-Rings

Tie Downs - Extra 5/8" D-Rings 2

Tarp - Long Arm, Easy Roll Tarp System

Wiring - Sealed Wiring Harness

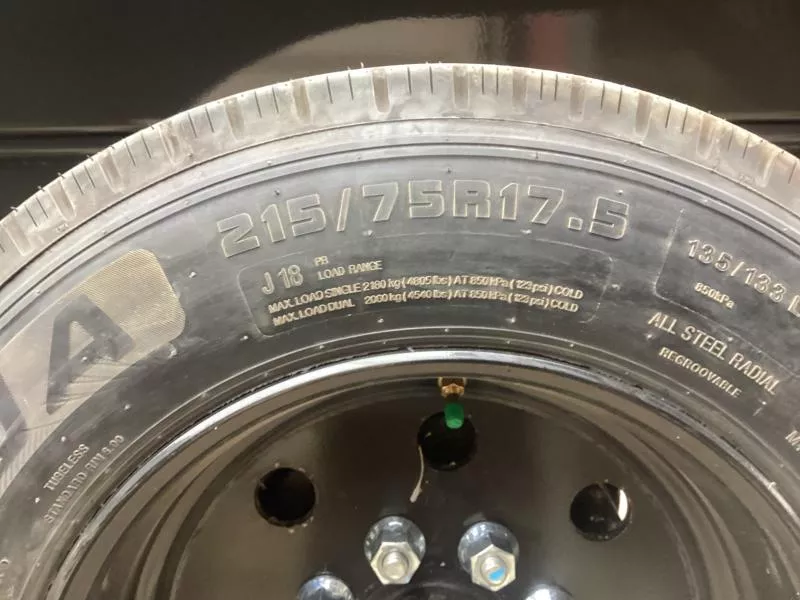

Tire Size - 215/75R17.5 18 Ply Radial

Wheel Color - Black

Spare Mount - Spare Mount

Spare Tire - Add Matching Spare Tire for $405.00
