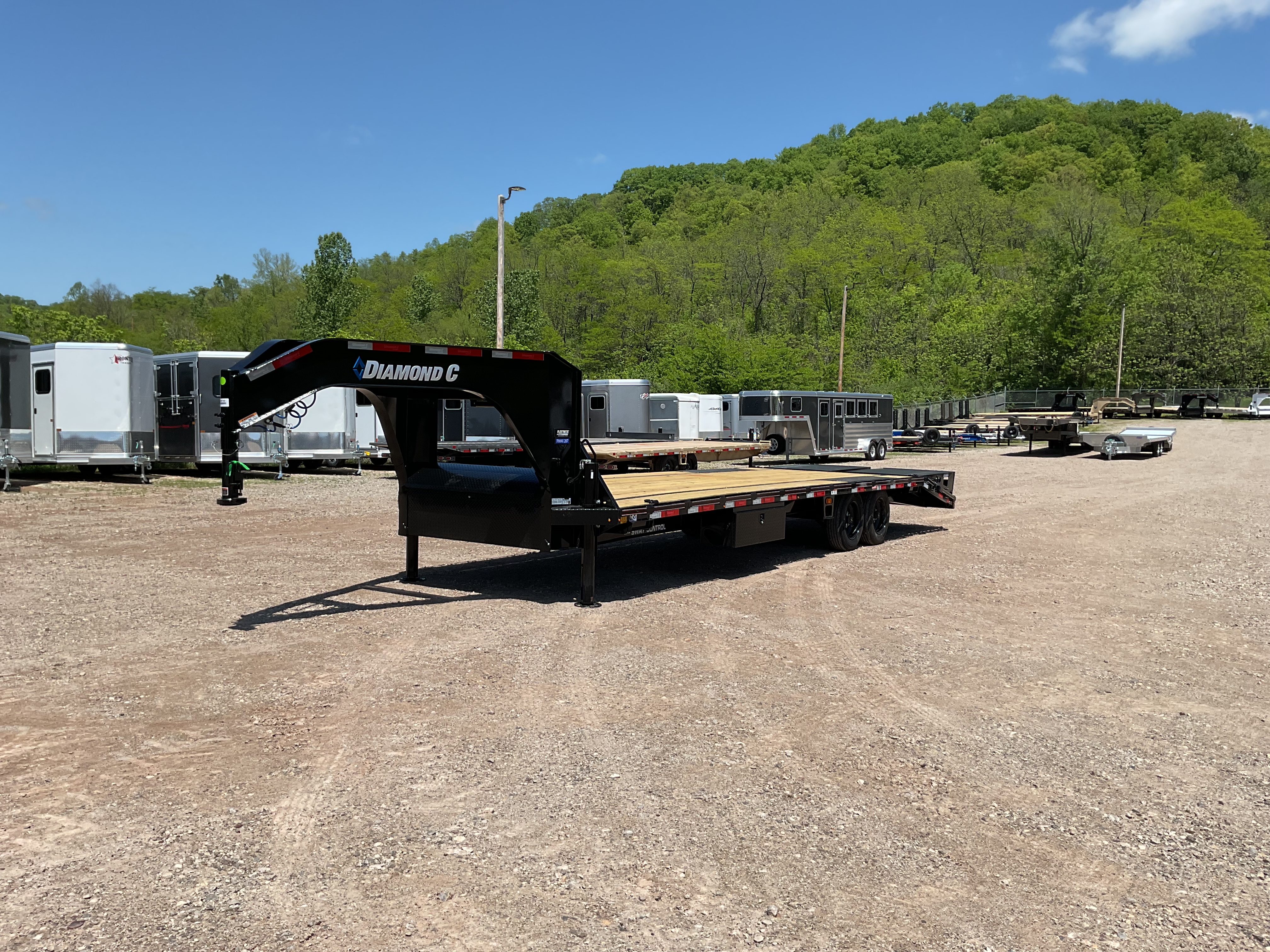

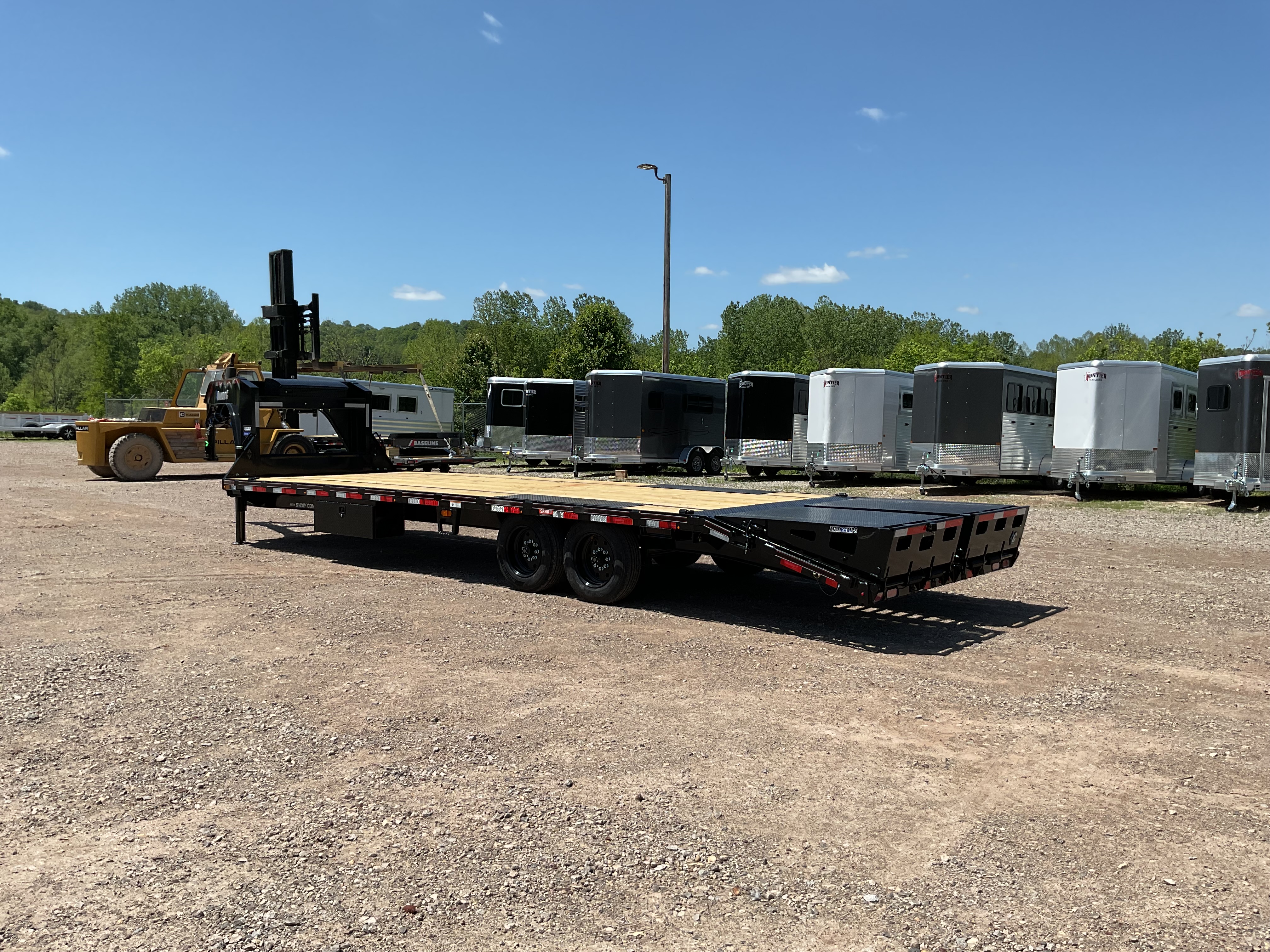

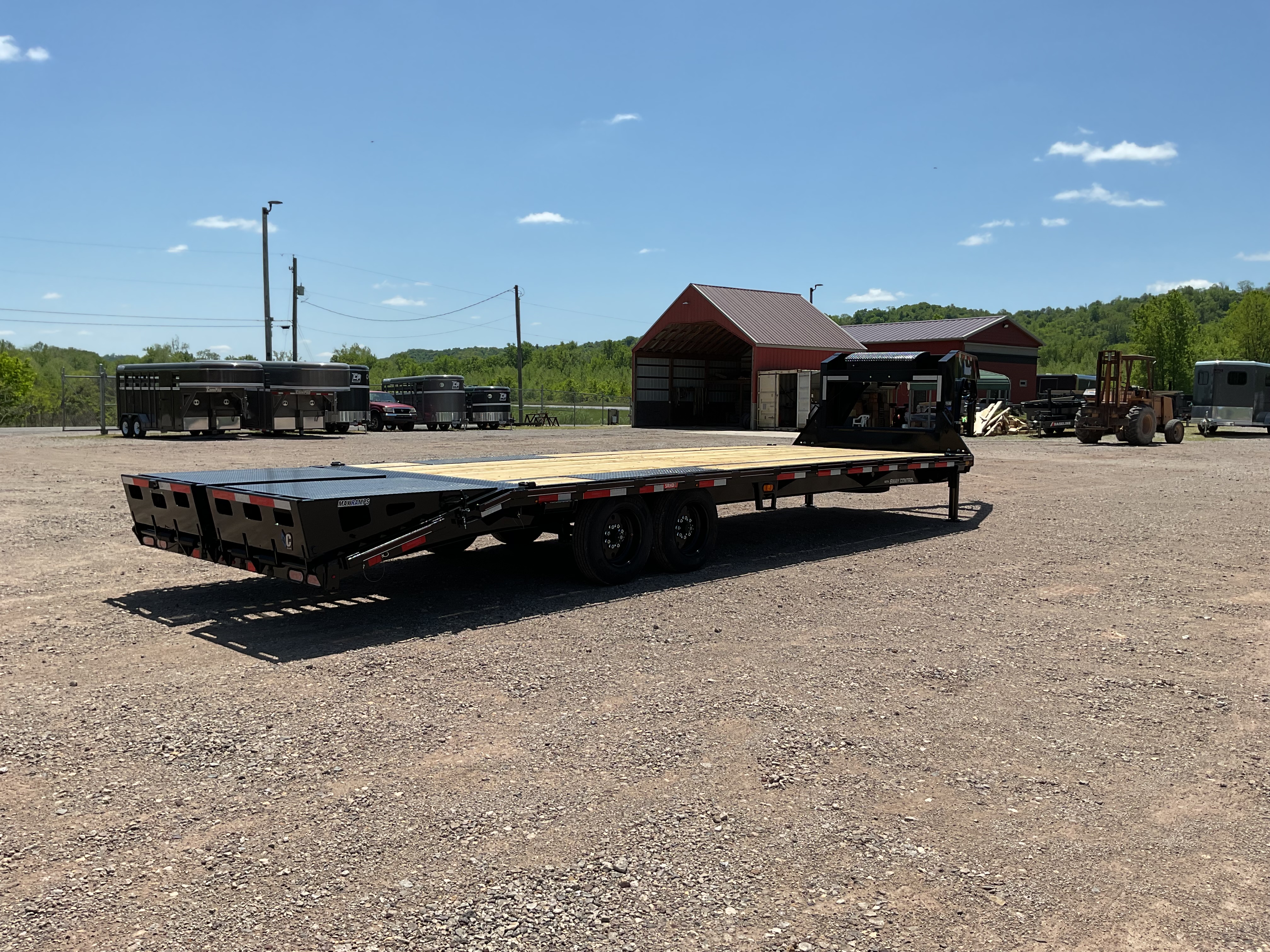

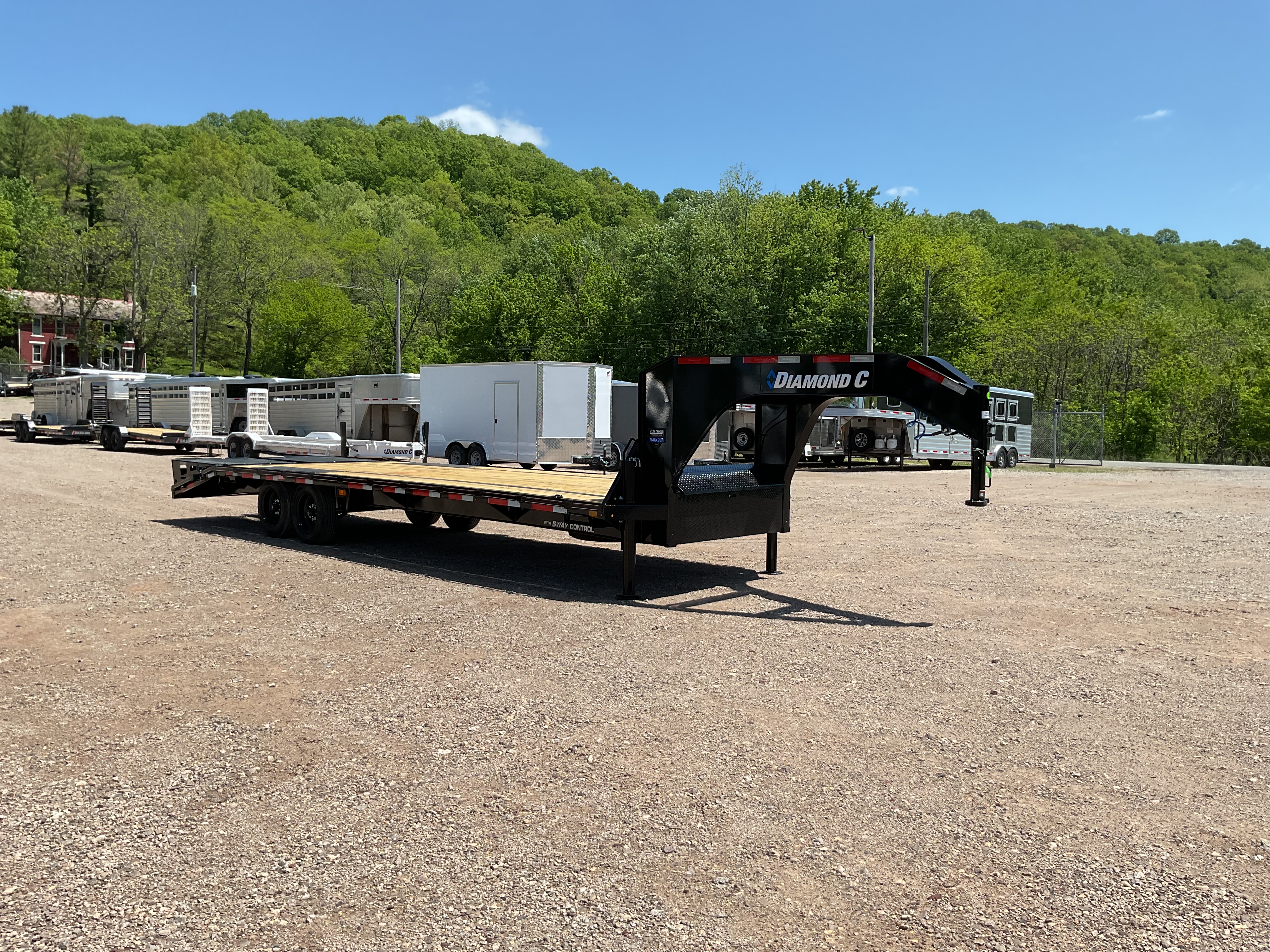

2025  Diamond C  28'(23'+5') TILT Flatbed Equipment Trailer  - S1300740

Loading Style - Max Ramps
Length/Width - 28' x 102" MR

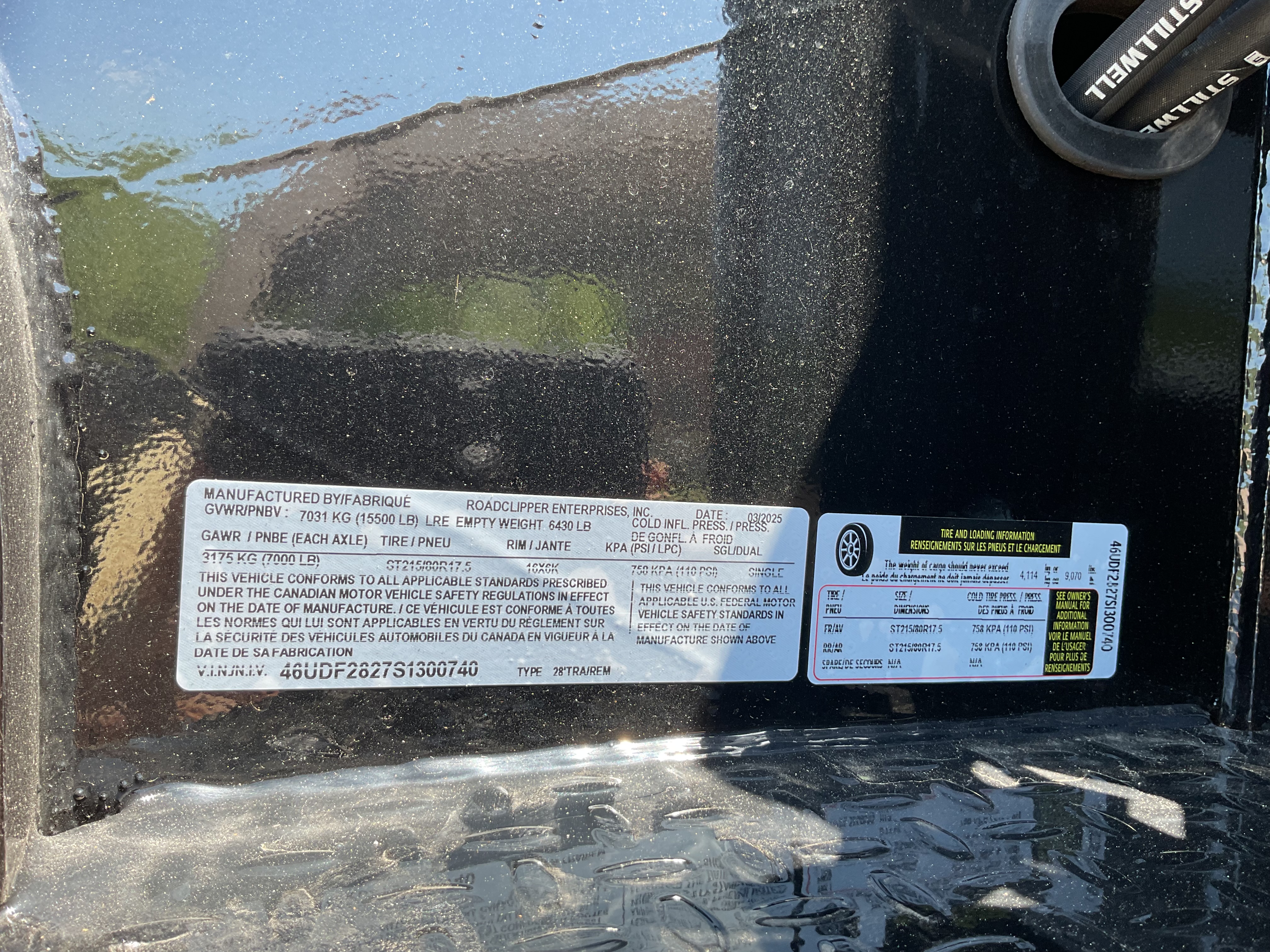

GVWR - 15,500 lb
Dove - 60" Dovetail with 2" x 2" x 1/8" Angle Cleats (Max Ramps)
Axles - 2 - 7,000 lb Super Lube
Brakes - Electric Drum
Suspension - Slipper Roller
Pull Type - 12" Engineered Gooseneck
Frame - 14" Engineered Beam 2.0
Jack - 2 - 20,000 lb Hydraulic Jacks
Paint Type - DM Difference Maker Coating System
Paint Color - Arctic White
Floor - 2" Treated Lumber
Cross-Members - 3" I-Beam on 12" Centers w/ Formed Gussets
Coupler - 2-5/16" Ball - 25,000 lb RAM Coupler
Storage - Diamond Plate Neck Box w/ Gas Shock Assisted Lid
Storage - Neck Storage Box in Winch Tray
Deck on the Neck - None
Winch - Winch Tray
Lace Rail - 5" Channel
Stake Pockets - 2" x 3/8" Rub Rail w/ Stake Pockets & Pipe Spools
Slide Track & Ratchets - No Slide Track
Tie Downs - 5/8" D-Rings
Steps - Front Retractable & Mid-Turn
Steps - Extra Retractable Steps (pair)
Lights - All LED Lights
Lights - Extra 3/4" Clearance Lights
Sway Control - Add Sway Control Pipe
Wiring - Sealed Wiring Harness

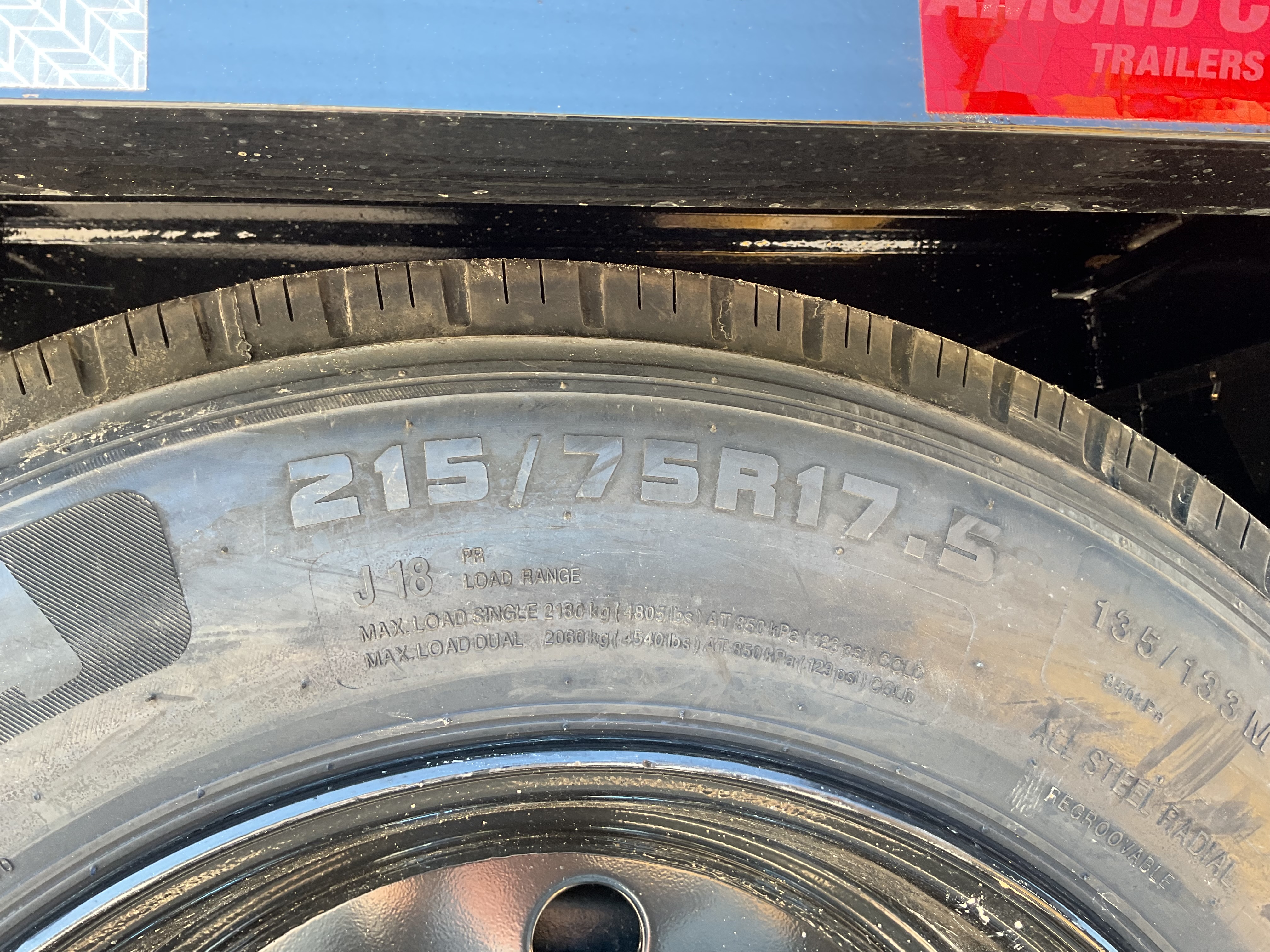

Tire Size - 215/75R17.5 18 Ply Radial
Wheel Color - Black
Spare Mount - Under-Frame Spare Mount
Spare Tire - Add Matching Spare Tire for $405.00
