2025 Diamond C 16' Tall Sides Tri-Axle Dump Trailer - S1303027
Get in Touch
Dealer Notes
| Length/Width - 16' x 82" - 307 pkg | ||||
| Axles - 3 - 7,000 lb Super Lube | ||||
| Axles - Straight Axles (+4" ground clearance) | ||||
| Brakes - Electric Drum | ||||
| Suspension - Slipper Roller | ||||
| Pull Type - 12" Engineered Gooseneck Package | ||||
| Dump Main Frame - Engineered Beam Frame | ||||
| Dump Body Frame - 5" x 2" x 3/16" Rectangle Tube | ||||
| Body Thickness - 10 ga Body, Sides Integral with Floor | ||||
| Sides - 32" Tall Sides (10 ga) | ||||
| Side Extensions - Board Brackets w/ Raised Front | ||||
| Hoist - 3 Stage Telescopic Cylinder | ||||
| Ramps - HD 72" Rear Slide-In Ramps (3x2" Rectangle Tube) | ||||
| Ramps - Rear Stabilizer Drop Legs | ||||
| Gate - 3-Way Gate (with Hold Back System) | ||||
| Paint Type - DM Difference Maker Coating System | ||||
| Paint Color - Arctic White | ||||
| Cross-Members - 3" I-Beam on 12" Centers | ||||
| Deck on the Neck - None | ||||
| Gooseneck Coupler - Curt Cushion Coupler | ||||
| Jack - Dual 20,000 lb Hydraulic Jacks | ||||
| Storage - Full Width Diamond Plate Neck Box | ||||
| Hydraulic Power - Power Up, Gravity Down (with High Flow KTI Pump) | ||||
| Tarp - ShurLink Electric Tarp | ||||
| Bed Control - Corded Remote, 14' | ||||
| Bed Control - Shurco Wireless Remote | ||||
| Battery/Charger - Group 27 Series Battery w/110V 5amp Charger | ||||
| Battery/Charger - Solar Charging System, 7 watt | ||||
| Fenders - 3/16" Diamond Plate, Super Heavy Duty, Triple Axle | ||||
| Steps - 24" Side Step | ||||
| Lights - All LED Lights | ||||
| Stake Pockets - Stake Pockets on each Upright | ||||
| Tie Downs - 4 - 5/8" D-Rings | ||||
| Tie Downs - Extra 5/8" D-Rings | ||||
| Fork Holder - Add Fork Holders | ||||
| Wiring - Sealed Wiring Harness | ||||

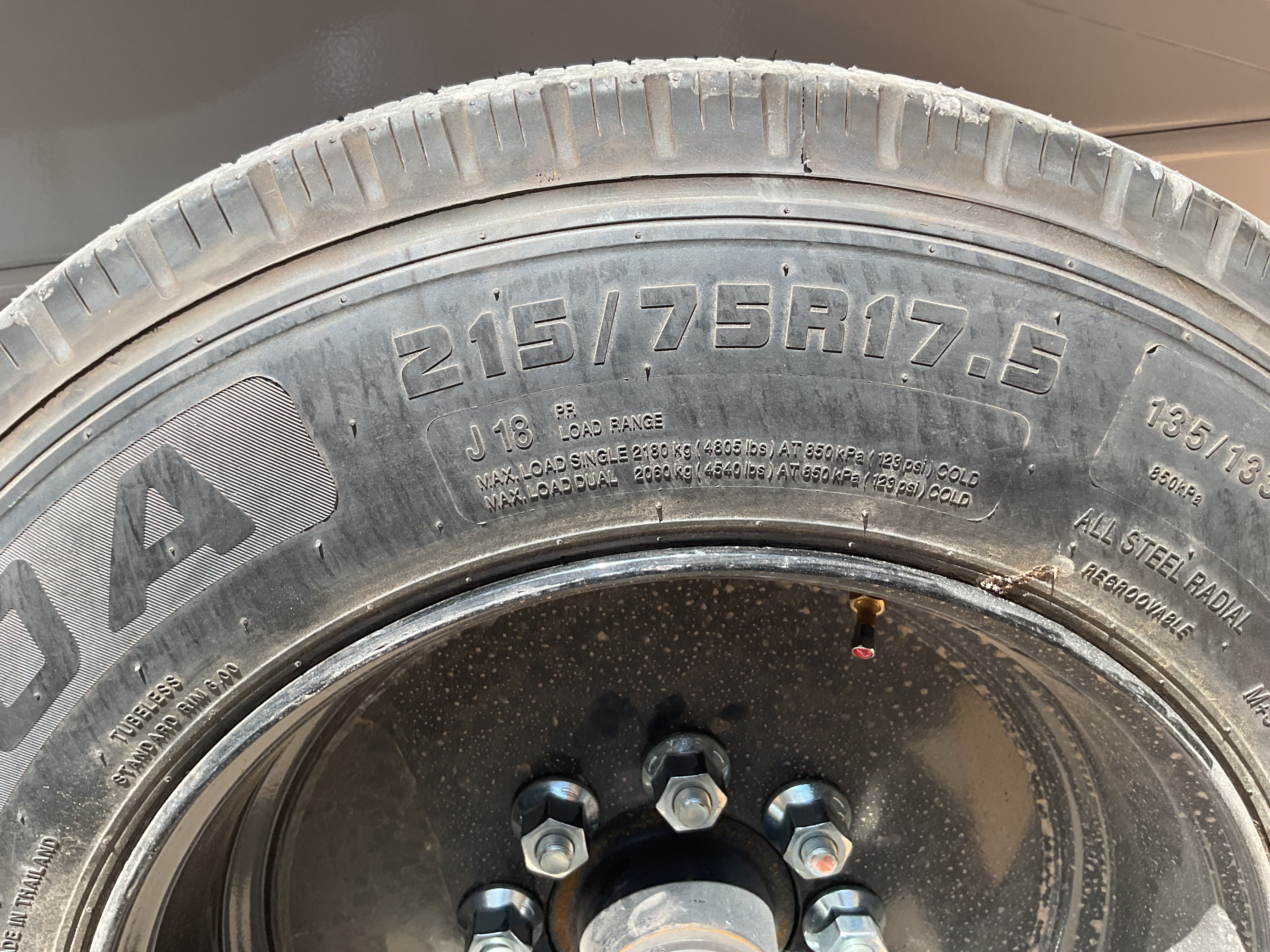

| Tire Size - 215/75R17.5 18 Ply Radial | ||||
| Wheel Color - Black | ||||
| Spare Mount - Fold-Down Spare Mount in Gooseneck | ||||
| Spare Tire - Add Matching Spare Tire For | $405.00 |
Info
Industry
Trailer
Make
Diamond C
Model
16' Tall Sides Tri-Axle Dump Trailer
Trim
Base
Year
2025
Msrp
37100.85
Price
31995.00
Stock Number
S1303027
Category
Dump
Subcategory
Gooseneck
Condition
New
Dry Weight
6920
Color
white
Hitch Type
Gooseneck
Axles
3
Length
16'
Width
82"
Gvwr
24000
