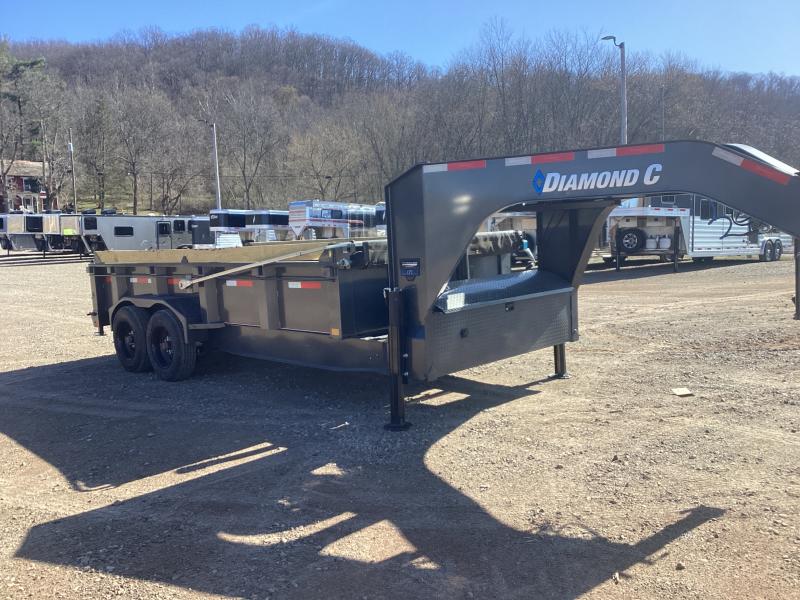

2025  Diamond C  16' Tall Sides Dump Trailer  - S1298050

Length/Width - 16' x 81" - 208 pkg
Axles - 2 - 8,000 lb Oil-Bath
Brakes - Electric Drum
Suspension - Slipper Roller
Pull Type - 12" Engineered Gooseneck Package
Dump Main Frame - Engineered Beam Frame
Dump Body Frame - 5" x 2" x 3/16" Rectangle Tube
Body Thickness - Super Duty Body Upgrade - 7 ga (3/16") Body, Floor & Sides
Sides - 24" Tall Sides (7 ga)
Side Extensions - Board Brackets w/ Raised Front
Hoist - 3 Stage Telescopic Cylinder
Ramps - HD 72" Rear Slide-In Ramps (3x2" Rectangle Tube)
Ramps - Rear Stabilizer Drop Legs
Gate - 3-Way Gate (with Hold Back System)
Paint Type - DM Difference Maker Coating System
Paint Color - Carbon Metallic Gray
Cross-Members - 3" I-Beam on 16" Centers
Gooseneck Coupler - RAM Coupler
Jack - Dual 20,000 lb Hydraulic Jacks
Storage - Full Width Diamond Plate Neck Box
Hydraulic Power - Power Up, Gravity Down (with High Flow KTI Pump)
Bed Control - Corded Remote, 14'
Battery/Charger - Group 27 Series Battery w/110V 5amp Charger
Fenders - 3/16" Diamond Plate, Super Heavy Duty
Steps - 24" Side Step
Lights - All LED Lights
Stake Pockets - Stake Pockets on each Upright
Tie Downs - 4 - 5/8" D-Rings
Tarp - Long Arm, Easy Roll Tarp System
Wiring - Sealed Wiring Harness

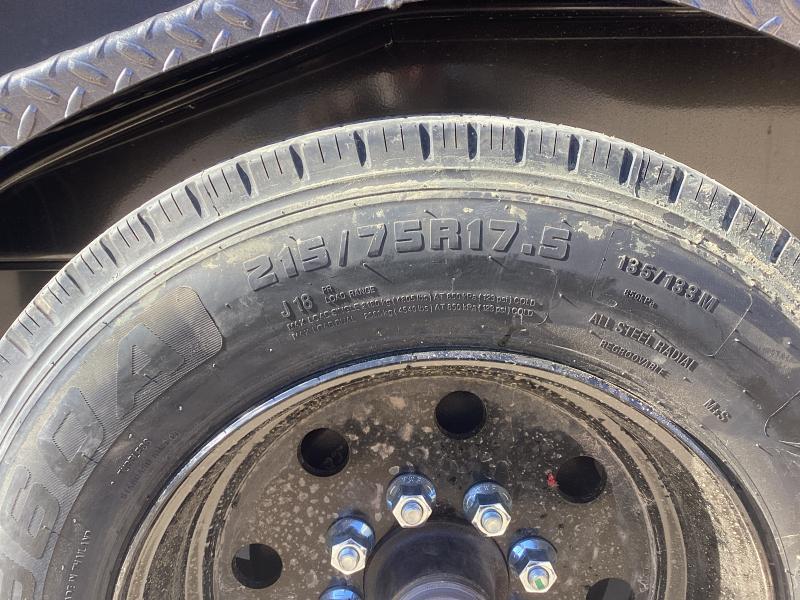

Tire Size - 215/75R17.5 18 Ply Radial
Wheel Color - Black
Spare Mount - Fold-Down Spare Mount in Gooseneck
