2026 Frontier Trailers 2H Ramp w/Swinging Tack Wall - TW154515

Box Length: 11’

Box Width: 80"

Interior Height: 90"

Bumper Pull, V-Nose w/ 24” Stone Guard

One Piece, .024 Aluminum Roof w/ Heavy Duty Radius

Roof Extrusion

Load Style: Slant Load - Step Up

Stall Width: 40-1/2"

Axles: 2-3500k Dexter Leaf Spring Braked Axles

Tires: 15" Gloss Black Mod, ST205/75R15

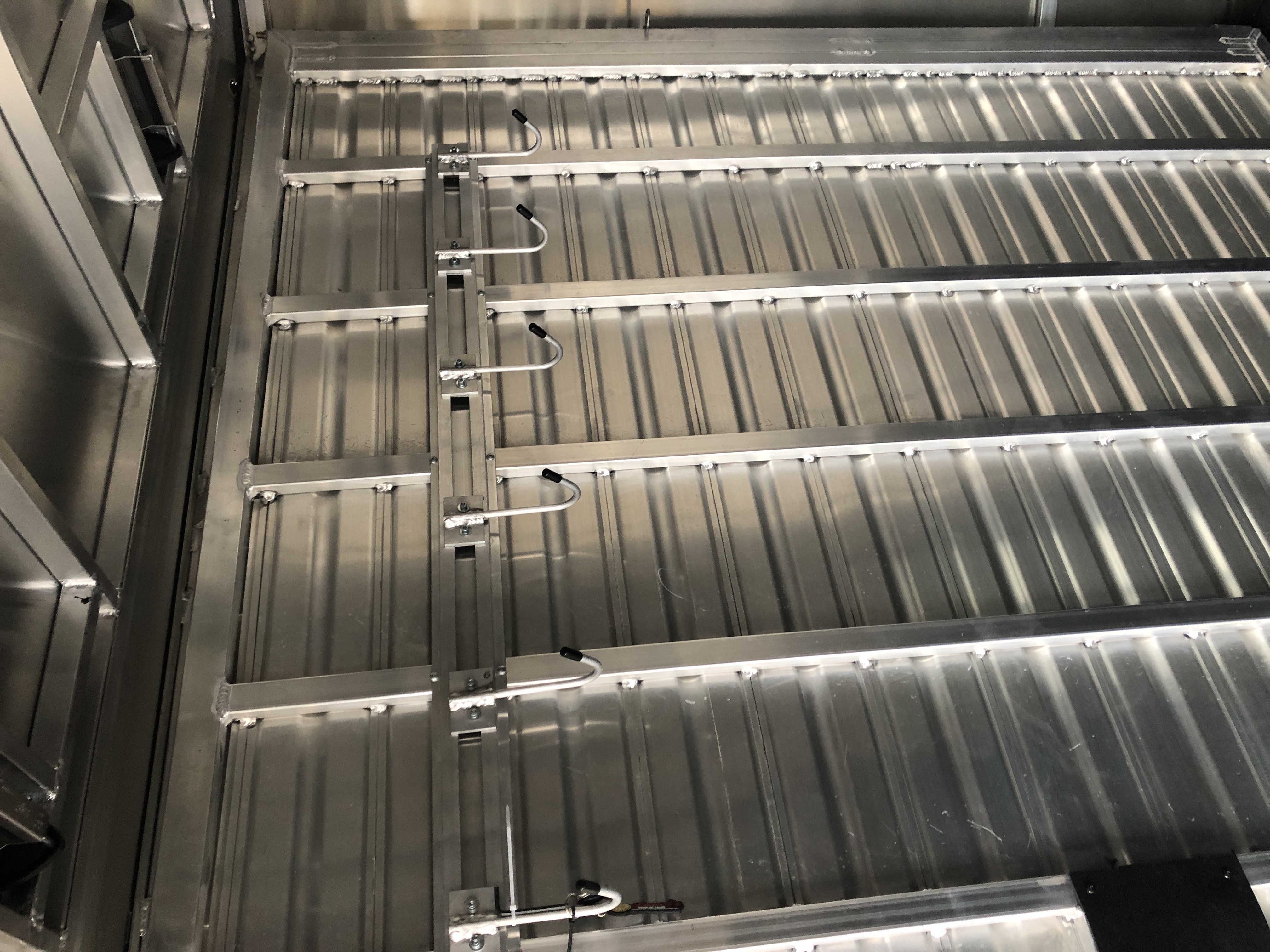

2” x 8” Pressure Treated Decking

.040 Aluminum Skin: Pre-Painted Exterior Side Sheets

"Improved" All Box Tube Aluminum Chassis

16" O/C - I-Beam Crossmembers

Exterior Light: LED

Heavy Duty Rear Step up Rubber Bumper

----------

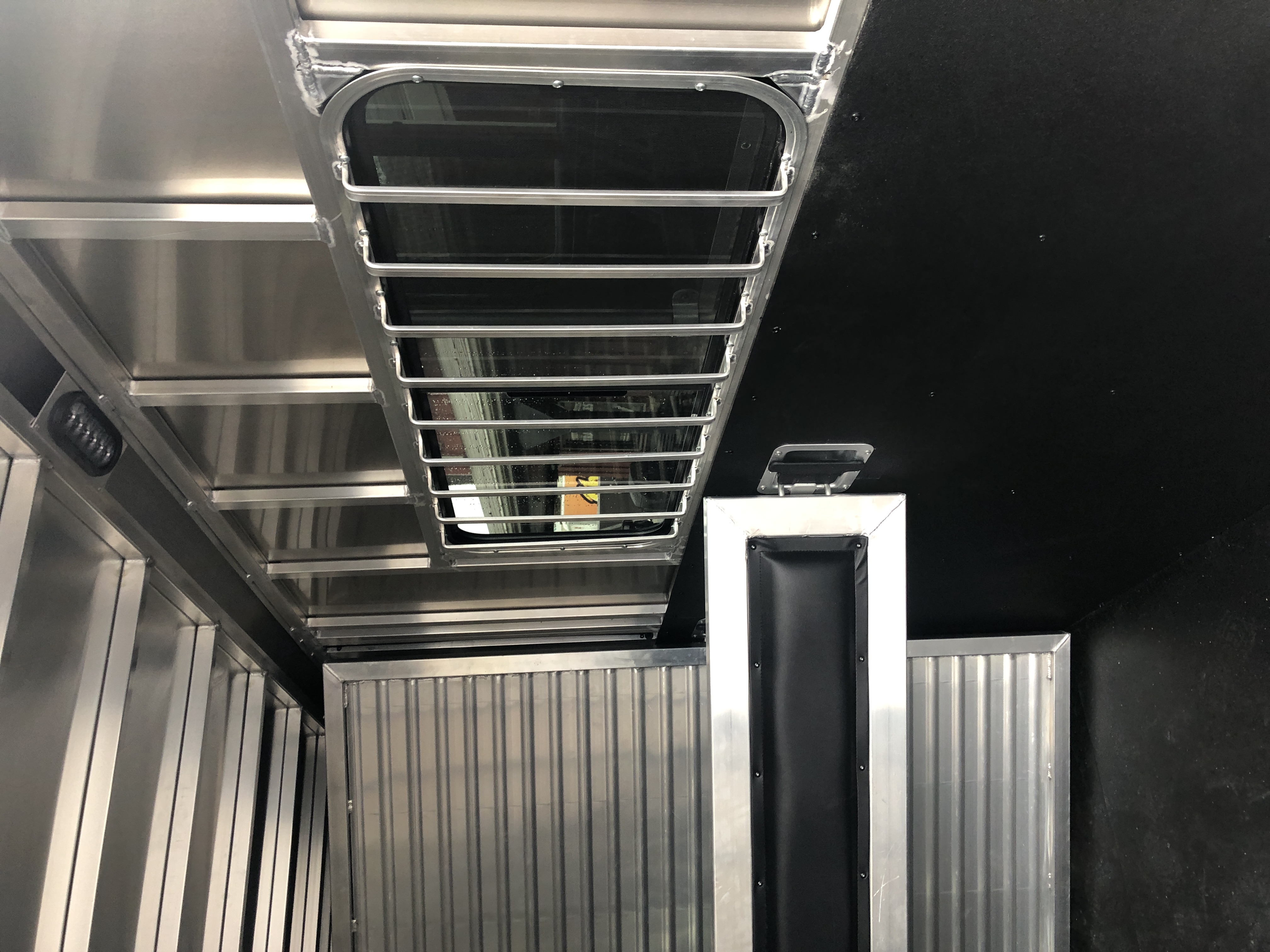

Dividers: Removable - "New" Jail Bar Head and Shoulder Divider

- w/ Pads (Custom Extrusion, New Latch System)

Feed Windows: 30" x 24" Radius Drop Down Feed Windows w/Integrated Face Bar (1 per stall)

53” x 19” Sliding Window on Rump Wall

Floor Mats: 1/2" Rubber Mats

Heavy Duty Wall Liner and Rear Door Liner in Horse Area

Safety Chains:  Across Rear Opening

Rear Gate: Ramp w/Tail Curtains

w/ Premium Aluminum Hinges (installed with huck bolts)

Tie Rings: (2) Inside and (1) Outside per Horse

-Interior Location: On the Driver Side Wall just above the Windows

Interior Light: (1) LED Dome Light in Horse Area with Exterior Cup Switch

(1) Double Action Pop-Up Vent (per Stall)

----------

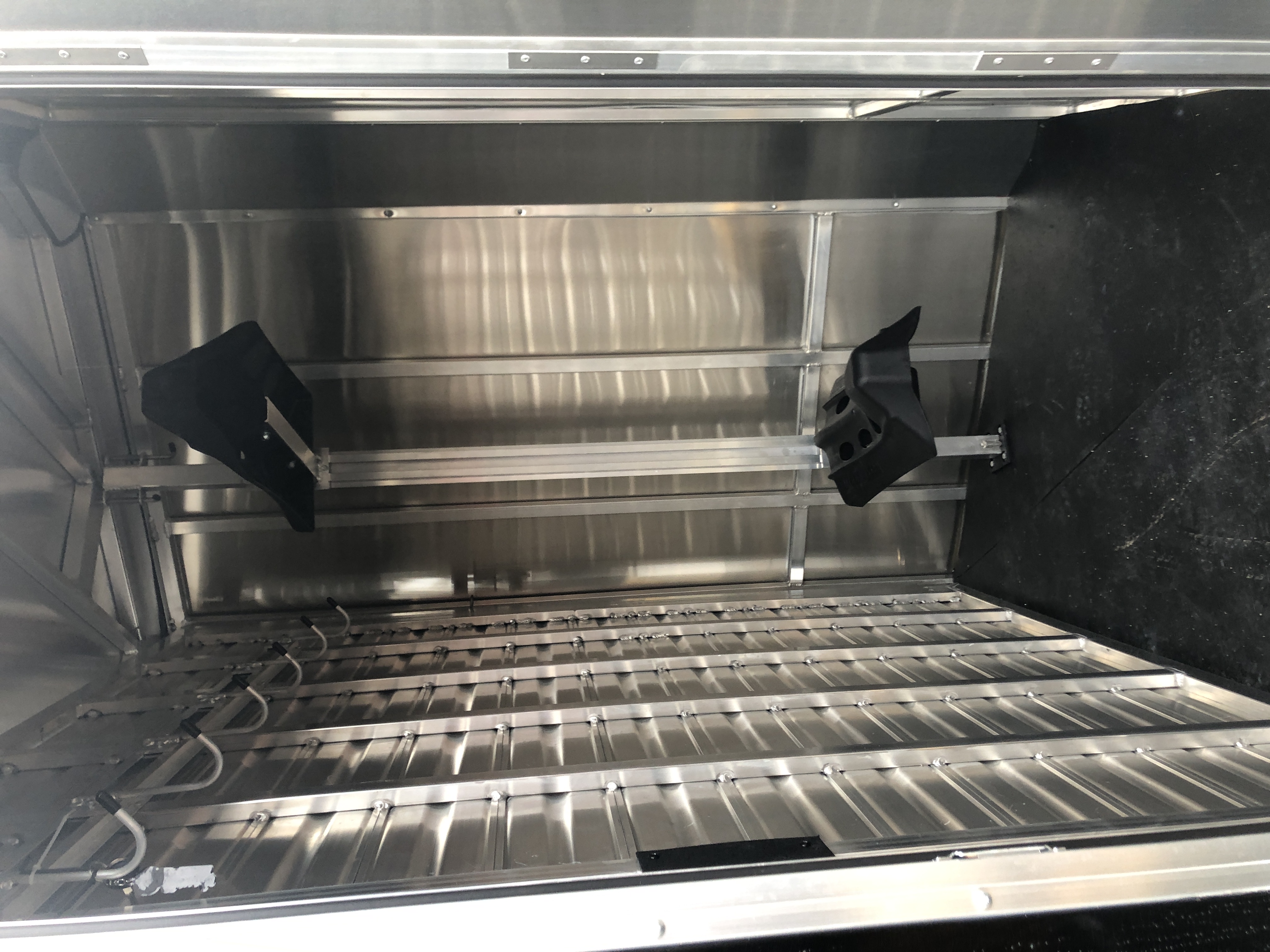

Front Tack Area:

Tack Wall: Swinging Tack Wall

Access: 32” x 72” Access Door w/Sliding Window, 0” Short-Wall

Floor Mats: 1/2" Rubber Mats

LED Dome Light, Removeable Saddle Tree, Bridle Hooks,

Brush Tray

SIDE TACK DOOR:  CURBSIDE
