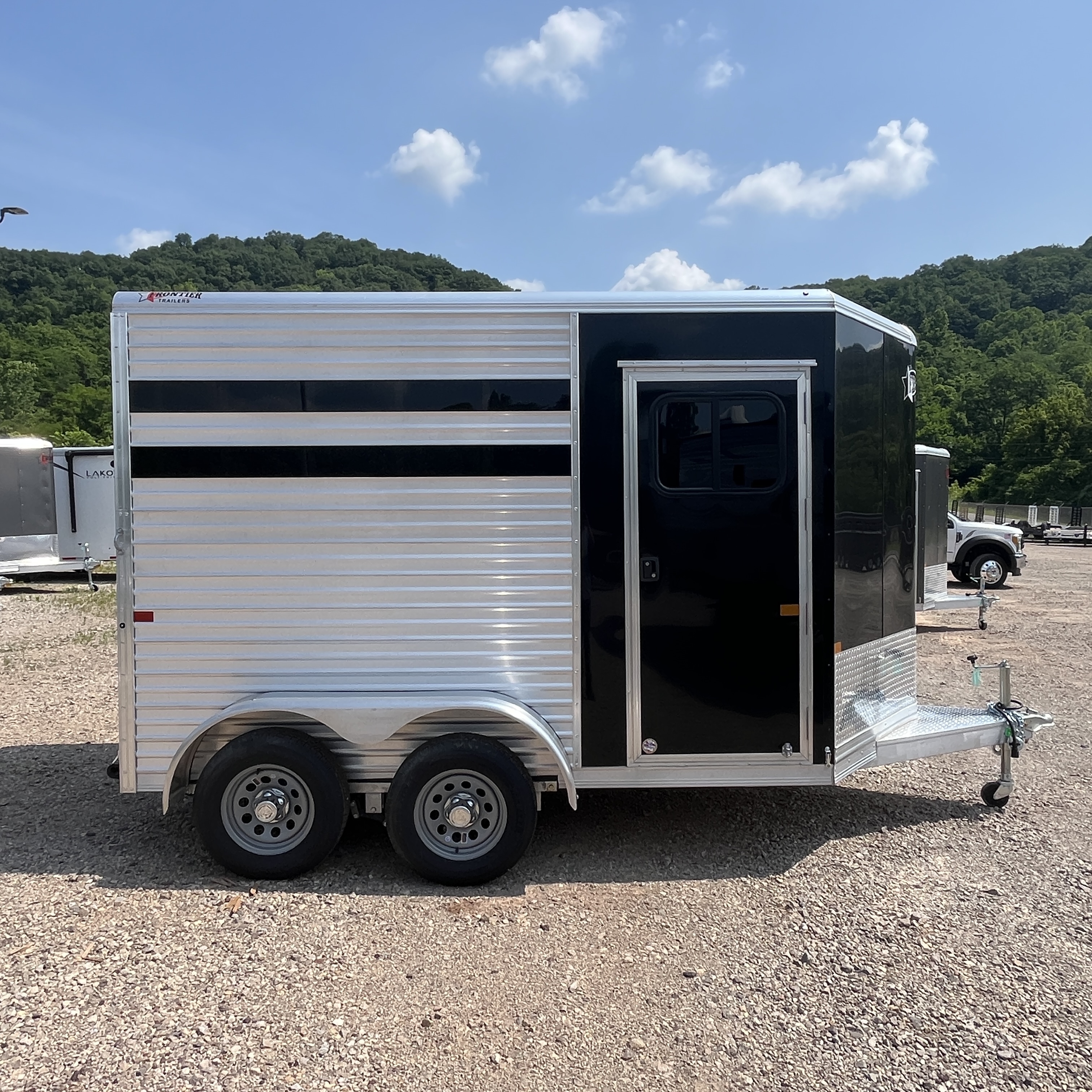

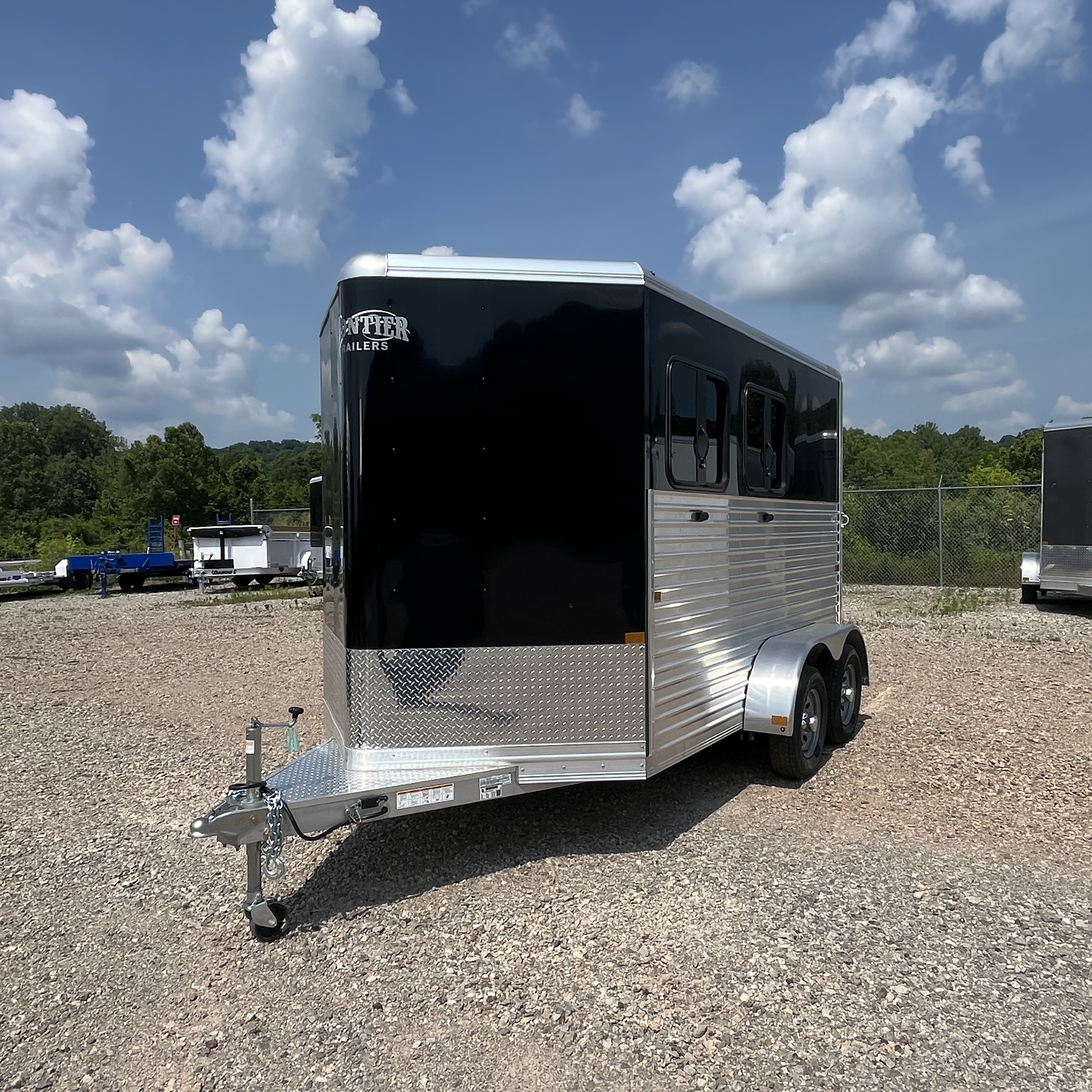

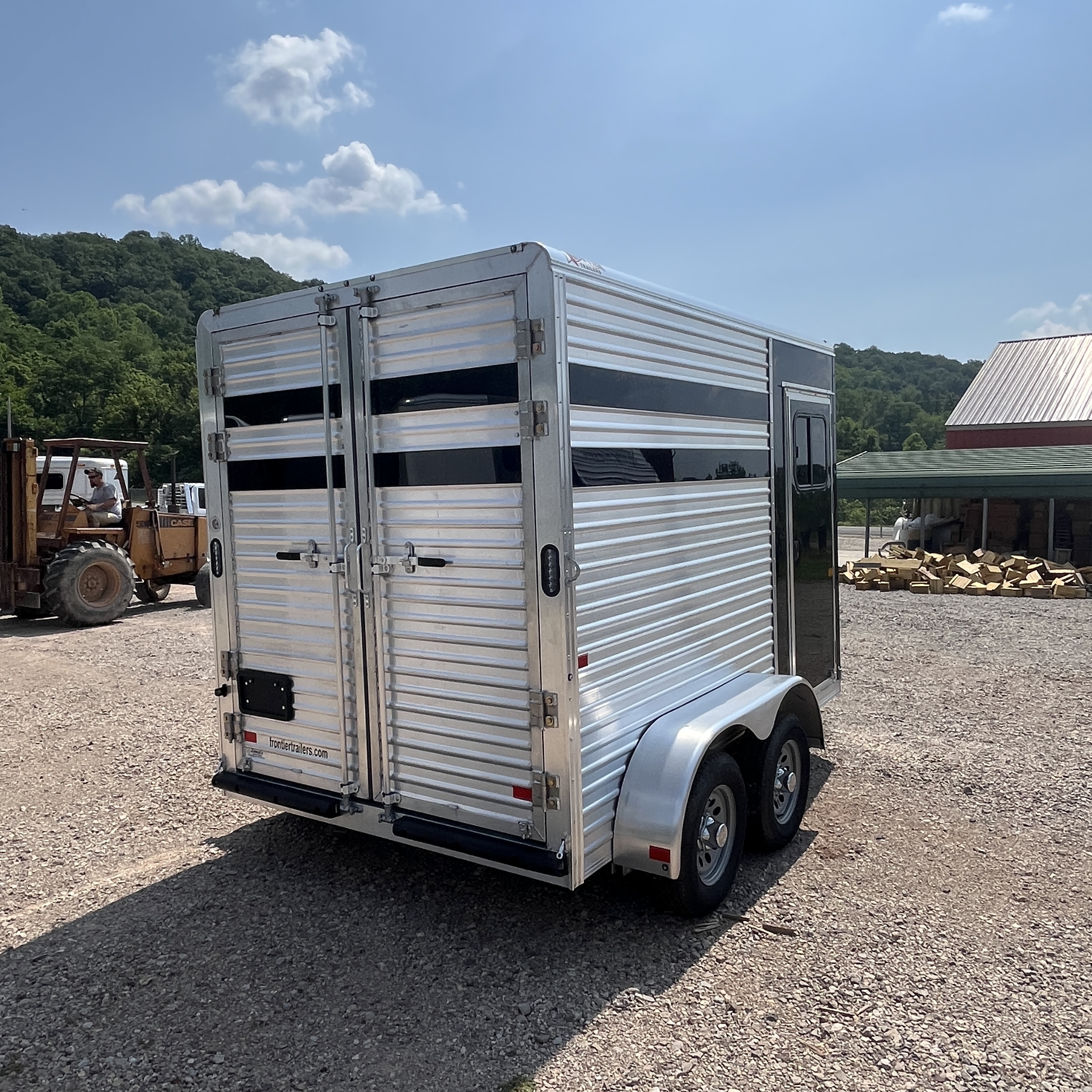

2025  Frontier Trailers  11' 2H PLX Slant Load Horse Trailer  - SD023741

Box Length: 11'

Box Width: 80"

Interior Height: 90"

V-Nose Construction w/ 24" DP Stone Guard

.024 Heavy Duty Radius Roof Skin

Coupler: Bumper Pull; 2-5/16"

Load Style: Slant Load - Step Up

Stall Width: 40-1/2"

Axles: 2-3500K Dexter Leaf Spring Braked Axles

Tires: Part # 60-00000165, 15" Gloss Black Mod, ST205/75R15

2"X8" Pressure Treated Decking

Extruded Aluminum Sides: Lower Half (D/S) & Full (C/S)

.040 Aluminum Skin: V-Nose, Driverside Top & Tack Wall/Door

"Improved" All Box Tube Aluminum Chassis

16" O/C - I-Beam Crossmembers

Radius Roof

Exterior Light: LED

Heavy Duty Rear Step up Rubber Bumper

----------

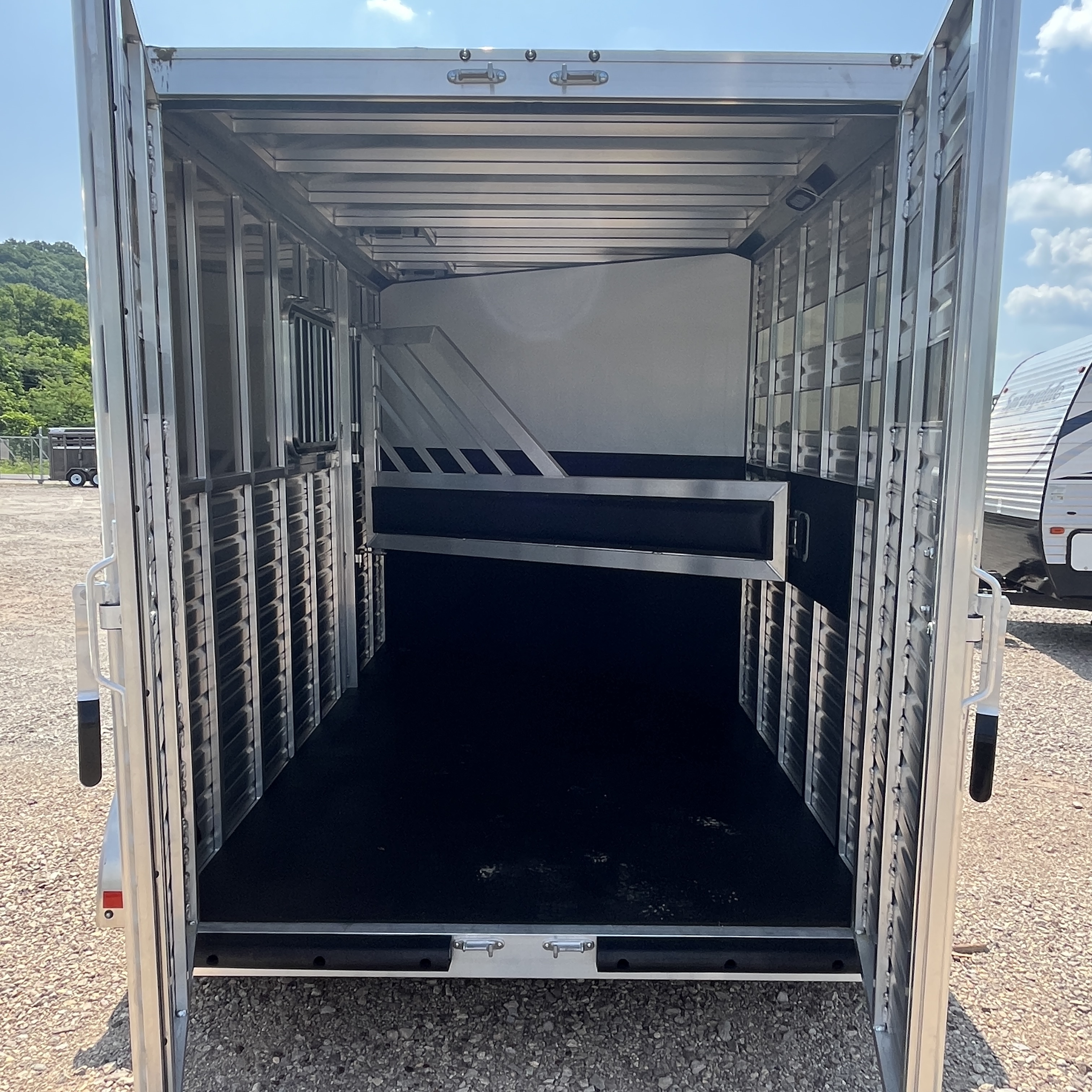

Horse Area:

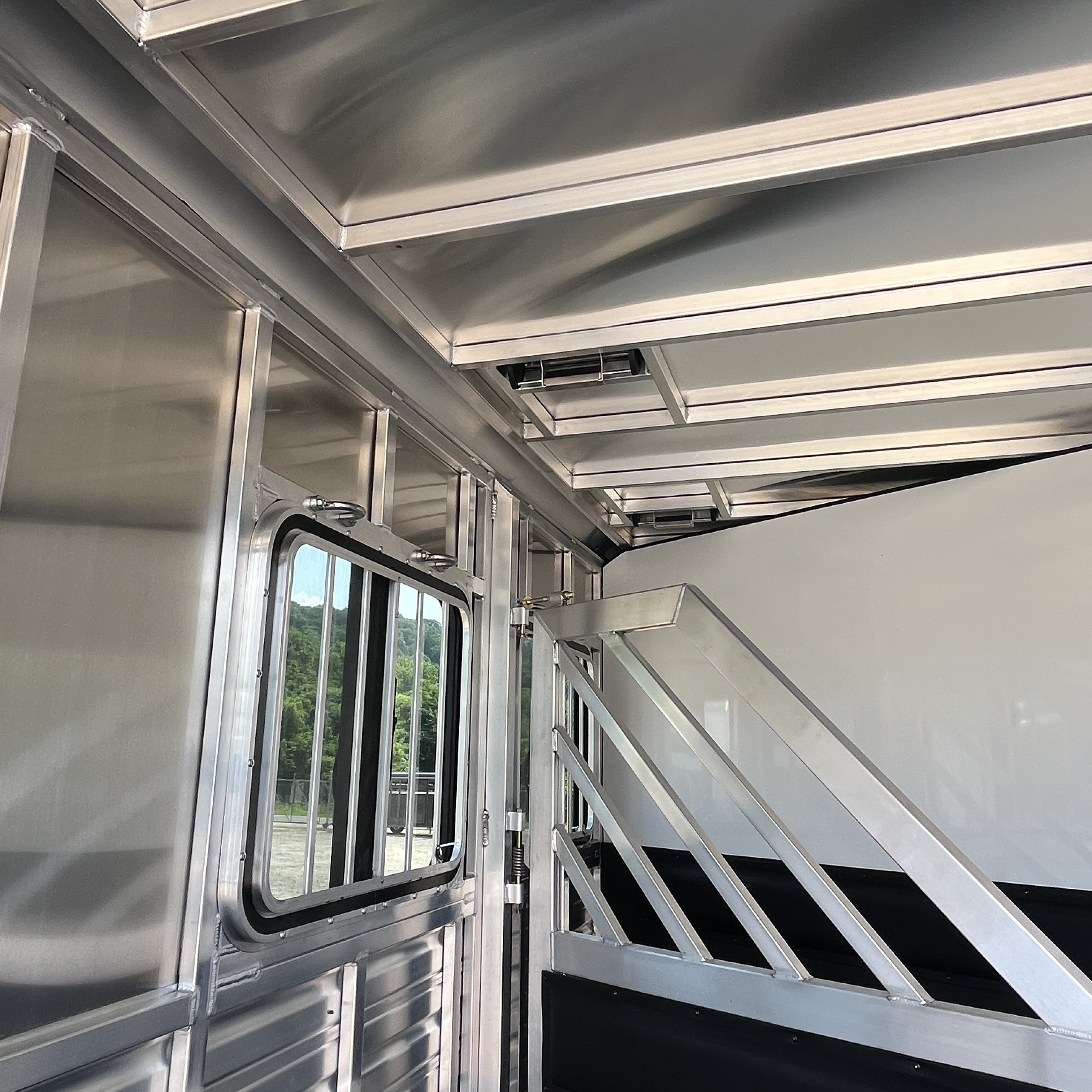

Dividers: Removable - "New" Jail Bar Head and Shoulder Divider

- w/ Pads (Custom Extrusion, New Latch System)

Feed Windows: 30" x 24" Radius Drop Down Feed Windows w/Integrated Face Bar (1 per stall)

Air Gaps: 2 x Air Gaps w/ Plexiglass

Floor Mats: 1/2" Rubber Mats

Heavy Duty Wall Liner on Tack Wall in Horse Area

Safety Chains:  Across Rear Opening

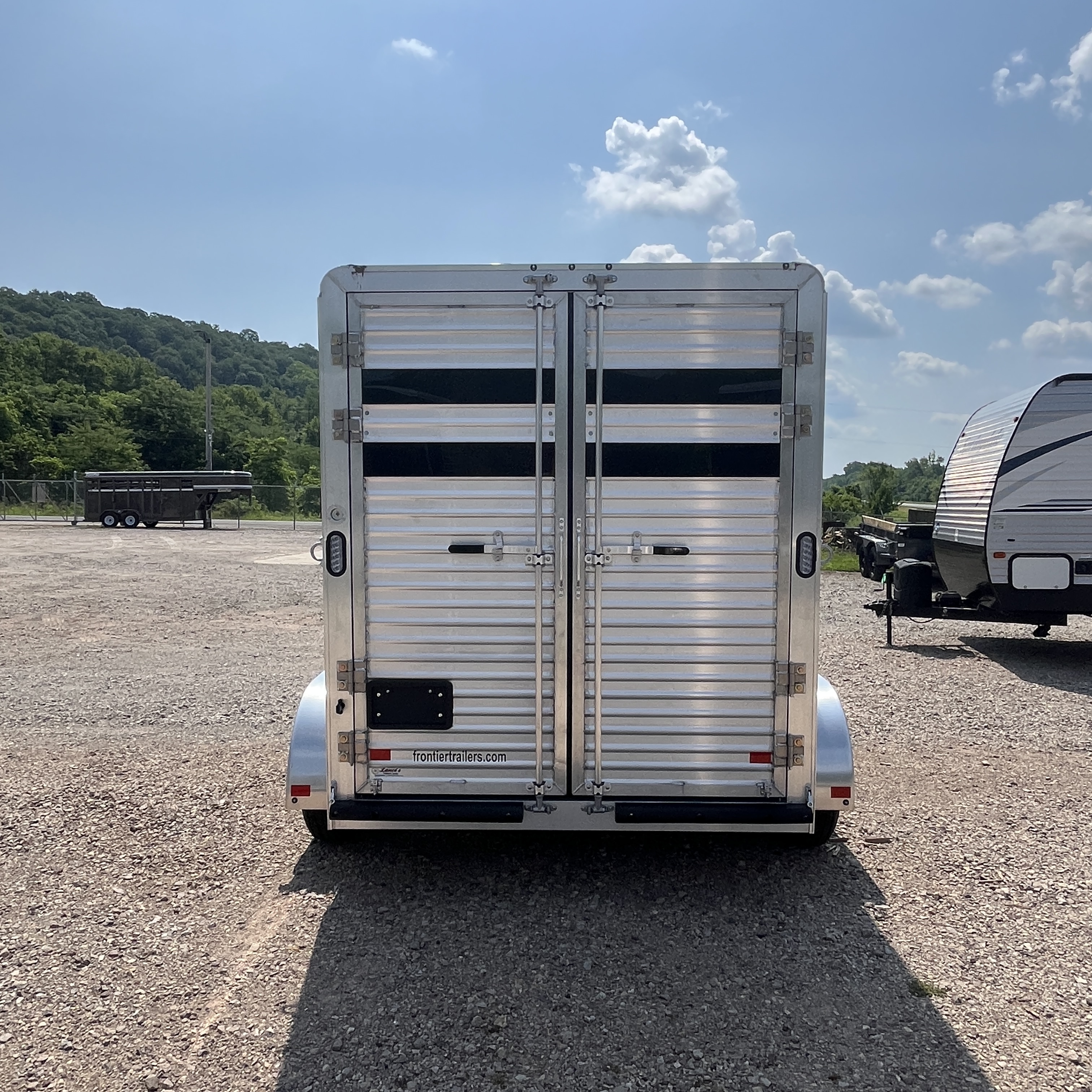

Rear Gate: Full Swing Rear Gate w/Air Gap and Plexiglass

Tie Rings: 2 Inside and 1 Outside per Horse

-Interior Location: On the Driverside Wall just abover the Windows

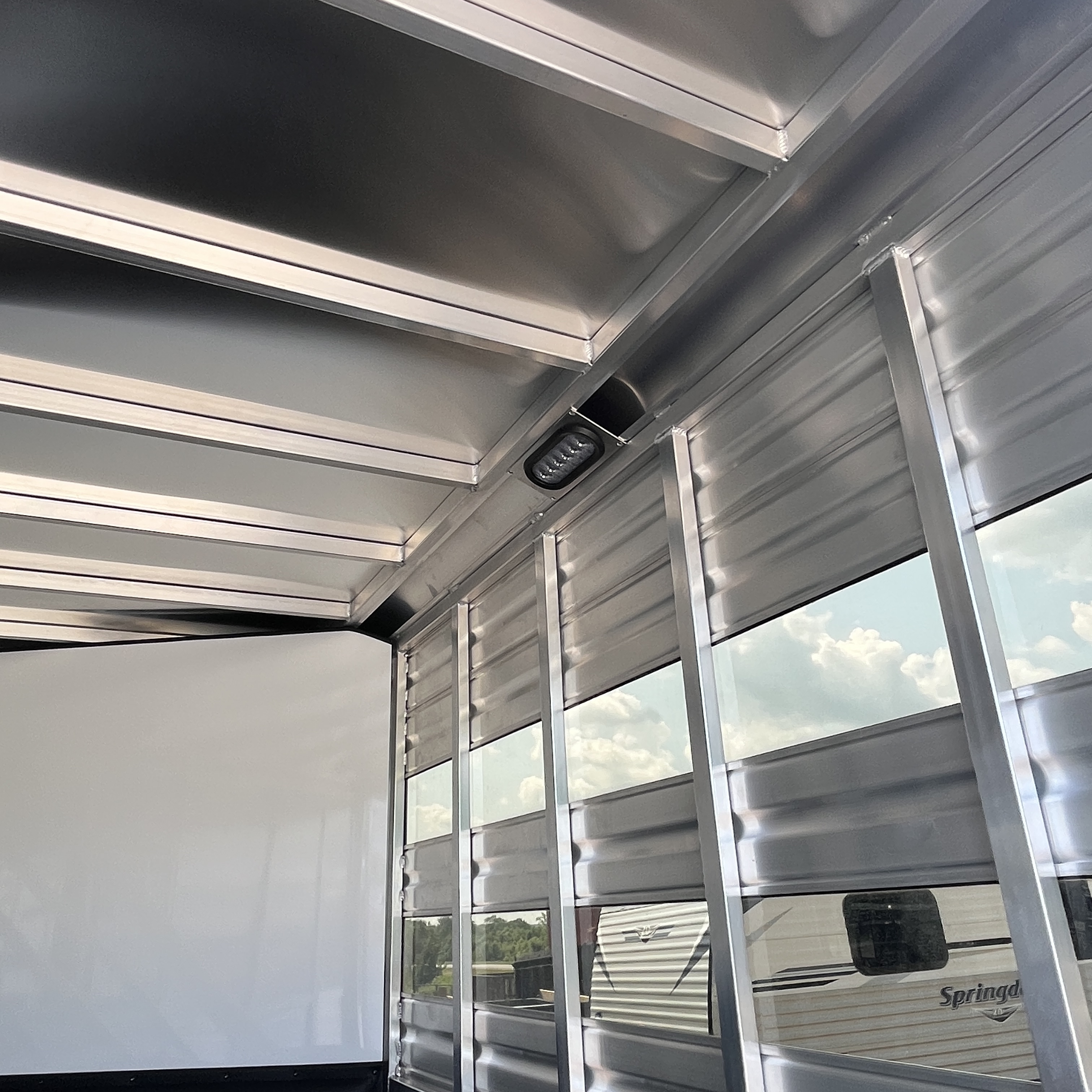

Interior Light: 1 LED Dome Light in Horse Area with Exterior Cup Switch

(1) Double Action Pop-Up Vent (per Stall)

----------

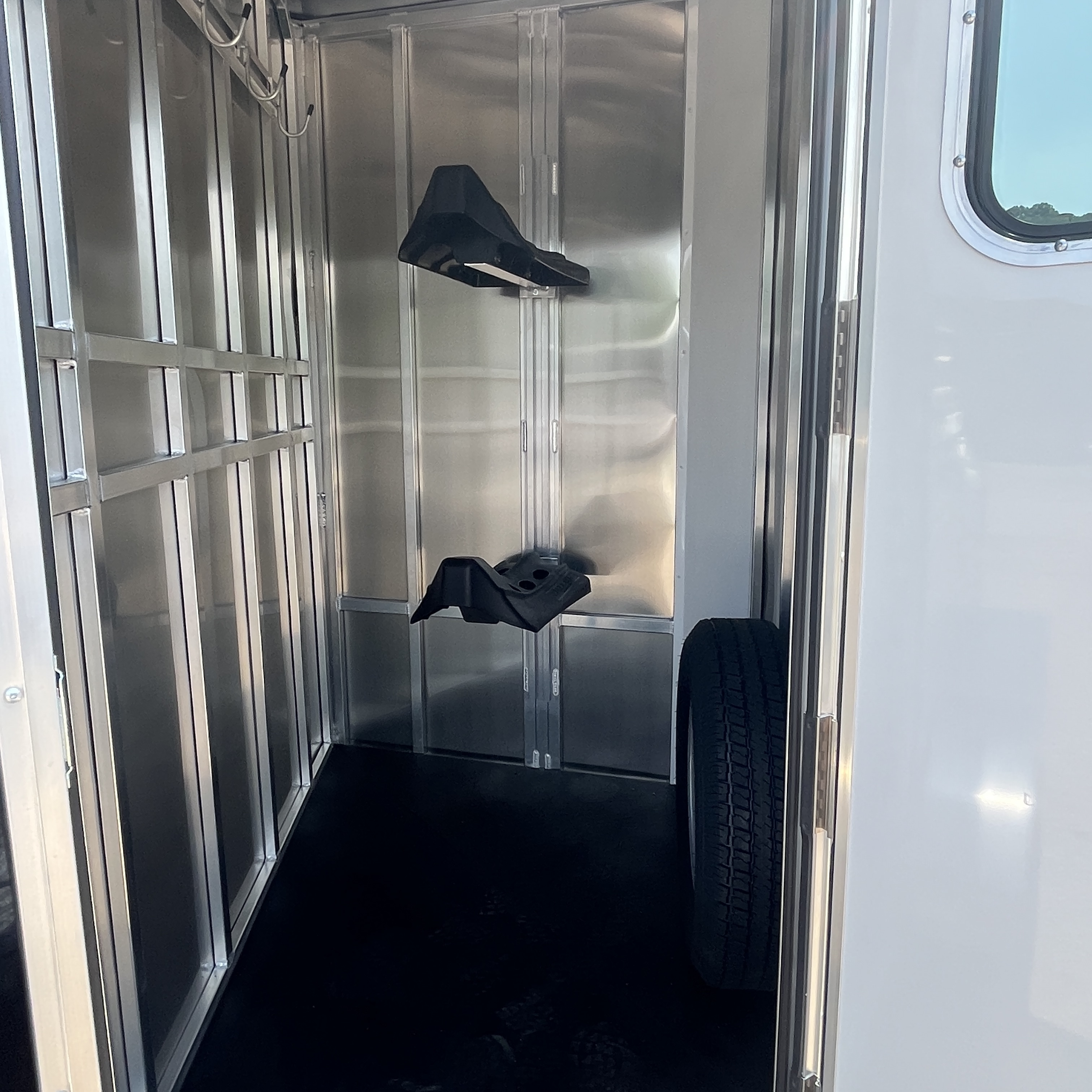

Front Tack Area:

Tack Wall: Permanent Tack Wall

Access: 32” x 72” Side Access Door w/Sliding Window - CURBSIDE

Floor Mats: 1/2" Rubber Mats

Interior Light: 1 LED Dome Light w/ Wall Switch

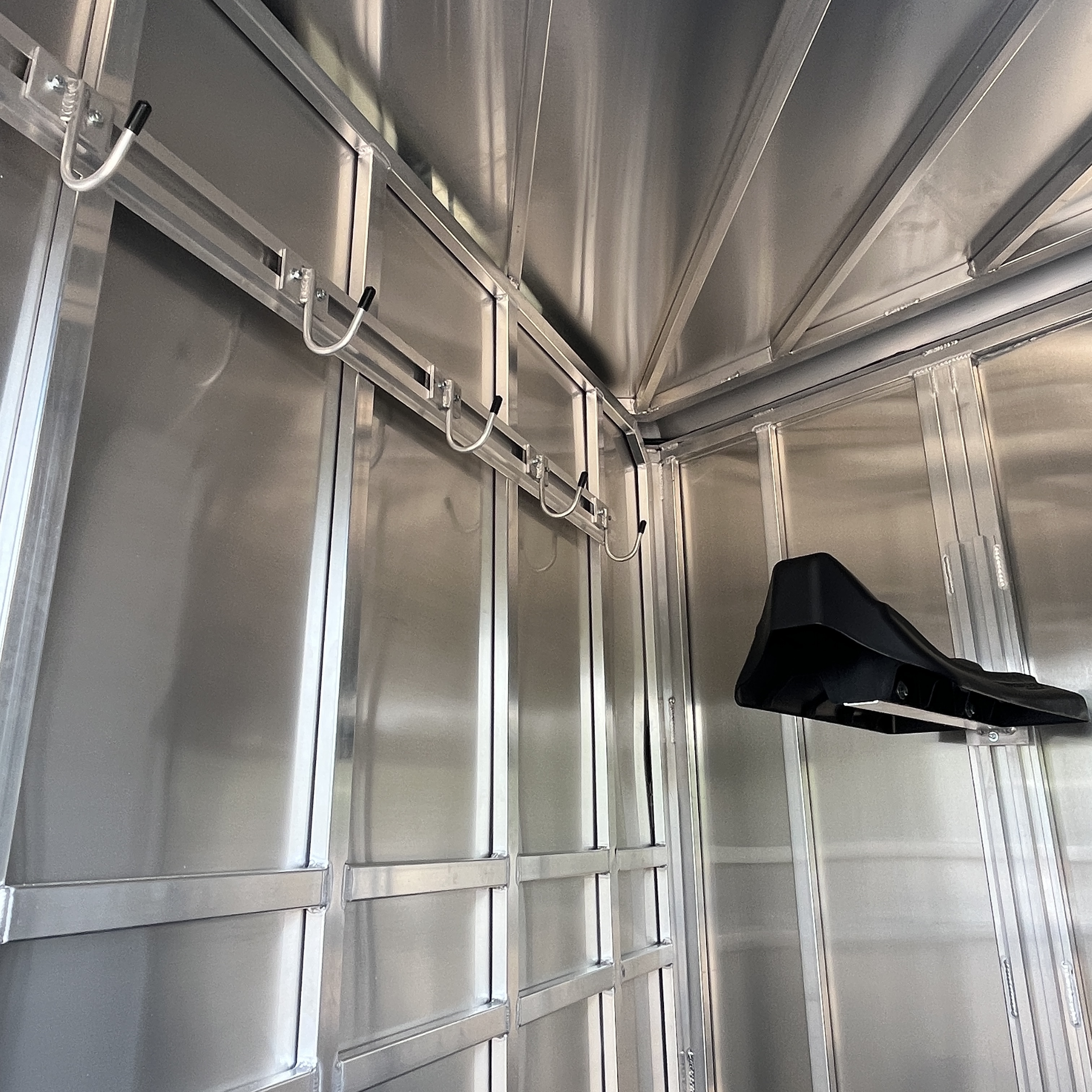

Hooks: 6 x Adjustable Bridle Hooks

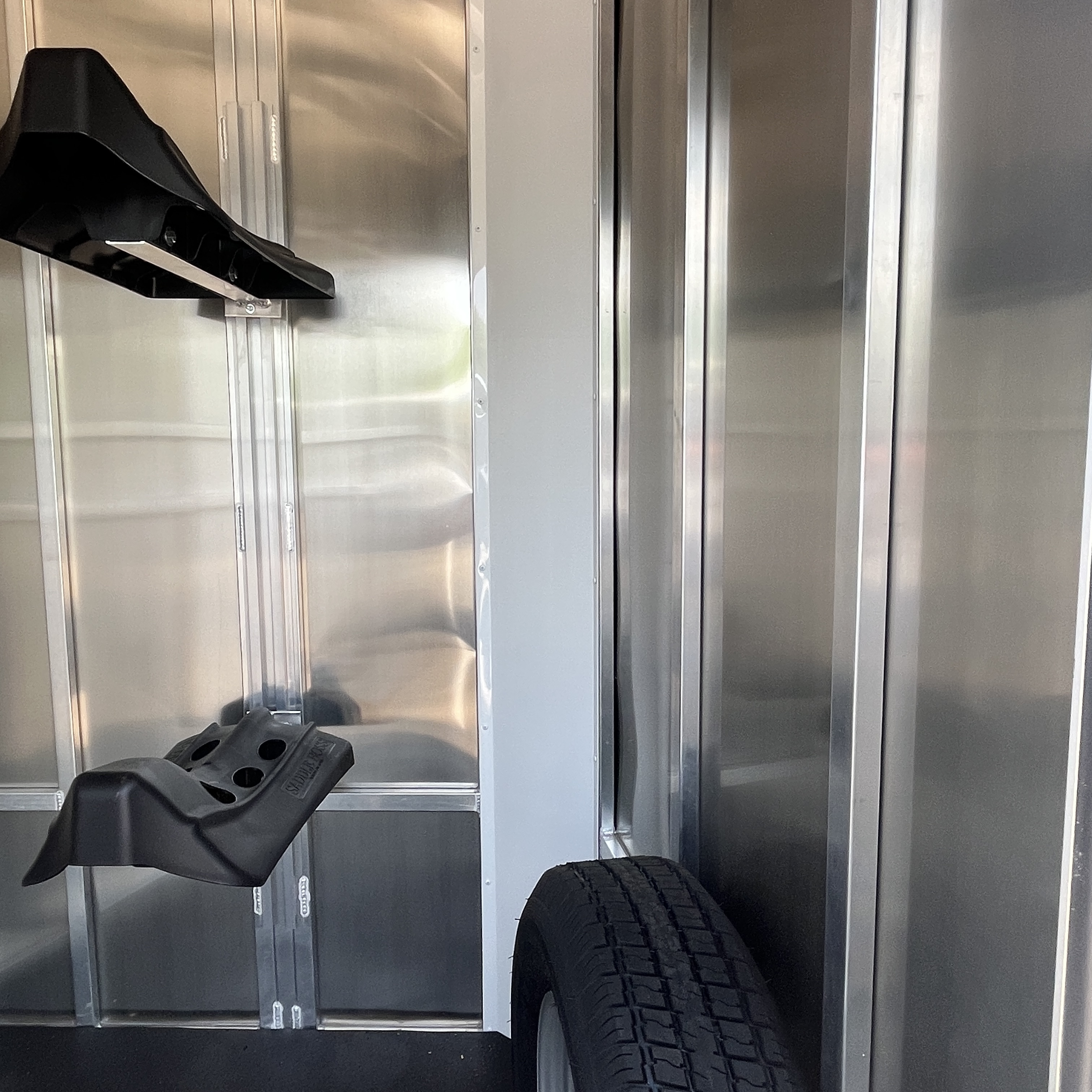

Saddle Racks: (1) Wall Mounted Saddle Rack (per Stall)

Floor Level Spare Tire Mount
