2025  Featherlite  3H-Slant Load Horse Trailer  - SC164583

Hitch Type Bumper pull
Load Type Slant
Trailer Width 7'0"
Trailer Length 17'5"
Inside Height 7'0"
Horse Stalls 3
Stall Width-43'
Dressing Room Size-24' short wall
Exterior Sides Black .040 rivetless aluminum exterior sheets with aluminum wave panels below

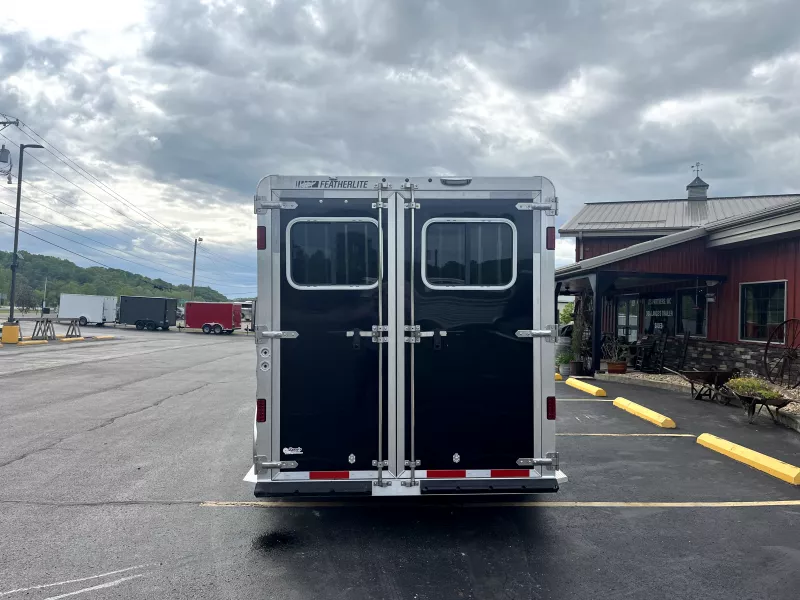

Rear Doors Double rear doors with windows, stainless double pipe hardware and no center post
Windows-Square cornered drop down feed door with drop down bars in front of each horse; 34 1/4x 22 window with bars behind each horse
Tack Area Folding rear tack wall lined on horse area side with white aluminum; Includes turf behind halter hooks in rear tack

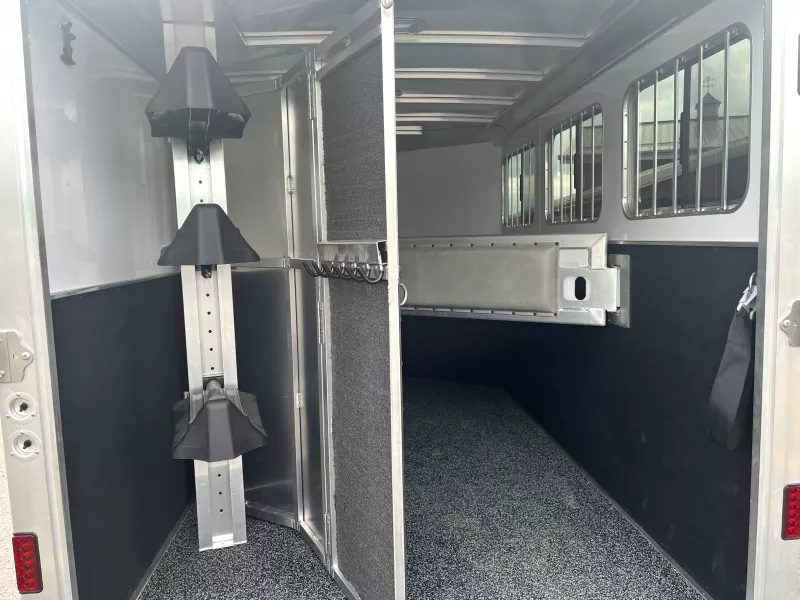

Stall Dividers Padded Air Flo slant stall dividers with shoulder separator & spring-loaded slam latch
Saddle Rack Adjustable saddle rack for each horse mounted on removable post. Extra location for post in dressing room
Walls Rubber up 44' on wall in front of horses; Rubber up 48' on wall behind horses; .090 aluminum up 48' on the wall in front and behind horses; 1 5/8' wall insulation; White .040 aluminum lining above the wall rubber
Doors 36'x 74" square camper door with window & deadbolt with Screen Door
Floor/Floor Mats Easy Care Flooring
Roof Vents One pop-up roof vent per horse
Interior Lights LED light strip in horse area; LED light strip in rear tack; LED light strip in dressing room; Lights are 12V/20W

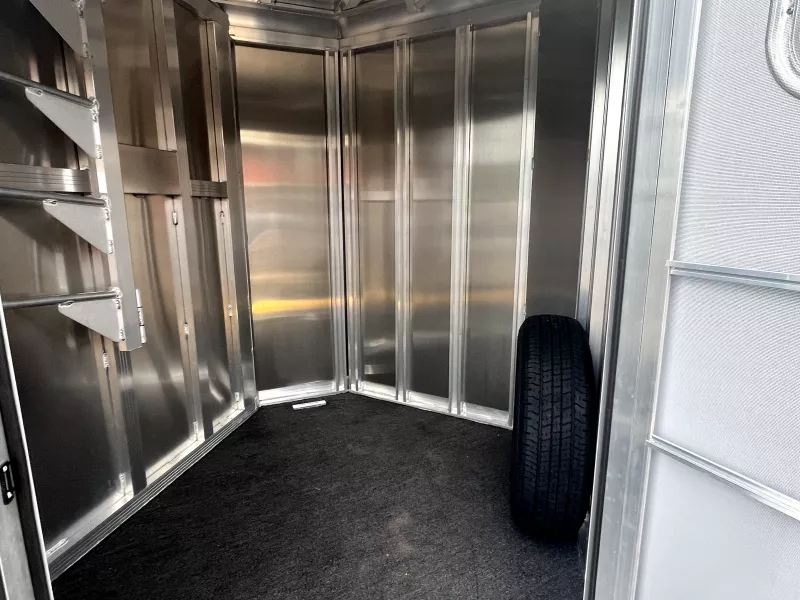

Dressing Room Clothes rod; Turf on floor; Brush tray; One swinging blanket bar; Aluminum halter hooks
Tie Rings Five inside tie rings per horse & 1 outside tie ring per horse per side
Axles 3H = 5200#

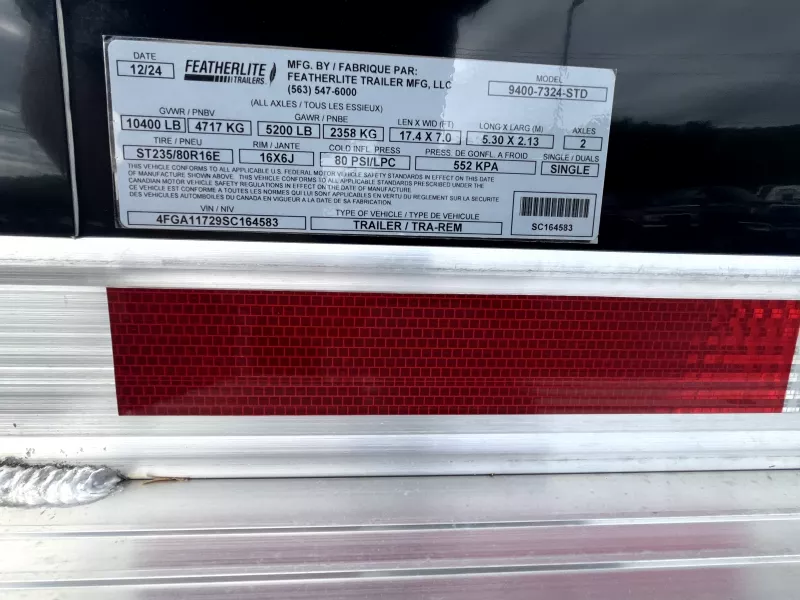

Tire/Rim 16' 6-hole aluminum wheels with Goodyear ST235/80R16 Load Range E tires (Qty: 4); Matching spare tire and tire carrier standard
Exterior Lights LED clearance lights and 4 LED stop/turn lights; LED load light above rear load door with switch at rear
Gravel Guard-Standard
Coupler
2 5/16' coupler; Crank type jack with wheel
Other
Rubber dock bumper; Aluminum running boards; 1 5/8' side posts
