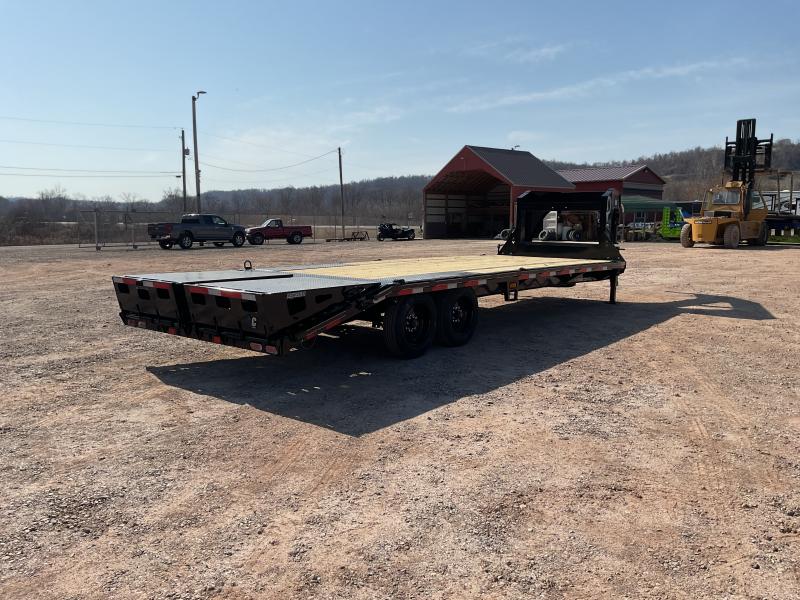

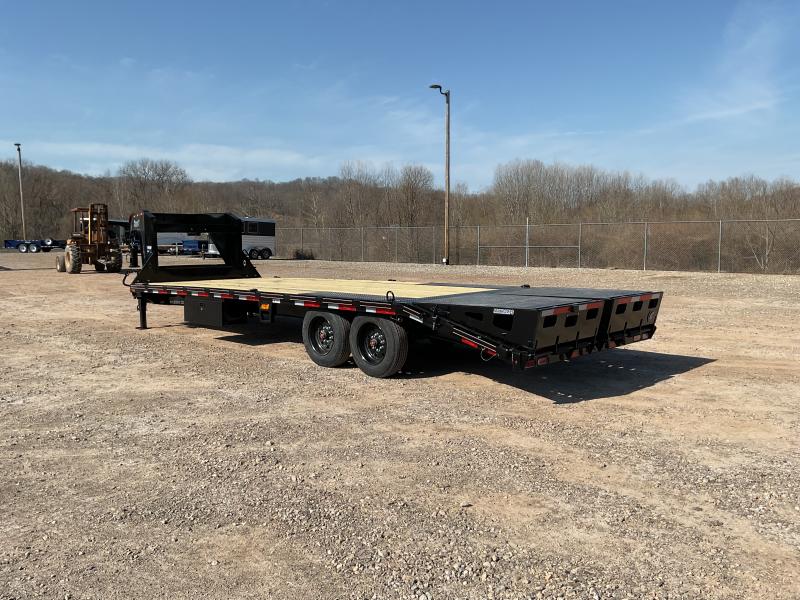

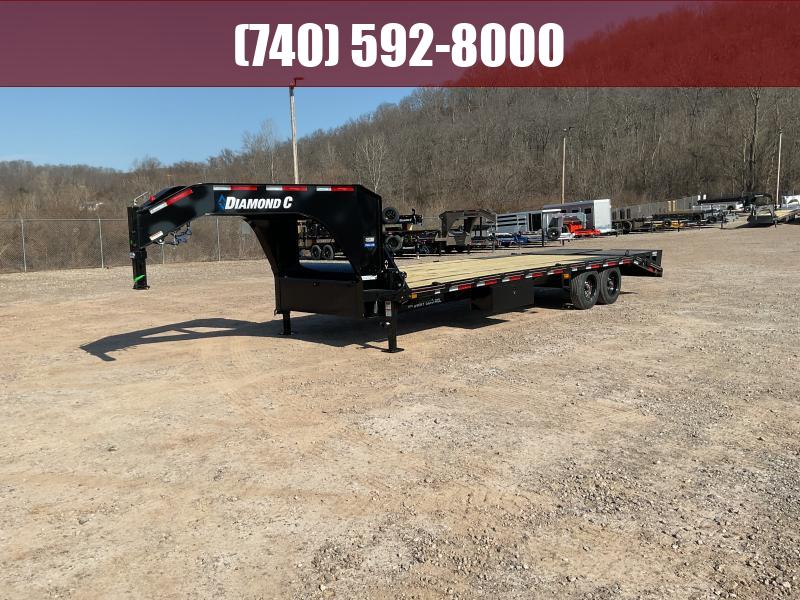

2025  Diamond C  Trailers 25' Max Ramps Flatbed Equipment Trailer  - S1298600

Length/Width - 25' x 102" MR
GVWR - 18,000 lb
Dove - 60" Dovetail with 2" x 2" x 1/8" Angle Cleats (Max Ramps)
Axles - 2 - 8,000 lb Oil-Bath
Brakes - Electric Drum
Suspension - Slipper Roller
Pull Type - 12" Engineered Gooseneck
Frame - 14" Engineered Beam 2.0
Jack - 2 - 12,000 lb Drop-Leg Jacks
Paint Type - DM Difference Maker Coating System
Paint Color - Onyx Black
Floor - 2" Treated Lumber
Cross-Members - 3" I-Beam on 12" Centers w/ Formed Gussets
Coupler - 2-5/16" Ball - 30,000 lb Square Load Leveler
Storage - Diamond Plate Neck Box w/ Gas Shock Assisted Lid
Storage - 14" x 14" x 42" Underslung Box
Deck on the Neck - None
Winch - Winch Tray
Lace Rail - 5" Channel
Stake Pockets - 2" x 3/8" Rub Rail w/ Stake Pockets & Pipe Spools
Slide Track & Ratchets - No Slide Track
Tie Downs - 5/8" D-Rings 6
Steps - Front Retractable & Mid-Turn
Lights - All LED Lights
Sway Control - Add Sway Control Pipe
Wiring - Sealed Wiring Harness

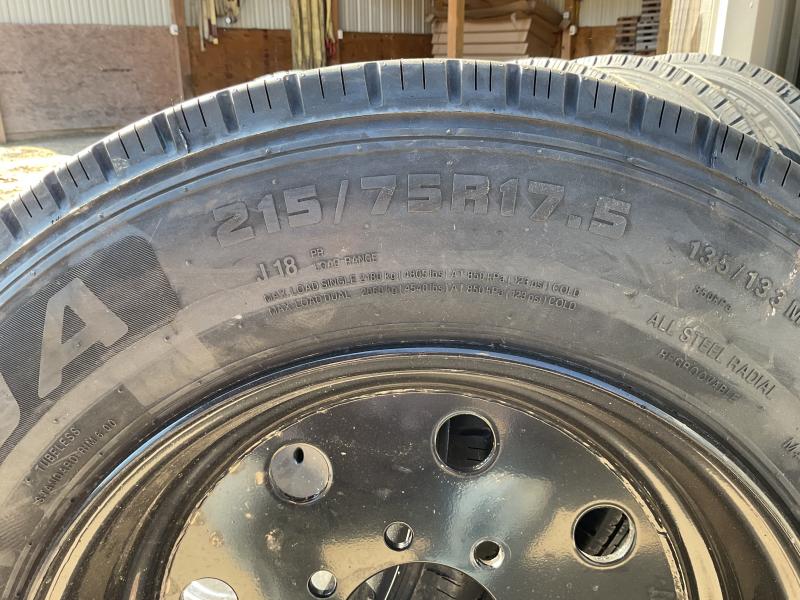

Tire Size - 215/75R17.5 18 Ply Radial
Wheel Color - Black
Spare Mount - Under-Frame Spare Mount
Spare Tire - Add Matching Spare Tire for $405
