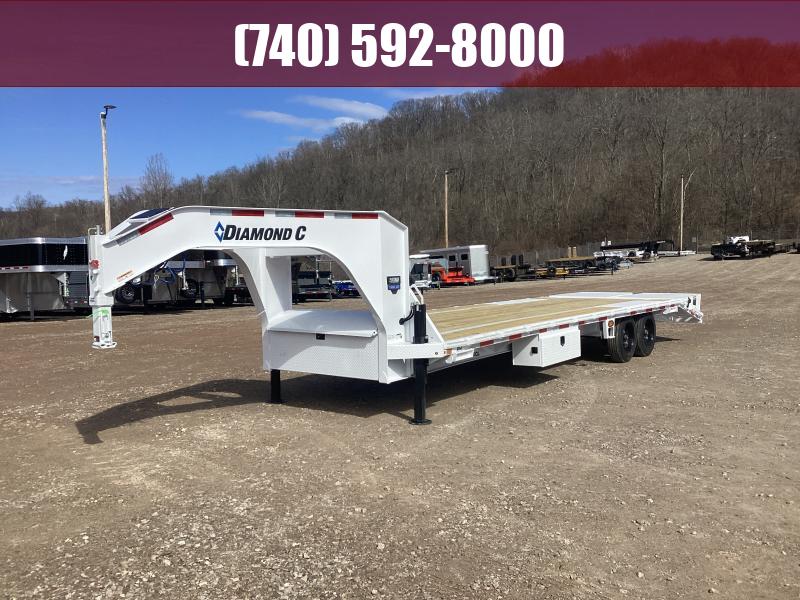

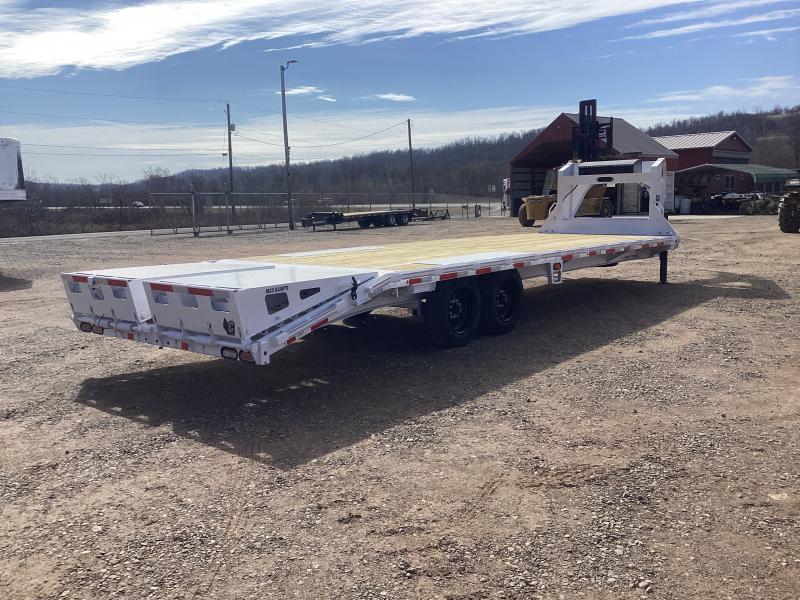

2025  Diamond C  Diamond C 28' (23+5) Flatbed Equipment Trailer  - S1298365

Loading Style - Max Ramps
Length/Width - 28' x 102" MR
GVWR - 15,500 lb
Dove - 60" Dovetail with 2" x 2" x 1/8" Angle Cleats (Max Ramps)
Axles - 2 - 7,000 lb Super Lube
Brakes - Electric Drum
Suspension - Slipper Roller
Pull Type - 12" Engineered Gooseneck
Frame - 14" Engineered Beam 2.0
Jack - 2 - 20,000 lb Hydraulic Jacks
Paint Type - DM Difference Maker Coating System
Paint Color - Arctic White
Floor - 2" Treated Lumber
Cross-Members - 3" I-Beam on 12" Centers w/ Formed Gussets
Coupler - 2-5/16" Ball - 30,000 lb Square Load Leveler
Storage - Diamond Plate Neck Box w/ Gas Shock Assisted Lid
Storage - Neck Storage Box in Winch Tray
Deck on the Neck - None
Winch - Winch Tray
Battery/Charger - Solar Charging System, 7 watt
Lace Rail - 5" Channel
Stake Pockets - 2" x 3/8" Rub Rail w/ Stake Pockets & Pipe Spools
Slide Track & Ratchets - No Slide Track
Steps - Front Retractable & Mid-Turn
Steps - Extra Retractable Steps (pair)
Lights - All LED Lights
Lights - Extra 3/4" Clearance Lights 4
Sway Control - Add Sway Control Pipe
Wiring - Sealed Wiring Harness
Tire Size - 215/75R17.5 18 Ply Radial
Wheel Color - Black
Spare Mount - Under-Frame Spare Mount
Spare Tire - Add Matching Spare Tire For $405.00
