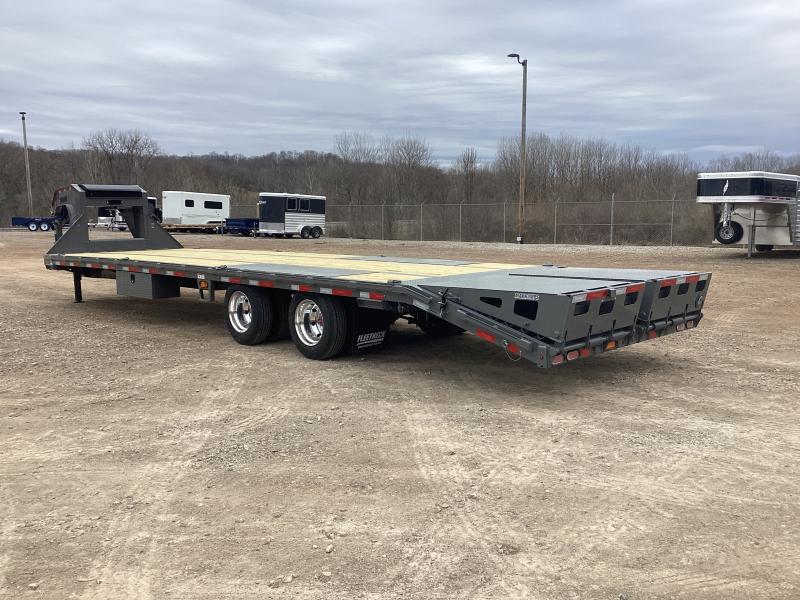

2025  Diamond C  32' Flatbed Equipment Trailer  - S1297840

Loading Style - Max Ramps
Length/Width - 32' x 102" MR
GVWR - 25,000 lb
Dove - 60" Dovetail with 2" x 2" x 1/8" Angle Cleats (Max Ramps)
Axles - 2 - 10,000 lb General Duty, Oil Bath
Brakes - Electric Drum standard
Suspension - Hutch Heavy Duty Adjustable Suspension
Pull Type - 12" Engineered Gooseneck
Frame - 16" Engineered Beam 2.0
Jack - 2 - 20,000 lb Hydraulic Jacks
Paint Type - DM Difference Maker Coating System
Paint Color - Cement Gray
Floor - 2" Treated Lumber
Cross-Members - 3" I-Beam on 12" Centers w/ Formed Gussets
Coupler - 2-5/16" Ball - 30,000 lb Square Load Leveler
Storage - Diamond Plate Neck Box w/ Gas Shock Assisted Lid
Storage - Neck Storage Box in Winch Tray
Winch - Winch Tray
Battery/Charger - Solar Charging System, 7 watt
Lace Rail - 6" Channel Lace Rail
Stake Pockets - 2" x 3/8" Rub Rail w/ Stake Pockets & Pipe Spools
Slide Track & Ratchets - No Slide Track
Tie Downs - 5/8" D-Rings 8
Steps - Front Retractable & Mid-Turn
Steps - Extra Retractable Steps (pair)
Lights - All LED Lights
Lights - Extra 3/4" Clearance Lights 6
Lights - Flashing Caution LED Light on Rear
Sway Control - Standard on 30 - 40' models
Wiring - Sealed Wiring Harness

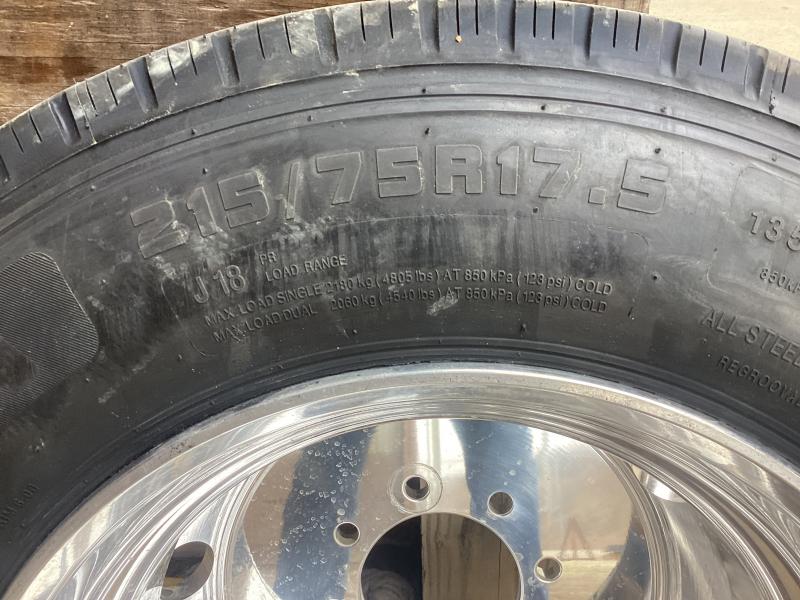

Tire Size - 215/75R17.5 18 Ply Radial, Dually
Wheel Color - Aluminum Outer Wheels
Spare Mount - Under-Frame Spare Mount
Spare Tire - Add Spare Tire for $405
