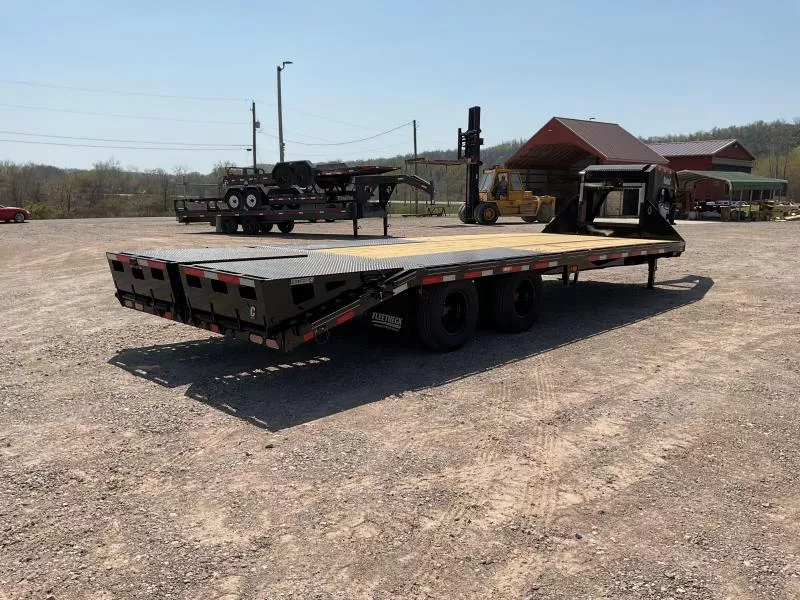

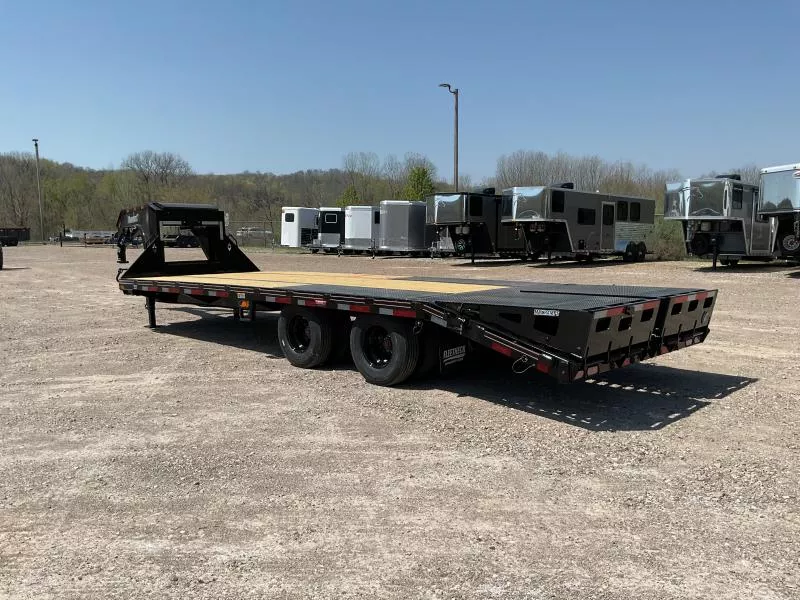

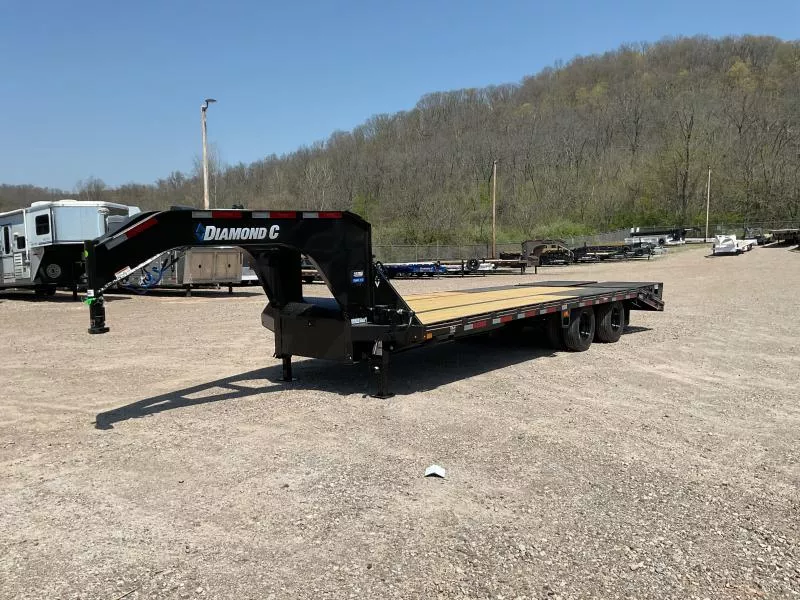

2025  Diamond C  25' Flatbed Equipment Trailer  - S1300144

Loading Style - Max Ramps
Length/Width - 25' x 102" MR
GVWR - 25,000 lb
Dove - 60" Dovetail with 2" x 2" x 1/8" Angle Cleats (Max Ramps)
Axles - 2 - 10,000 lb General Duty, Oil Bath
Brakes - Electric Drum
Suspension - 5-Leaf Slipper Springs, 48" Spread
Pull Type - 12" Engineered Gooseneck
Frame - 16" Engineered Beam 2.0
Jack - 2 - 12,000 lb Drop-Leg Jacks
Paint Type - DM Difference Maker Coating System
Paint Color - Carbon Metallic Gray
Floor - 2" Treated Lumber
Cross-Members - 3" I-Beam on 16" Centers w/ Formed Gussets
Coupler - 2-5/16" Ball - 25,000 lb RAM Coupler
Storage - Diamond Plate Neck Box w/ Gas Shock Assisted Lid
Storage - Neck Storage Box in Winch Tray
Deck on the Neck - None
Winch - Winch Tray
Lace Rail - 6" Channel Lace Rail
Stake Pockets - 2" x 3/8" Rub Rail w/ Stake Pockets & Pipe Spools
Slide Track & Ratchets - No Slide Track
Steps - Front Retractable & Mid-Turn
Lights - All LED Lights
Wiring - Sealed Wiring Harness

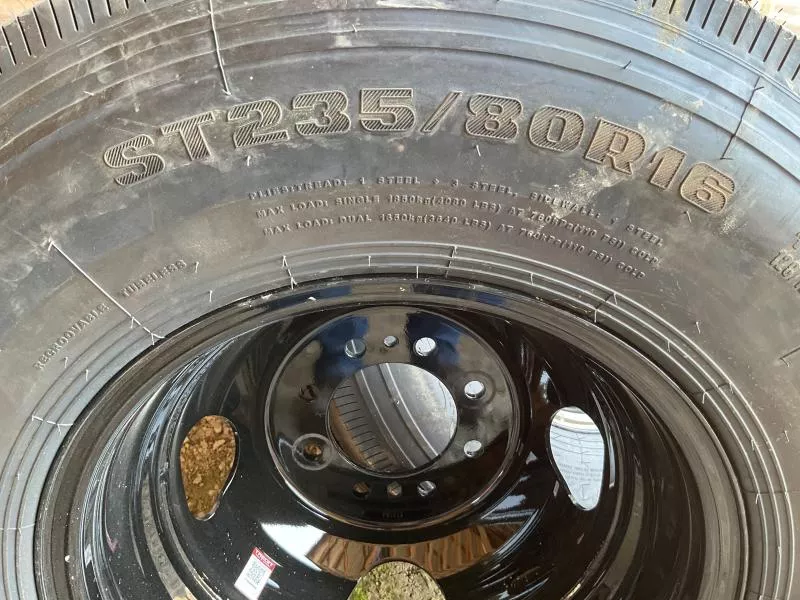

Tire Size - 235/80R16 14 Ply Radial, Dually
Wheel Color - Black
Spare Mount - Under-Frame Spare Mount
Spare Tire - Add Spare Tire For $335.00
